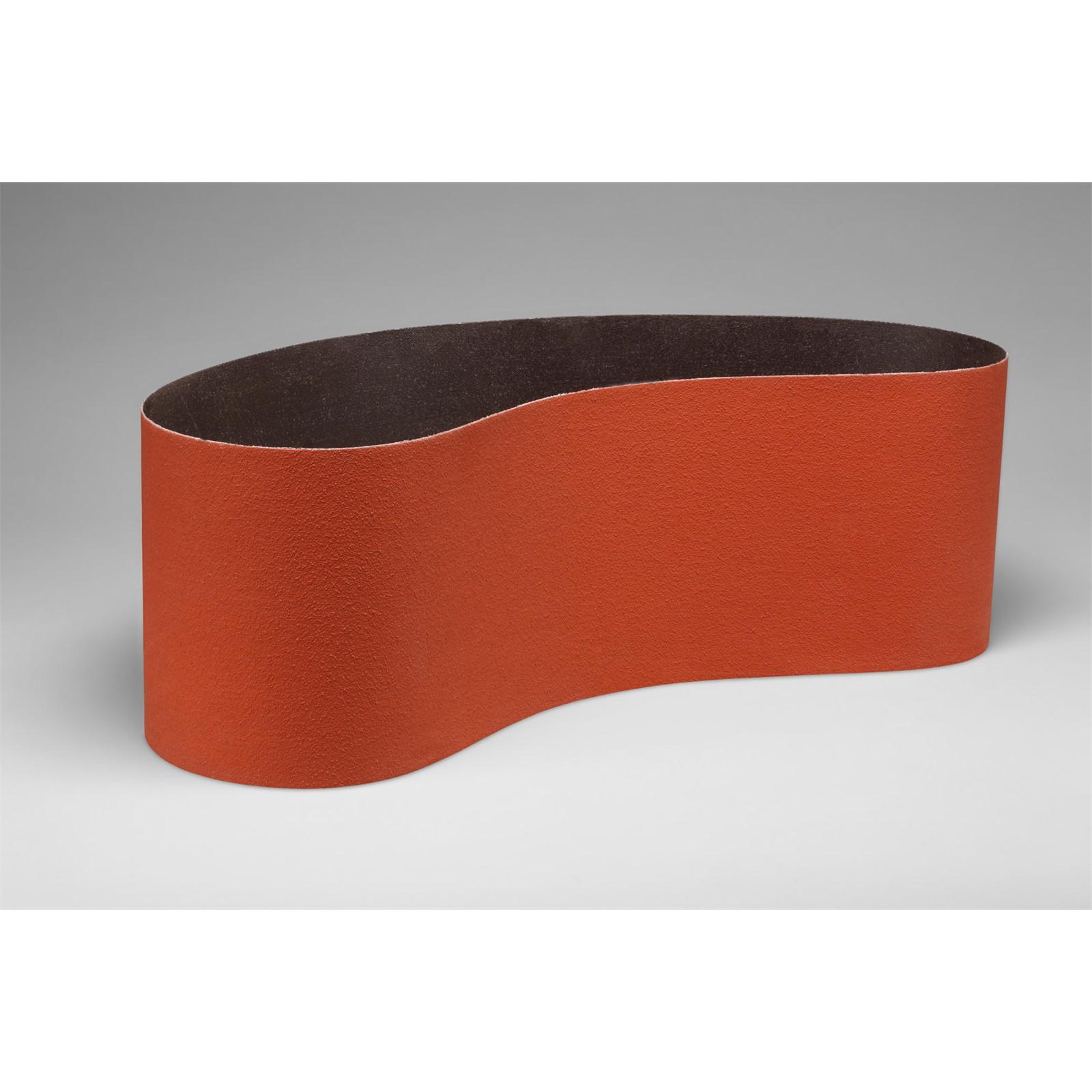

3M 7010308210 Coated Abrasive Belt P120 Grit 118x6 Inch

Product Description

The 3M 7010308210 is a coated abrasive belt designed for demanding stock removal and metal finishing applications. It combines 3M Ceramic Abrasive Grain with aluminum oxide in a blend that cuts faster and lasts longer than straight aluminum oxide belts. The belt measures 118 inches in length and 6 inches in width, making it well suited to wide-contact industrial grinding machines. A durable resin bond holds the grain firmly to a heavyweight polyester cloth backing rated for high-pressure operation. Grinding aid is integrated into the construction to reduce heat buildup during stainless steel work. Licensed HVAC and fabrication shops use this belt when throughput and belt life per job are the controlling factors.

This belt is intended for metal finishing environments where heat-sensitive alloys, stainless steel, and high-stock-removal requirements demand a belt that can run under sustained pressure. It performs dry or with lubricant, giving operators flexibility when working on ferrous and non-ferrous metals. The P120 grit designation places it in the fine-intermediate range, suitable for blending, finishing, and light deburring after coarser stock removal passes. Minimum order quantity is 20 belts per the supplier unit of measure.

Key Features

• Ceramic and aluminum oxide grain blend for faster cutting and extended belt life versus straight aluminum oxide
• Integrated grinding aid reduces heat and improves performance on stainless steel
• Heavyweight polyester cloth backing supports high-pressure grinding without backing failure
• Resin bond resists heat deterioration to extend usable belt life
• Runs wet or dry for application flexibility
• P120 grit for fine-intermediate metal finishing and blending

Compatibility

Designed as an OEM-style coated abrasive belt replacement for industrial belt grinders and wide-contact finishing machines that accept 118-inch by 6-inch abrasive belts.

Installation Notes

Belt installation should be performed by qualified personnel following the grinder manufacturer's tracking and tensioning procedures. Disengage and lock out power to the machine before mounting or removing a belt. Inspect the contact wheel and platen for wear or damage before installing a new belt. Run the machine unloaded briefly after mounting to confirm proper belt tracking before applying workpiece pressure.

Technical Specifications

• Grit: P120
• Abrasive Material: Ceramic Aluminum Oxide Blend
• Belt Length: 118 inches
• Belt Width: 6 inches
• Backing Type: Heavyweight Polyester Cloth
• Bond Type: Resin
• Application: Coated, Dry or Wet
• Color: Orange
• Weight: 1.2 pounds
• Minimum Order Quantity: 20 Each
• UPC: 00051115269417

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010308210
