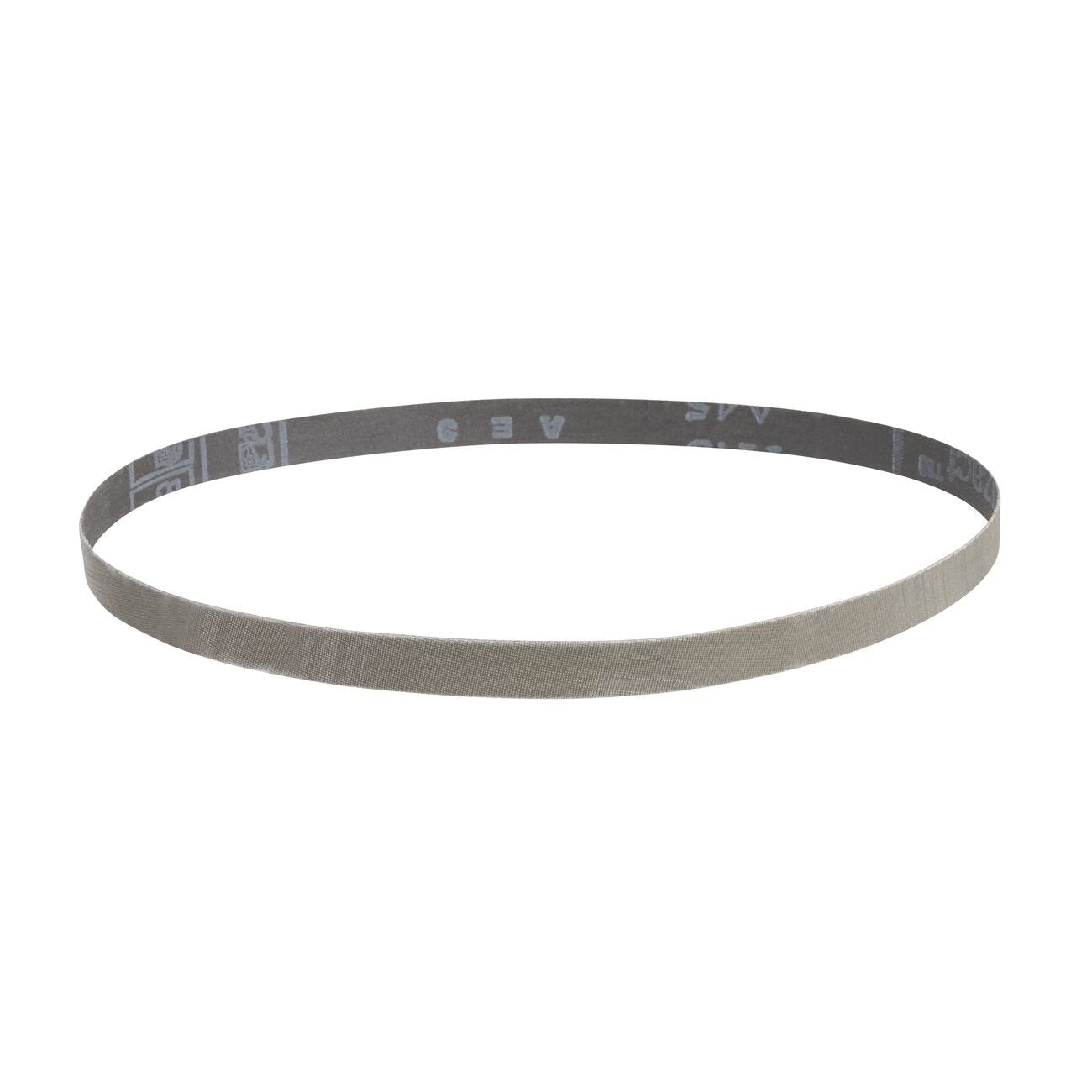

3M 7010307932 Trizact 237AA Abrasive Belt 30x0.5 in

Product Description

The 3M 7010307932 is a Trizact 237AA coated abrasive belt engineered for intermediate finishing and fine polishing in metalworking and fabrication applications. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear, fresh cutting edges are continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to finish. The belt measures 30 inches in length and 1/2 inch in width, making it suitable for narrow belt finishing equipment used in production and precision grinding environments.

This belt is designed for use in robotic and automated finishing systems as well as manual narrow-belt machines. It is well suited for intermediate stock removal, surface refinement, and fine polishing steps that precede plating or buffing operations. Metal fabricators, industrial maintenance technicians, and precision finishing shops rely on this belt where repeatable surface finish is critical across high-volume production runs or contoured workpieces.

Key Features

• Microreplication technology forms aluminum oxide particles into self-sharpening pyramids that continuously expose fresh mineral
• Runs cooler than conventional abrasives, reducing heat buildup and workpiece distortion risk
• X-weight cloth backing provides flexibility for consistent finishes over contoured surfaces
• Three-dimensional abrasive structure delivers uniform finish quality throughout the full belt life
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on narrow belt finishing machines and robotic grinding systems that accept 30-inch by 1/2-inch abrasive belts for metalworking and precision finishing applications.

Installation Notes

Installation should be performed by qualified machine operators or industrial maintenance technicians familiar with abrasive belt equipment. Power down and lock out the belt grinder or finishing machine before mounting or removing any abrasive belt. Confirm belt tracking and tension according to the equipment manufacturer guidelines before resuming operation. Inspect the belt for damage prior to each use and never operate a torn or delaminated belt.

Technical Specifications

• Belt Length: 30 inches
• Belt Width: 0.5 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Technology: Trizact Microreplication
• Color: Gray
• Unit of Measure: Each
• Weight: 0.02 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010307932
