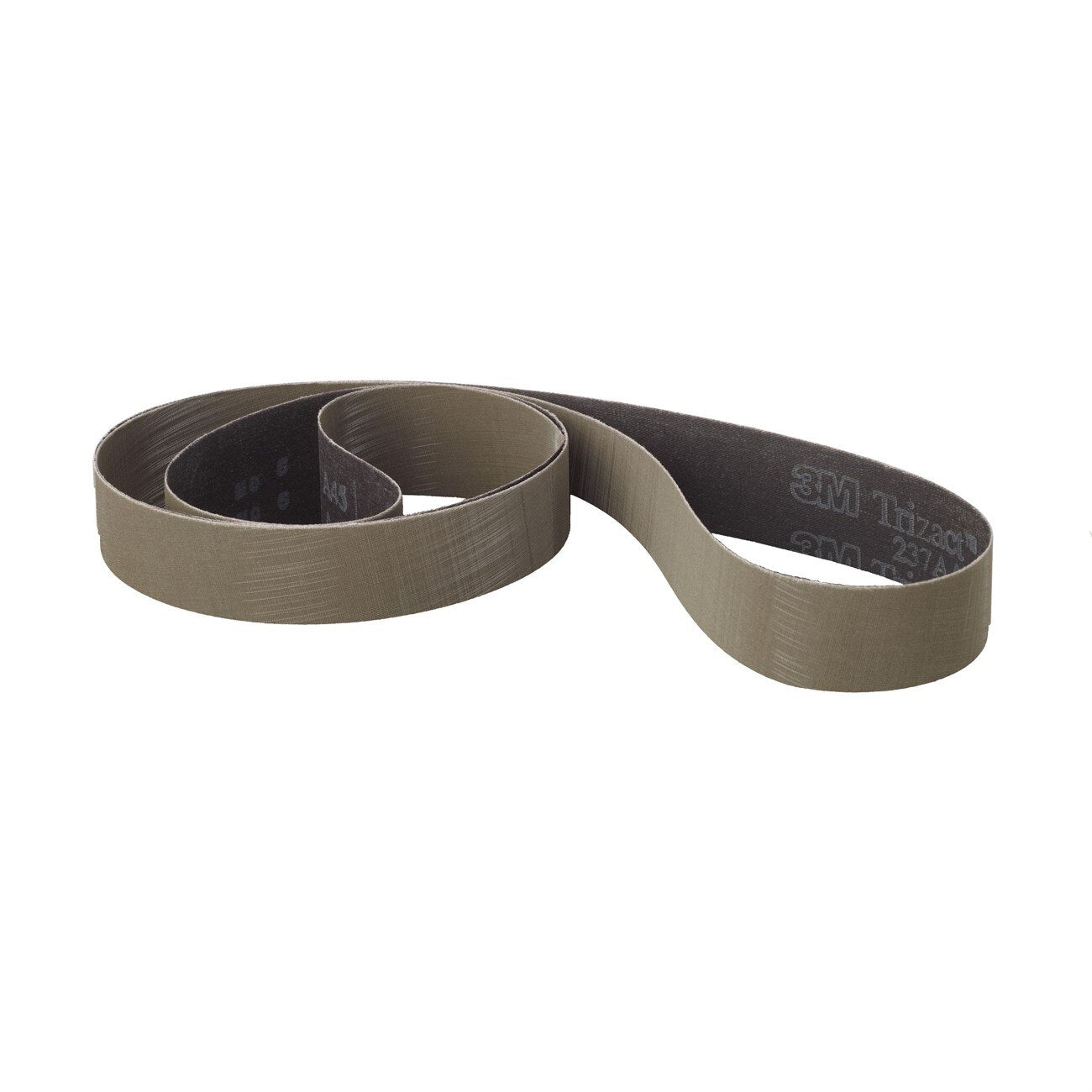

3M 7010307916 Abrasive Belt 48x2 Inch Ao Cloth Gray

Product Description

The 3M 7010307916 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the abrasive pyramids wear during use, fresh, sharp mineral is continuously exposed, producing a consistent cut rate and a predictable finish throughout the life of the belt. At 48 inches long and 2 inches wide, this belt suits a range of stationary and portable belt grinding equipment used in production and job-shop environments.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing on metal workpieces. The flexible cloth backing allows the abrasive to conform to contours and curved surfaces, making it useful in both manual finishing operations and robotic or automated grinding applications where repeatable surface finishes are required. It is typically used by metalworkers, fabricators, and finishing technicians working on ferrous and non-ferrous components that require close surface finish tolerances before final surface treatment.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that expose fresh mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on workpieces
• Flexible X-weight cloth backing conforms to contours for consistent finishes on complex geometries
• Three-dimensional abrasive structure delivers uniform finishes throughout the belt life, well-suited to robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Designed for use prior to plating or buffing where predictable surface finish is critical

Compatibility

Designed as a replacement-style abrasive belt for stationary and portable belt grinders and finishing machines that accept 48 inch by 2 inch belts.

Installation Notes

Installation should be performed by a qualified operator familiar with belt grinding equipment. Ensure the machine is fully powered down and the belt guard is removed before changing the belt. Verify belt tracking and tension according to the equipment manufacturer guidelines before resuming operation. Eye protection and appropriate PPE should be worn during belt changes and grinding operations.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 2 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Color: Gray
• Weight: 0.14 pounds
• Unit of Measure: Each
• UPC: 00051125206716

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010307916
