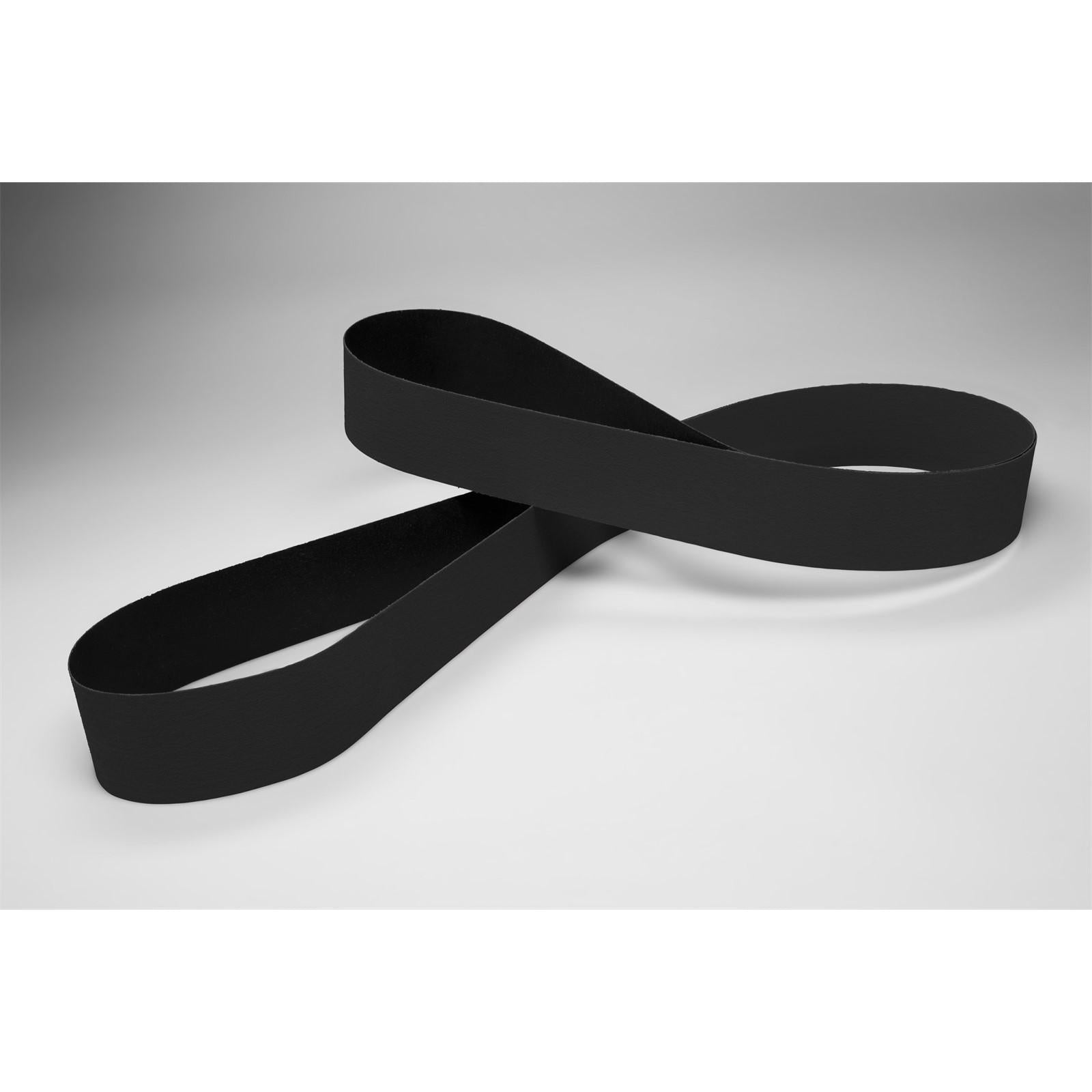

3M 7010307719 Abrasive Belt P80 Grit 36x4 Inch Silicon Carbide

Product Description

The 3M 7010307719 is a coated abrasive belt designed for grinding, blending, deburring, and finishing operations on metal surfaces. Built on a tough polyester cloth backing, this belt uses sharp silicon carbide mineral bonded with a heat-resistant resin system. Silicon carbide fractures consistently during use, which continuously exposes fresh cutting edges and maintains a uniform finish throughout the belt's service life. At P80 grit, this belt handles medium stock removal while still producing a consistent surface finish. It is suited for use on backstands in metal fabrication, welding cleanup, and general metalworking environments. The belt measures 36 inches in length and 4 inches in width and weighs 0.25 pounds.

This belt is intended for metal fabrication shops, maintenance facilities, and industrial grinding operations. It performs in both wet and dry applications, making it adaptable to a range of backstand setups. The water-resistant polyester backing holds up under coolant or water-assisted grinding without tearing or delaminating. Typical users include machinists, fabricators, and maintenance technicians who require reliable cut rate and finish consistency across high-volume belt use on ferrous and non-ferrous metals.

Key Features

• Silicon carbide mineral fractures consistently for maintained cut rate and uniform finish throughout belt life
• P80 grit provides medium stock removal suitable for grinding and blending on metal
• Water-resistant polyester cloth backing supports wet or dry grinding applications without tearing
• Heat-resistant resin bond holds abrasive under sustained pressure and elevated temperatures
• Flexible cloth construction conforms to workpiece contours on backstand applications
• Suitable for ferrous and non-ferrous metal grinding, deburring, and finishing

Compatibility

Designed for use on standard backstand belt grinders accepting 4 inch wide by 36 inch long abrasive belts in metal grinding and finishing applications.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive backstand equipment. Verify belt tracking and tension according to the grinder manufacturer's guidelines before powering on the machine. Ensure the machine is fully de-energized and locked out before changing belts. Inspect the belt for damage before mounting and confirm arrow direction markings align with the direction of rotation where applicable.

Technical Specifications

• Grit: P80
• Belt Length: 36 inches
• Belt Width: 4 inches
• Abrasive Mineral: Silicon Carbide
• Backing Material: Polyester Cloth
• Bond Type: Resin
• Application: Wet or Dry
• Weight: 0.25 pounds
• UPC: 00051115195396

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010307719
