3M 7010305769 Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 9 in Length pieces, 3 pieces/pack, 12 packs/case

Product Description

3M Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve designed to provide abrasion, corrosion, and chemical resistance. With a 3:1 shrink ratio, it delivers electrical insulation suitable for one kV rated applications. Its cross-linked polyolefin construction ensures effective moisture seal protection.

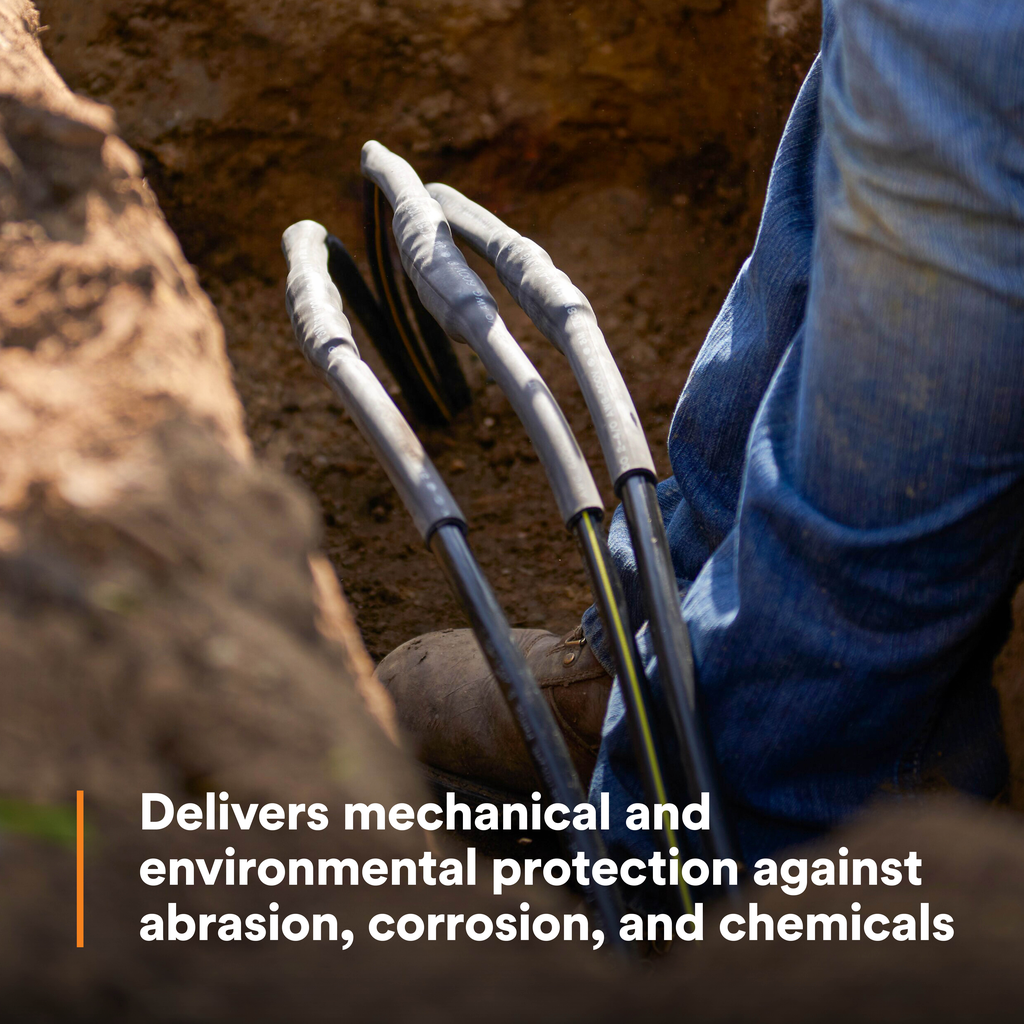

This sleeve is split resistant and includes a factory-applied adhesive/sealant for reliable performance in electrical splices, connections, and terminations. It is ideal for insulating secondary splices and applications requiring direct buried, submersible, or dig-in repairs. It also offers physical protection for high voltage, air insulated connectors or lugs, and can withstand temperatures ranging from negative sixty-seven to two hundred thirty degrees Fahrenheit.

• Heavy wall design for enhanced protection
• Factory-applied adhesive for secure sealing
• UL Listed, CSA Certified, and RoHS compliant

Product Highlights

This product is suitable for various applications including insulating connectors and providing physical protection for cables in demanding environments.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Color: Black
• Material: Polyolefin
• Length: 9 inches
• Package Quantity: 12 packs per case
• Part Number: IT1.100BK9P
• Operating Temperature: -67 to 230 degrees F (-55 to 110 degrees C)
• Shrink Ratio: 3:1
• Voltage Rating: 1 kV
