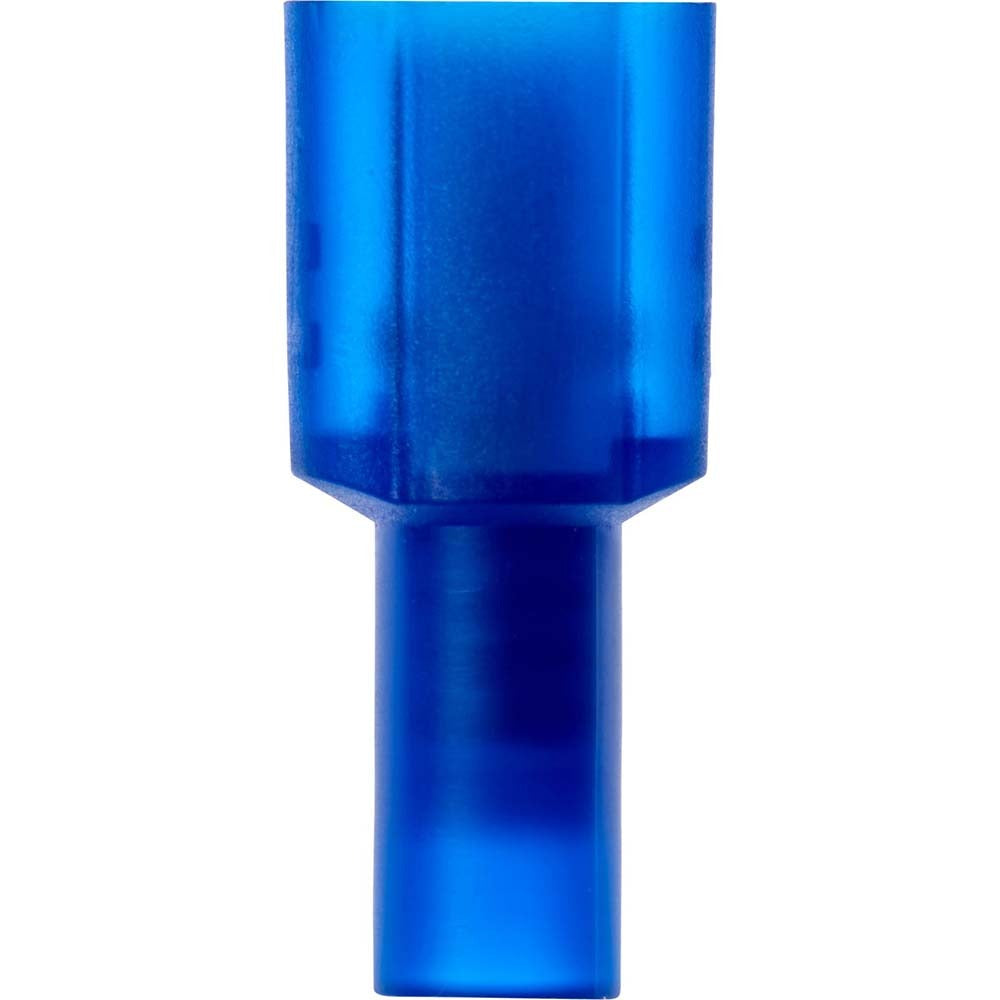

3M 7010304077 Male Wire Disconnect 16-14 Awg 1/4 in

Product Description

The 3M 7010304077 is a fully insulated male wire disconnect designed for reliable quick-connect terminations in electrical and control wiring applications. The connector accepts 16 to 14 AWG wire and features a 1/4 inch tab width for secure mating with standard female disconnect terminals. The blue nylon insulation sleeve provides full coverage over the barrel and tab entry, reducing the risk of accidental contact with energized conductors. This type of terminal is a staple in control panel wiring, HVAC low-voltage circuits, appliance wiring, and field service work where fast, tool-free disconnect capability is required.

These male disconnects are suited for residential and light commercial electrical work, including control board wiring, motor wiring harnesses, thermostat circuits, and general panel assembly. The 1/4 inch tab width is a widely used standard dimension that mates with most 1/4 inch female spade and disconnect terminals. The fully insulated nylon housing makes them appropriate for applications where insulation integrity and color-coded wire management are priorities. Sold in a package quantity of 100, they are practical for shop stock and multi-unit service calls.

Key Features

• Fully insulated blue nylon sleeve for complete conductor coverage and color identification
• Accepts 16 to 14 AWG wire for common control and power wiring gauges
• 1/4 inch tab width mates with standard female spade disconnect terminals
• RoHS 2011/65/EU compliant construction
• Package quantity of 100 suitable for shop stock and bulk installation work

Compatibility

Designed for use with standard 1/4 inch female disconnect terminals accepting 16 to 14 AWG conductors in residential and commercial electrical wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified trade technicians following applicable NEC guidelines. De-energize all circuits before crimping or connecting terminals. Use a calibrated wire crimping tool rated for insulated disconnects to ensure a secure mechanical and electrical connection. Do not rely on solder alone as a substitute for a proper crimp when using this terminal type.
