3M 7010303651 Wire Connector Blue 22-16 Awg

Product Description

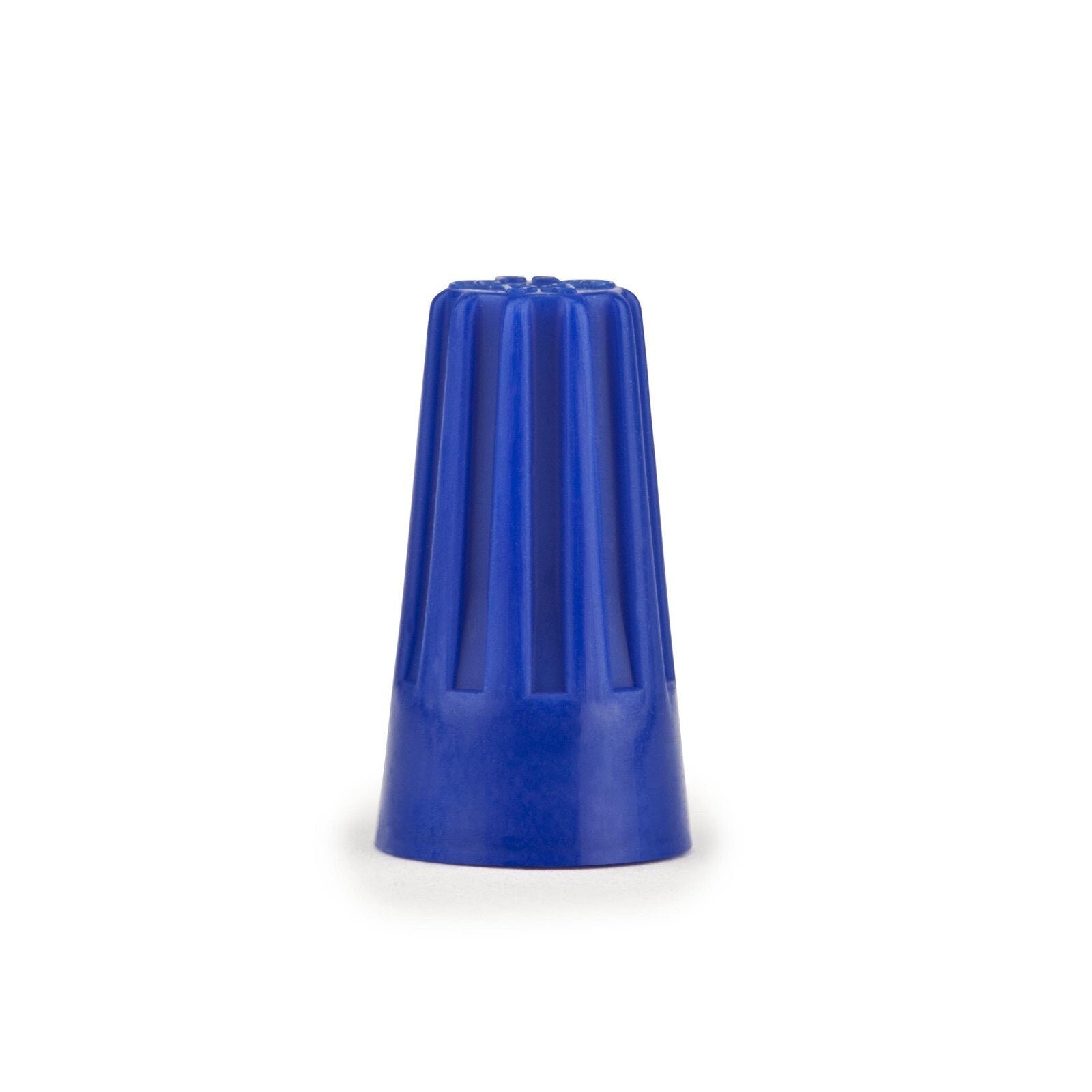

The 3M 7010303651 is a Highland series twist-on wire connector sold individually and rated for 22 to 16 AWG solid or stranded copper conductors. The blue shell is color-coded to simplify conductor-size matching in the field, reducing mismatches during termination work. Rated at 300 volts, the connector is UL Listed and CSA Certified. The thermoplastic shell is engineered to withstand continuous service temperatures up to 221 degrees F (105 degrees C), making it suitable for use in junction boxes, panels, and fixtures where elevated temperatures are a factor.

This connector is suited to residential and light commercial electrical work, including branch circuit terminations, fixture wiring, and device connections. Electricians and maintenance technicians use it wherever a reliable, insulated twist-on connection is needed for smaller-gauge conductors in the 22 to 16 AWG range. The color-coded shell allows quick visual identification when multiple wire sizes are present on the same job.

Key Features

• Color-coded blue shell for fast conductor-size identification at 22 to 16 AWG
• Rated 300 volts for use in standard branch circuit applications
• Compatible with both solid and stranded copper conductors
• Shell rated to 221 degrees F (105 degrees C) for elevated-temperature environments
• UL Listed and CSA Certified

Compatibility

Designed as an OEM-style twist-on wire connector for use with 22 to 16 AWG solid or stranded copper conductors in standard residential and commercial electrical junction and termination applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements. De-energize the circuit at the breaker and verify absence of voltage with a meter before making any connections. Strip conductors to the appropriate length, twist the connector clockwise until firm resistance is felt, and confirm no bare conductor is exposed below the shell. Do not use on aluminum conductors unless the connector is specifically rated for aluminum.

Technical Specifications

• Wire Range: 22 to 16 AWG
• Voltage Rating: 300 volts
• Maximum Temperature: 221 degrees F (105 degrees C)
• Conductor Compatibility: Solid and stranded
• Certifications: UL Listed, CSA Certified
• Shell Color: Blue
• Weight: 0.01 pounds
• Sold As: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010303651
