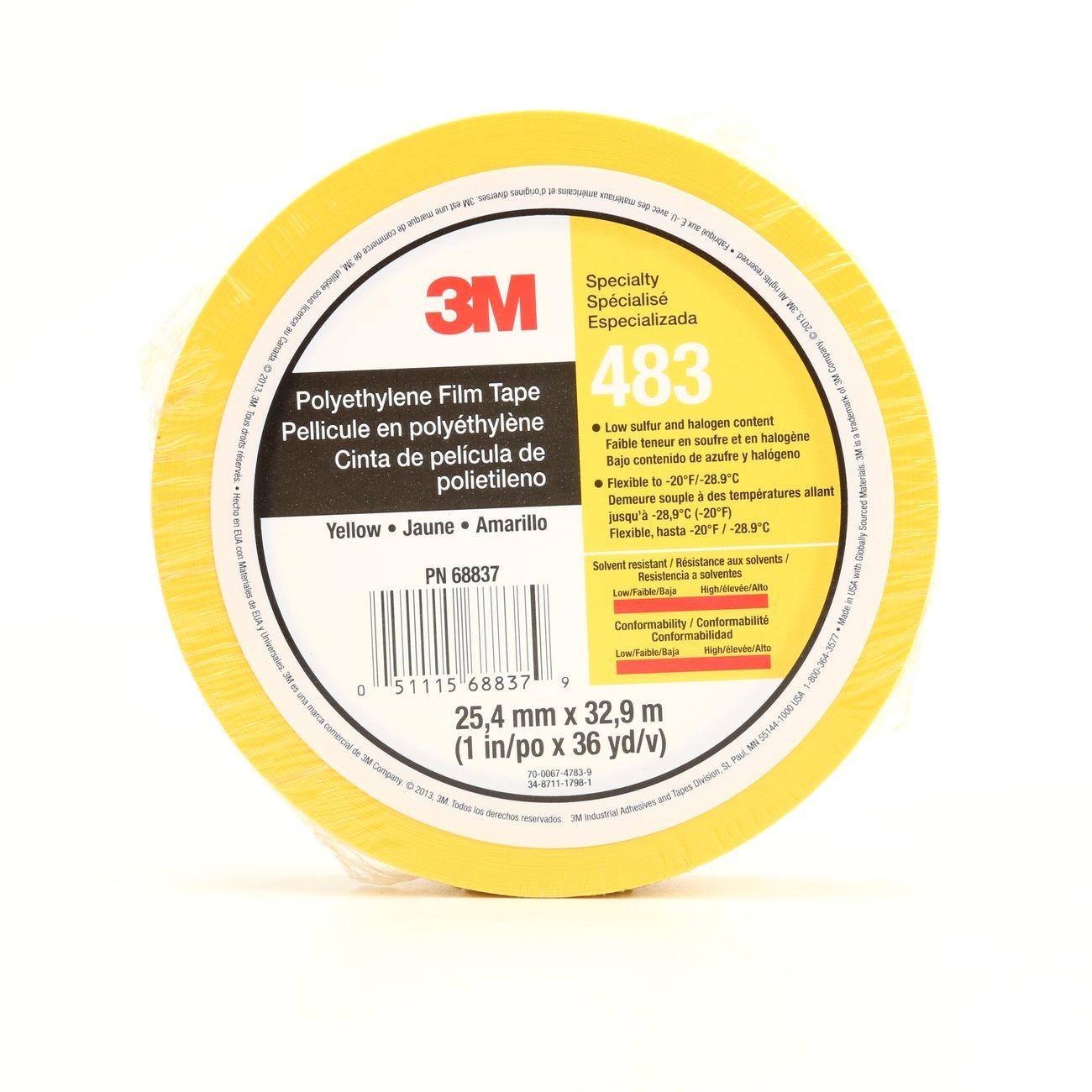

3M 7010302434 Polyethylene Film Tape 483 Yellow 1in X 36yd

Product Description

The 3M 7010302434 is a yellow polyethylene film tape in the 3M 483 series, featuring a 5.3 mil polyethylene backing bonded with a rubber-based adhesive. The tape is engineered for conformability, allowing it to follow irregular surfaces and contours without lifting. Low sulfur and low halogen content make it suitable for sensitive electronics applications. It maintains flexibility down to -20 degrees F, keeping adhesion intact in cold storage and refrigerated environments. Installers in electrical, electronics assembly, and industrial maintenance trades reach for this tape when a chemically resistant, conformable masking or sealing solution is required.

This tape is used across a range of industrial and electronics applications. Common uses include general container sealing, electroplating bath masking, printed circuit board masking, silicone chip holding during processing, decorative banding, safety marking, and color coding on equipment or piping. Its solvent-resistant properties make it a reliable choice in environments where chemical exposure is a concern during production or service operations.

Key Features

• 5.3 mil polyethylene backing for durability and conformability
• Rubber adhesive with low sulfur and low halogen content for electronics-safe applications
• Flexible to -20 degrees F for cold-environment performance
• Good solvent resistance for masking during plating and chemical processes
• Yellow color supports safety marking and color-coding workflows
• 1 inch width by 36 yard length per roll for standard masking tasks

Compatibility

Designed for general industrial and electronics masking applications including electroplating, printed circuit board masking, silicone chip holding, container sealing, and safety marking and color coding.

Installation Notes

Applied by hand or with a standard tape dispenser — no special tools required. Ensure the application surface is clean, dry, and free of oils or loose debris before applying for best adhesion. When used for electroplating or PCB masking, verify chemical compatibility with the specific bath solution before full production use. Remove tape promptly after the masking process is complete to minimize adhesive residue.

Technical Specifications

• Backing Material: Polyethylene
• Adhesive Type: Rubber
• Tape Thickness: 5.3 mil (0.13 mm)
• Width: 1 inch
• Length: 36 yards per roll
• Color: Yellow
• Low Temperature Flexibility: -20 degrees F
• Weight: 0.28 pounds
• Unit of Measure: Roll
• UPC: 00051115688379

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010302434
