Description

Product Description

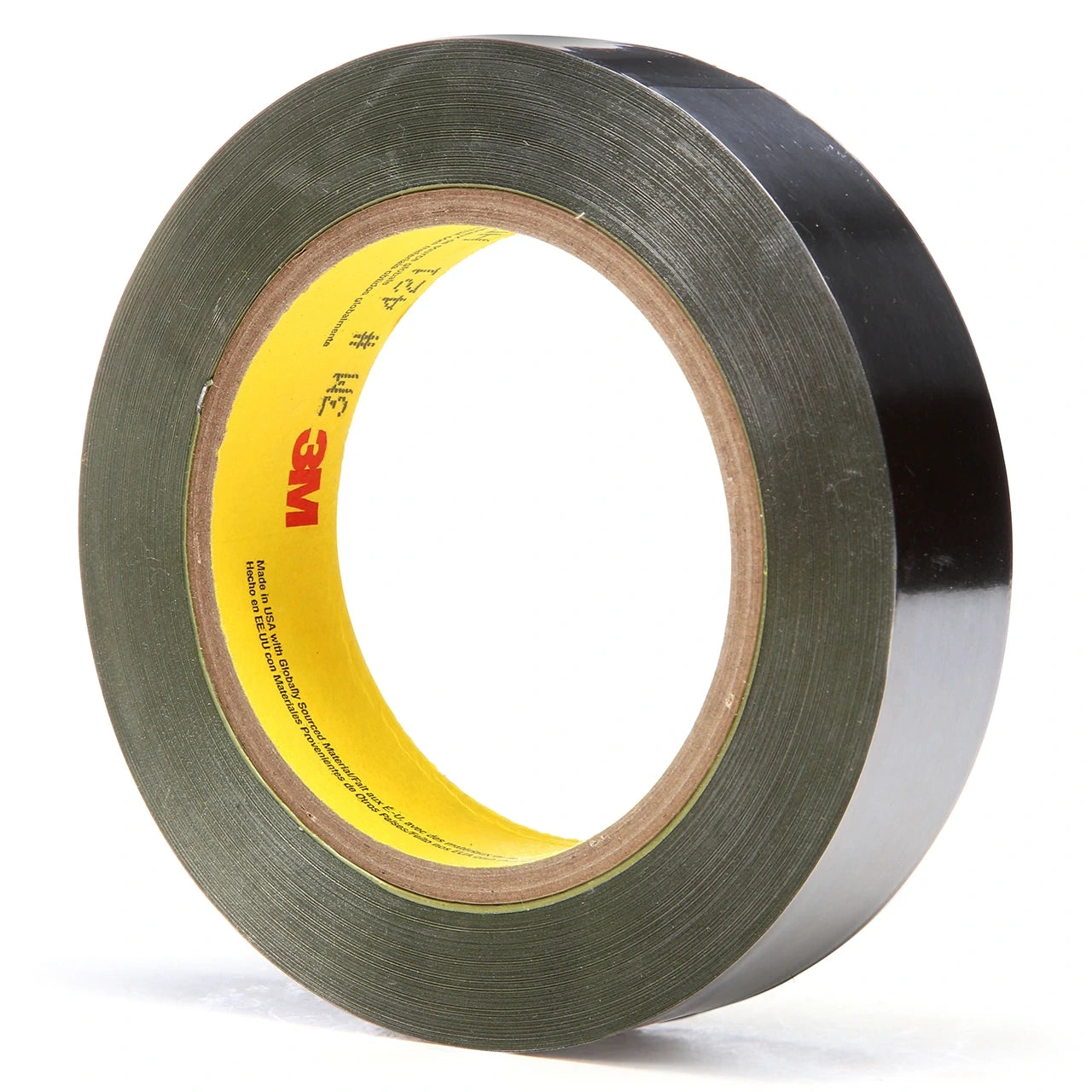

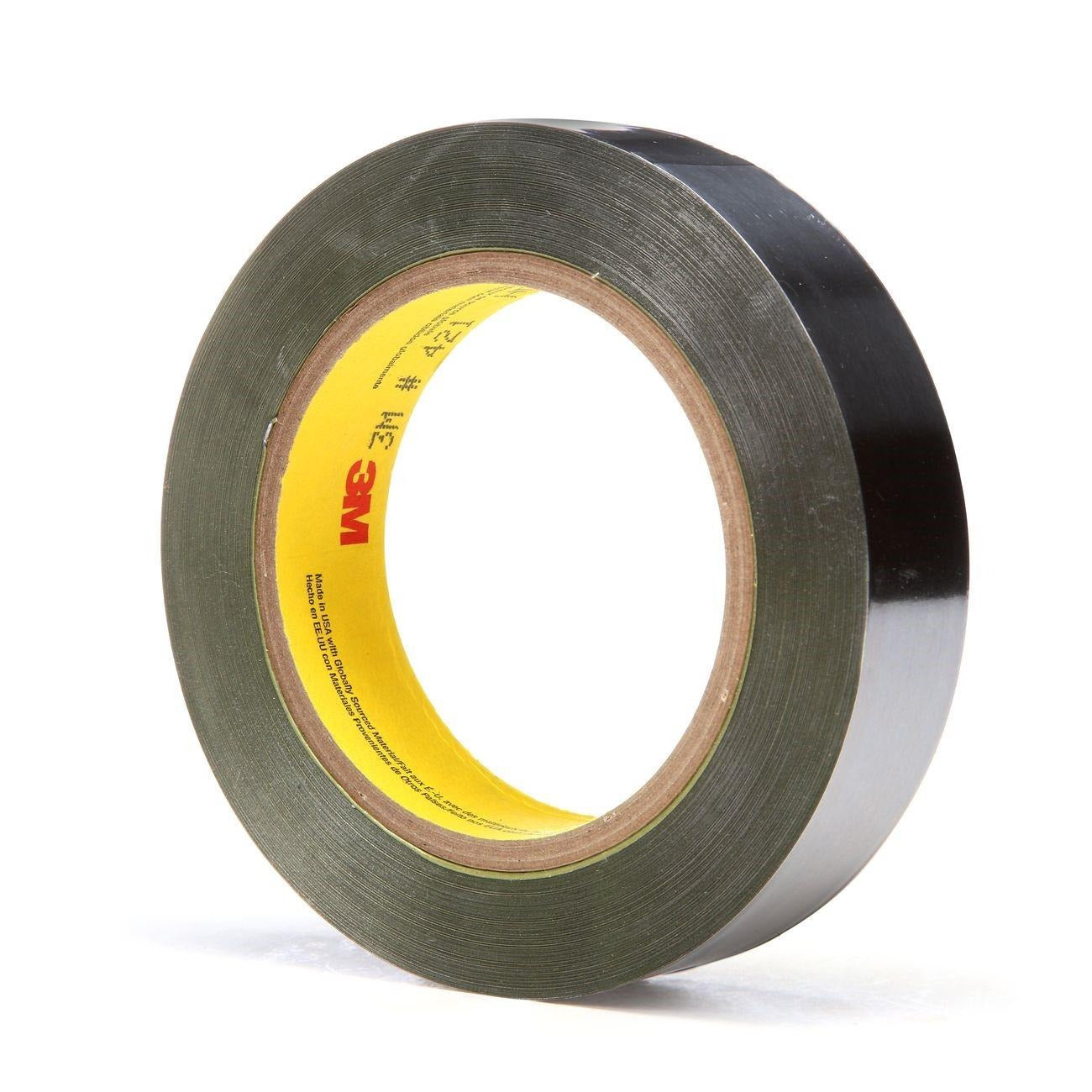

3M 7010302197 Lead Foil Tape 421 is an electrically and thermally conductive, highly conformable lead-backed foil tape designed for masking, shielding, and barrier applications. The tape is 1 in wide, 36 yd long and 6.3 mil thick with a 4 mil lead backing and rubber adhesive, providing a wide operating range from -60 F to 225 F and resistance to flame, moisture, weather, UV, chemicals and radiation.

  • Lead foil backing with rubber adhesive; overall thickness 6.3 mil and backing thickness 4 mil
  • Dimensions: 1 in width x 36 yd length; tensile strength 15 lb/in and adhesion 45 oz/in
  • Temperature range -60 F to 225 F; resists flame, moisture, weather, UV degradation, chemicals and radiation

Product Highlights

Electrically and thermally conductive lead foil tape, 1 in x 36 yd, 6.3 mil thickness, rubber adhesive, 9 rolls per case

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: 7010302197
  • Country of Origin: US
Technical Specifications
Brand
3M
Manufacturer Part Number
7010302197
Series
421
Product Type
Lead foil tape
Width
1 in
Length
36 yd
Thickness
6.3 mil (0.16 mm)
Backing Thickness
4 mil
Backing Material
Lead foil
Adhesive Type
Rubber (green rubber adhesive reported)
Tensile Strength
15 lb/in
Adhesion Strength
45 oz/in
Elongation at Break
14%
Minimum Operating Temperature
-60 F
Maximum Operating Temperature
225 F
Resistance Properties
Flame resistant; moisture resistant; weather resistant; UV degradation resistant; chemical resistant; radiation resistant
Pack Quantity
9 Roll/Case
Applications
Electroplating masking; radiation barrier; X-ray plate masking; moisture barrier; chemical milling; weighting and balancing
