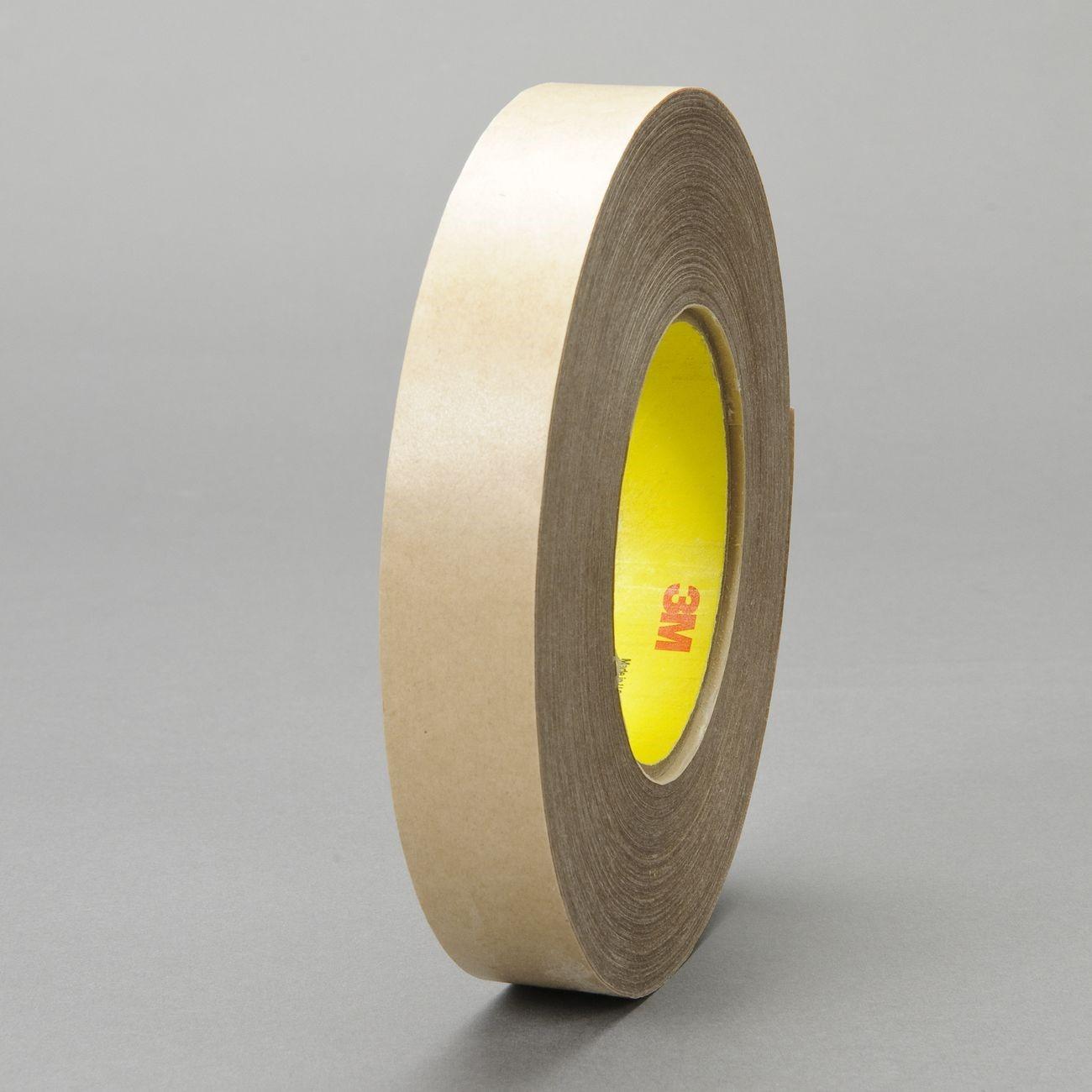

3M 7010302044 Adhesive Transfer Tape 10 Inch 60 Yd

Product Description

The 3M 7010302044 is an adhesive transfer tape built on 3M High Performance Acrylic Adhesive 350, delivered on a tan 58 lb. polycoated kraft (PCK) paper liner. The tape measures 10 inches wide and 60 yards long, with a total thickness of 5.0 mils (0.127 mm). It is engineered for bonding high and low surface energy substrates, including powder-coated paints and rougher surfaces. The acrylic adhesive is fiber reinforced for roll stability in narrow widths and resists oozing during handling. Installers and fabricators working with dissimilar or difficult-to-bond materials will find this tape suitable for demanding production and assembly environments.

This transfer tape is used in industrial fabrication, assembly, and manufacturing applications where a clean, carrier-free adhesive bond is required. It performs in both high and low surface energy bonding scenarios, making it applicable for plastics, metals, powder-coated finishes, and surfaces with moderate texture. The PCK liner resists moisture, which helps maintain liner integrity in humid shop environments. It is sold by the roll and is intended for professional or production use where bond durability and temperature resistance are priorities.

Key Features

• 5.0 mil (0.127 mm) total thickness for substantial bond to low surface energy substrates and powder-coated paints
• Fiber-reinforced acrylic adhesive provides roll stability in narrow widths and resists adhesive ooze
• 58 lb. PCK liner resists moisture and minimizes liner wrinkling during application
• Rated for short-term temperature exposure up to 450 degrees F (232 degrees C) and long-term use up to 300 degrees F (149 degrees C)
• Excellent chemical resistance with strong shear and peel performance at elevated temperatures
• Low odor formulation for improved working conditions in enclosed environments

Compatibility

Designed as an OEM-style adhesive transfer tape for bonding high and low surface energy materials, including powder-coated paints and surfaces with moderate roughness, in industrial assembly and fabrication applications.

Installation Notes

Surface preparation is critical before applying any adhesive transfer tape — clean and dry all bonding surfaces to remove oils, dust, and contaminants. Apply firm, even pressure across the full bond area to ensure full adhesive contact. Power down or de-energize any assemblies before applying tape near electrical components. Follow the material manufacturer and workplace safety guidelines when working at elevated temperatures near the rated limits of the adhesive.

Technical Specifications

• Tape Width: 10 inches
• Tape Length: 60 yards
• Thickness: 5.0 mils (0.127 mm)
• Liner Type: 58 lb. polycoated kraft (PCK) paper, tan
• Adhesive Type: High Performance Acrylic Adhesive 350, fiber reinforced
• Short-Term Temperature Rating: 450 degrees F (232 degrees C)
• Long-Term Temperature Rating: 300 degrees F (149 degrees C)
• Package Weight: 8.33 pounds
• Package Length: 13.9 inches
• Package Width: 13.9 inches
• Package Height: 11.3 inches
• Unit of Measure: Roll
• UPC: 00021200842542

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010302044
