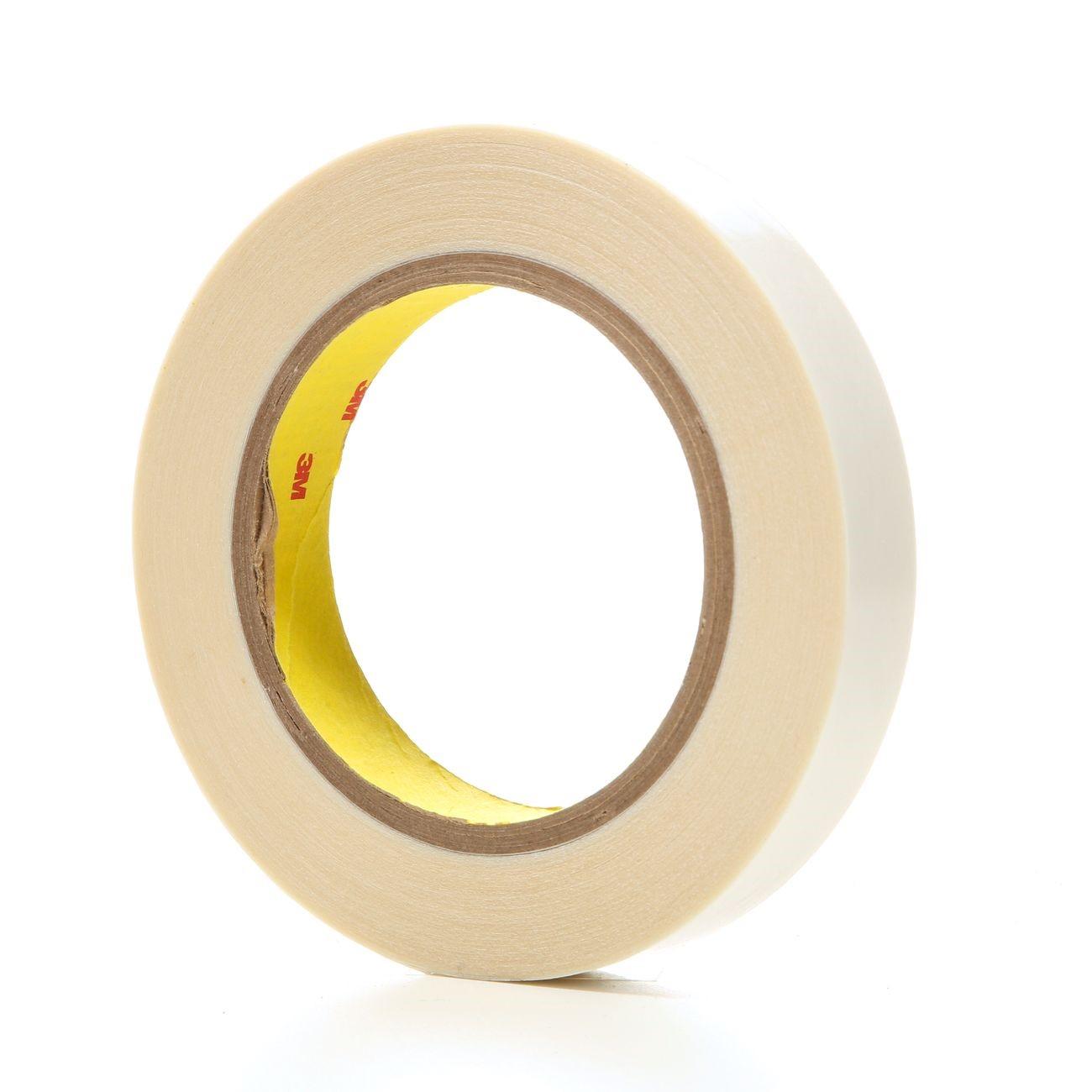

3M 7010302009 Double Coated Tape 0.75 in X 36 Yd

Product Description

The 3M 7010302009 is a double coated tape built on a 0.5 mil PET film carrier with acrylic adhesive applied to both sides. The adhesive system is 3M Adhesive 300, a medium-firm acrylic formula engineered for quick flow and high initial tack. It bonds aggressively to a wide range of surfaces, including low surface energy (LSE) plastics such as polyethylene, high surface energy (HSE) plastics, foams, and gasket materials. The PET film carrier adds dimensional stability, which supports accurate slitting and die-cutting operations. A 3.2 mil densified kraft liner protects the adhesive layer and releases cleanly during application. This product is wound in rolls measuring 0.75 inches wide by 36 yards long.

This tape is suited for light fabrication, assembly, and lamination tasks in industrial and trade environments. It performs well in foam and gasket attachment, plastic-to-plastic bonding, and thin-material joining where residual stress is low. The quick-flowing adhesive is especially useful in higher-speed lamination workflows where immediate adhesion reduces handling time. Typical users include sign fabricators, industrial assemblers, HVAC insulation installers, and maintenance technicians working with foam, film, or plastic substrates. It is sold in rolls and is appropriate for both hand application and semi-automated dispensing setups.

Key Features

• 3M Adhesive 300 medium-firm acrylic bonds to LSE plastics including polyethylene and to HSE plastics
• 0.5 mil PET film carrier provides dimensional stability for slitting and die-cutting
• Adhesive applied to both sides for direct lamination and joining without additional fasteners
• Quick-flowing formula delivers high initial adhesion for faster lamination cycles
• 3.2 mil densified kraft liner releases cleanly and consistently
• Transparent tape allows visual alignment during placement

Compatibility

Designed for bonding foams, gaskets, HSE plastics, and LSE plastics such as polyethylene. Suitable for use as a double coated laminating tape in fabrication and assembly applications requiring a PET film carrier with acrylic adhesive.

Installation Notes

Surface preparation is critical for adhesive performance — clean surfaces of dust, oils, and contaminants before application. Apply firm pressure across the full bond area to ensure full adhesive contact. When cutting or slitting, use sharp tooling to avoid adhesive smear along the edge. Avoid stretching the tape during application, as the PET carrier has low elongation.

Technical Specifications

• Width: 0.75 inches
• Length: 36 yards
• Carrier Material: 0.5 mil PET film
• Adhesive Type: 3M Adhesive 300 medium-firm acrylic
• Liner: 3.2 mil densified kraft
• Color: Transparent
• Unit of Measure: Roll
• Weight: 0.32 pounds
• Package Dimensions: 11.38 x 11.38 x 10.25 inches
• UPC: 00021200047213

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010302009
