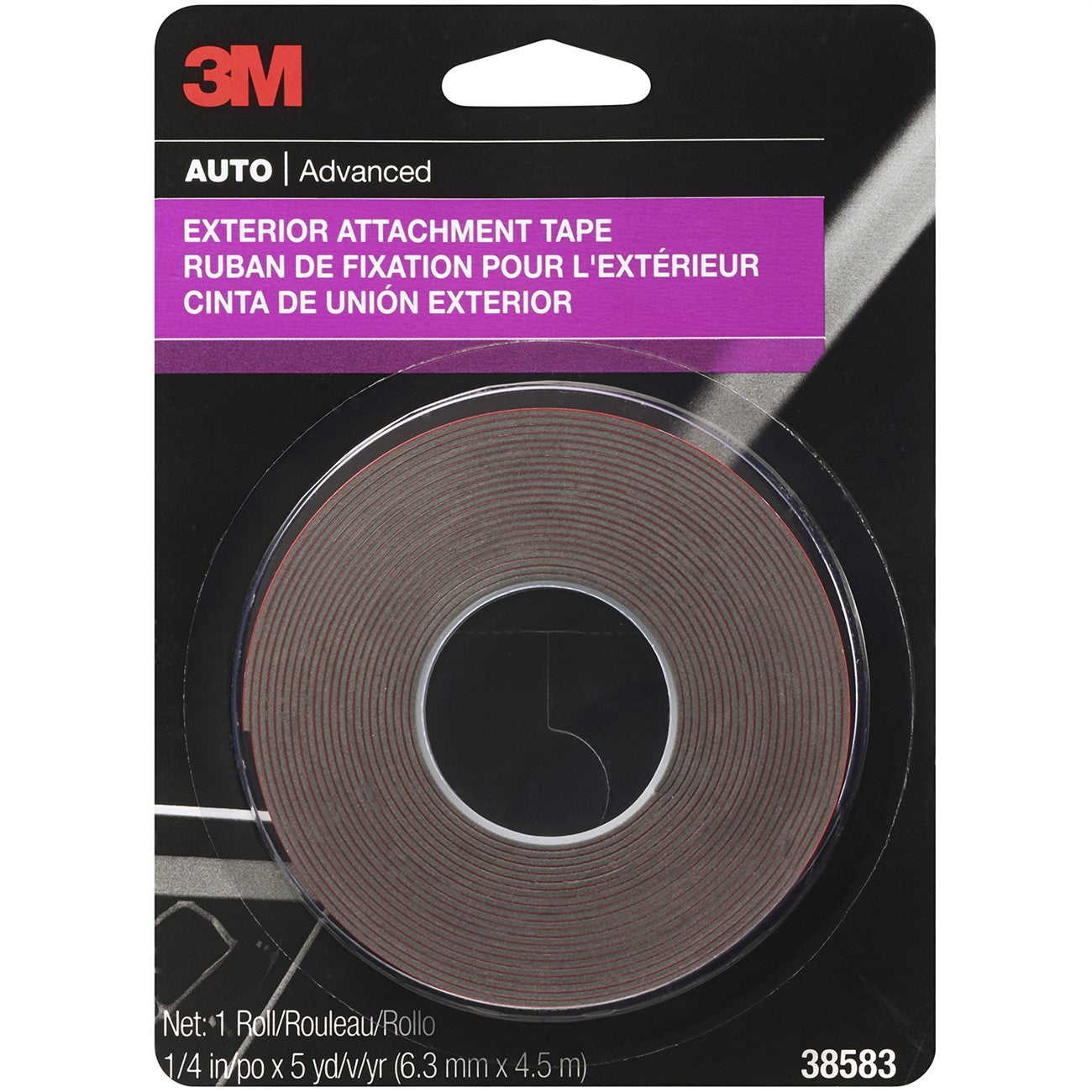

3M 7010300583 Exterior Attachment Tape 0.25 in X 15 Ft

Product Description

The 3M 7010300583 is a double-sided VHB (Very High Bond) exterior attachment tape designed to permanently bond side moldings, trim, and emblems to vehicle surfaces. Measuring 0.25 inches wide by 15 feet long, this tape uses an elastic adhesive technology engineered for high-strength structural applications. It is intended for automotive technicians, detailers, and body shop professionals who need a reliable, rivet-free bonding solution. The tape withstands a temperature range of -40 degrees F to 250 degrees F and resists moisture, UV exposure, and solvents, making it suitable for long-term exterior use.

This tape is used in automotive body and trim applications including the attachment of side body moldings, drip rail moldings, fender trim, wheel trim, and emblems to both painted and unpainted vehicle surfaces. It bonds to plastic, metal, carbon fiber, and composite substrates. The conformable foam carrier allows the tape to seat against irregular and textured surfaces without gaps, which is especially useful when working with body panels that have slight surface variation.

Key Features

• Double-sided VHB adhesive permanently bonds moldings, trim, and emblems without rivets or screws
• Temperature rated from -40 degrees F to 250 degrees F for year-round exterior durability
• Resists moisture, UV radiation, and common automotive solvents
• Conforms to irregular and textured surfaces for full contact bonding
• Dampens noise, shock, and vibration at the bond line
• Bonds to plastic, metal, carbon fiber, and composite materials on painted or unpainted surfaces
• No tools required — cut to length, remove liner, apply, and press

Compatibility

Designed for exterior automotive trim attachment applications including side body moldings, drip rail moldings, fender trim, wheel trim, and emblems on vehicles with painted or unpainted plastic, metal, and composite surfaces.

Installation Notes

Surface preparation is critical before application — clean bonding surfaces thoroughly to remove grease, wax, dust, and loose paint using an appropriate surface cleaner. Apply firm, even pressure along the full length of the tape after placement to ensure maximum adhesive contact. Allow adequate dwell time before exposing the bond to stress or weather. No mechanical tools are required, but adhesion promoter may improve performance on low-energy or porous substrates.

Technical Specifications

• Width: 0.25 inches
• Length: 15 feet
• Temperature Range: -40 degrees F to 250 degrees F
• Weight: 0.1875 pounds
• UPC: 00051131385832
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010300583
