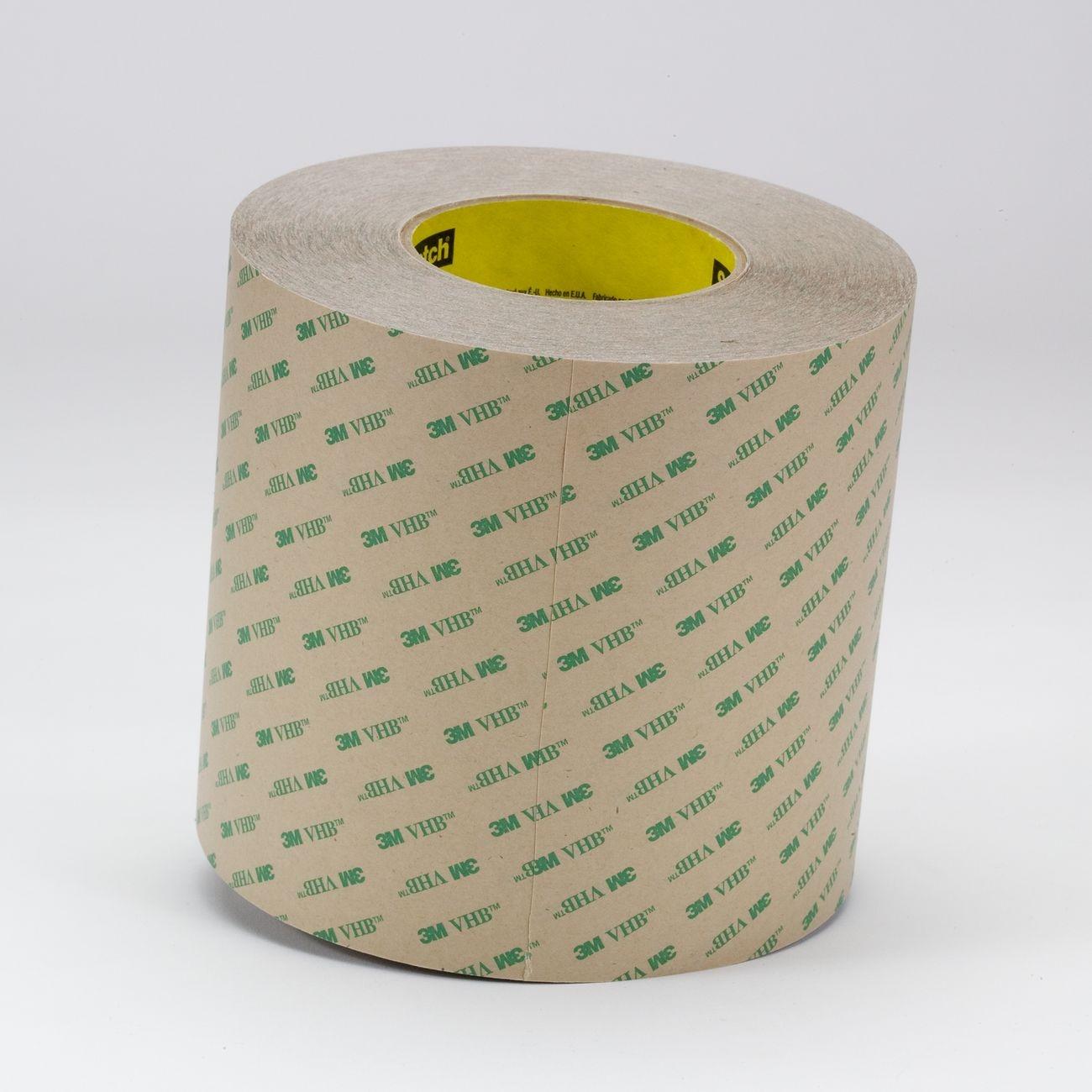

3M 7010300225 Vhb F9473PC Adhesive Transfer Tape 9 Inch

Product Description

The 3M 7010300225 is a VHB F9473PC adhesive transfer tape designed for demanding bonding applications across a wide range of industries and surfaces. This double-sided transfer tape features a 10 mil High Performance Acrylic Adhesive 100MP construction that delivers strong, long-lasting adhesion in both indoor and outdoor environments. At 9 inches wide, it suits larger surface bonding tasks where a thin, transparent profile is required. The tape is rated for continuous operating temperatures up to 300 degrees F and short-term exposure up to 500 degrees F, making it suitable for applications near heat sources. Installation is straightforward, improving workflow efficiency for fabricators, glaziers, and industrial assemblers.

This tape is suited for bonding applications in construction, signage, metal fabrication, automotive trim, and general industrial assembly. Its transparent appearance makes it appropriate for glass, acrylic, and other clear substrates where tape visibility must be minimized. The acrylic adhesive conforms to irregular surfaces and handles both indoor environments and outdoor exposure, including UV, chemical, and solvent contact. It ships in roll form and is compatible with standard tape dispensing and application equipment.

Key Features

• 10 mil VHB acrylic adhesive construction provides a thin profile with high bond strength
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Continuous operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to UV, chemicals, and solvents for durable outdoor and industrial use
• Transparent double-sided format suits visible or clear substrate applications
• 58 lb polycoated kraft paper liner printed with VHB branding for easy handling

Compatibility

Designed as an OEM-style adhesive transfer solution suitable for bonding metals, plastics, glass, acrylics, and painted surfaces in industrial, commercial, and construction assembly applications.

Installation Notes

Surface preparation is critical — clean and dry all bonding surfaces before application to ensure full adhesive contact. Apply firm, even pressure across the tape after positioning to activate the adhesive bond. Allow adequate dwell time before loading the bonded assembly, particularly in low-temperature environments. Remove the liner carefully and avoid stretching the tape during application.

Technical Specifications

• Adhesive Type: High Performance Acrylic 100MP
• Tape Thickness: 10 mil (0.26 mm)
• Width: 9 inches
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Color: Transparent
• Liner: 58 lb polycoated kraft paper
• Unit of Measure: Roll
• Package Weight: 24 pounds
• Package Length: 8.3 inches
• Package Width: 8.3 inches
• Package Height: 11.6 inches
• UPC: 00021200560637

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010300225
