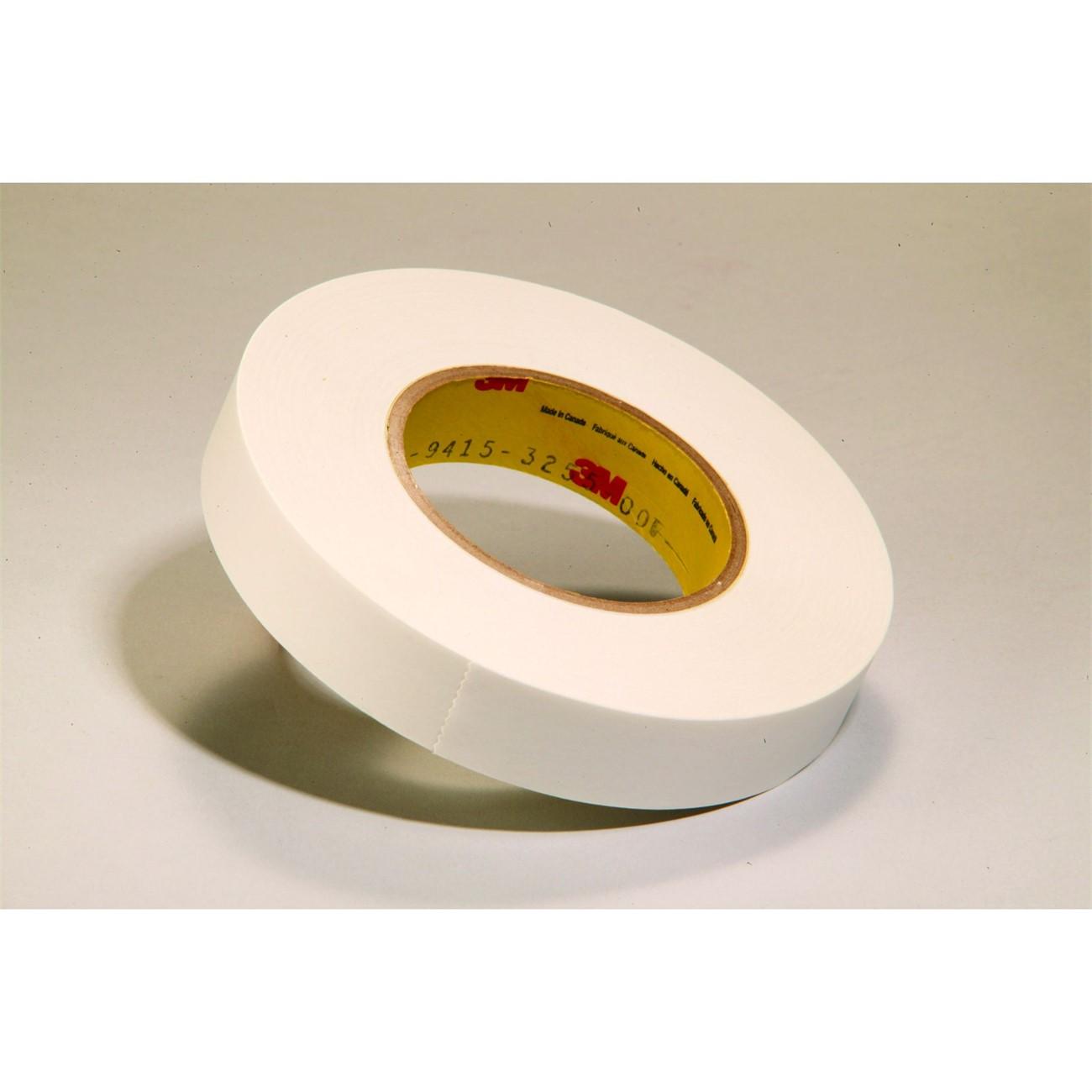

3M 7010300200 Repositionable Double Coated Tape 4in X 72yd

Product Description

The 3M 7010300200 is a differential double coated tape that combines two acrylic adhesives on a single construction: Acrylic Adhesive 400 on one side and Repositionable Acrylic Adhesive 1000 on the other. The carrier is a polyester film backed by a 78 lb polycoated kraft paper liner. The tape measures 4 inches wide by 72 yards long and is 2 mil thick. Adhesive 400 delivers strong peel strength and bonds reliably to metals, glass, wood, paper, paints, and many plastics. Adhesive 1000 holds securely to a wide range of surfaces while allowing clean, damage-free removal. The clear construction supports applications where appearance matters, including window label mounting.

This tape is suited for light industrial, commercial, and specialty fabrication applications where a permanent bond on one face and a repositionable bond on the other is required. The clarity and UV resistance make it a practical choice for window label applications and display graphics. The combination of medium temperature resistance and good low-temperature performance from Adhesive 400 extends its usable range. It is typically applied by fabricators, sign professionals, and assembly technicians working with mixed substrates including dissimilar materials.

Key Features

• Differential double coated construction: Adhesive 400 (permanent) on one side, Adhesive 1000 (repositionable) on the other
• Adhesive 400 rated for short-term heat resistance up to 250 degrees F
• Clear polyester film carrier provides UV resistance and optical clarity for label and window applications
• Adhesive 400 bonds to metals, glass, wood, paper, paints, and many plastics
• Adhesive 1000 allows clean removal without surface damage
• 78 lb polycoated kraft paper release liner for controlled unwind

Compatibility

Designed for use with metals, glass, wood, uncoated papers, paints, and many plastics. Suitable for both high surface energy and low surface energy substrates depending on adhesive side selected. Not recommended for high-solvent or high-temperature continuous exposure environments.

Installation Notes

Application is typically performed by fabrication or assembly technicians without specialized tools beyond a roller or squeegee to ensure full contact. Clean and dry the substrate thoroughly before applying either adhesive face. Adhesive 1000 allows repositioning, but final bond strength increases over time with applied pressure. Avoid contact with high-solvent environments after bonding, as this tape carries only medium-to-low solvent resistance.

Technical Specifications

• Width: 4 inches
• Length: 72 yards
• Thickness: 2 mil
• Color: Clear
• Adhesive Type (Side 1): Acrylic Adhesive 400 (permanent, high tack)
• Adhesive Type (Side 2): Acrylic Repositionable Acrylic Adhesive 1000 (low tack)
• Carrier: Polyester film
• Liner: 78 lb polycoated kraft paper
• Short-Term Heat Resistance: 250 degrees F
• Unit of Measure: Roll
• Weight: 2.82 pounds
• UPC: 00021200407673

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010300200
