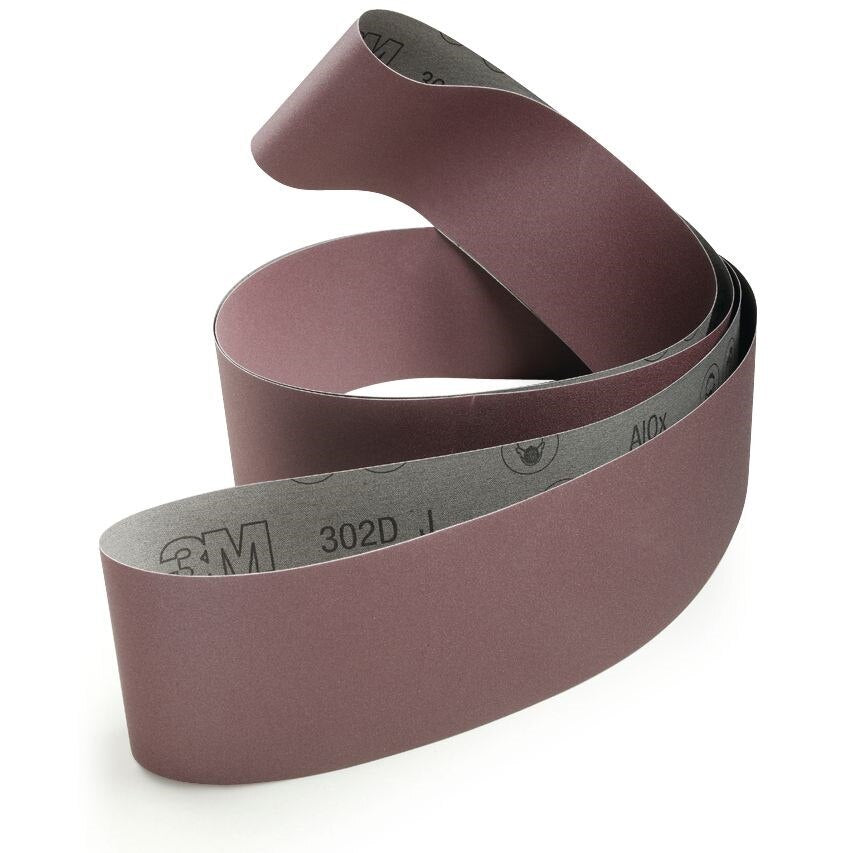

3M 7010300160 Abrasive Belt 132x2 Inch P240 Grit Ao Cloth

Product Description

The 3M 7010300160 is an aluminum oxide coated abrasive belt designed for metalworking on backstand grinders, file belt tools, and benchtop motors. It measures 132 inches long and 2 inches wide, with a P240 grit rating suited for light grinding, finishing, deburring, and grain setting. The J-weight cloth backing is flexible, allowing the belt to conform to contoured surfaces and complex part geometries. Open coat construction keeps the abrasive surface clear of sanding dust, maintaining an aggressive cut throughout the belt's service life. Resin bonding locks the abrasive to the backing for extended durability. Licensed trade professionals and metal fabricators are the primary installers and users of this belt.

This belt is designed for dry metalworking applications on carbon steel, stainless steel, aluminum, brass, bronze, and copper. It is well-suited for finishing and blending contours, deburring edges, and establishing surface grain on both ferrous and non-ferrous metals. The open coat design makes it particularly effective in applications where swarf and dust loading would otherwise reduce abrasive life on tighter-coat belts.

Key Features

• Aluminum oxide abrasive provides fast cutting action across most common metals
• J-weight cloth backing conforms to curved surfaces and complex part contours
• Open coat construction evacuates sanding dust for longer abrasive life and consistent cut rate
• Resin bond construction maximizes belt durability in production metalworking environments
• Rated for dry metalworking use on backstand grinders, file belt tools, and benchtop motors
• P240 grit delivers fine finishing and grain-setting performance

Compatibility

Designed for use on backstand grinders, file belt tools, and benchtop motors requiring a 132-inch by 2-inch abrasive belt in P240 grit.

Installation Notes

Belt installation and replacement should be performed by qualified personnel familiar with abrasive belt equipment. Power down and lock out the machine before changing belts. Verify that belt tracking and tension are set according to the equipment manufacturer's specifications before operating. Inspect the belt for tears or edge damage prior to use and replace immediately if defects are found.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 2 inches
• Grit: P240
• Abrasive Material: Aluminum Oxide
• Coat Type: Open Coat
• Backing Material: J-Weight Cloth
• Bond Type: Resin
• Application Type: Dry
• Weight: 0.2 pounds
• UOM: Each
• UPC: 00051141307282

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010300160
