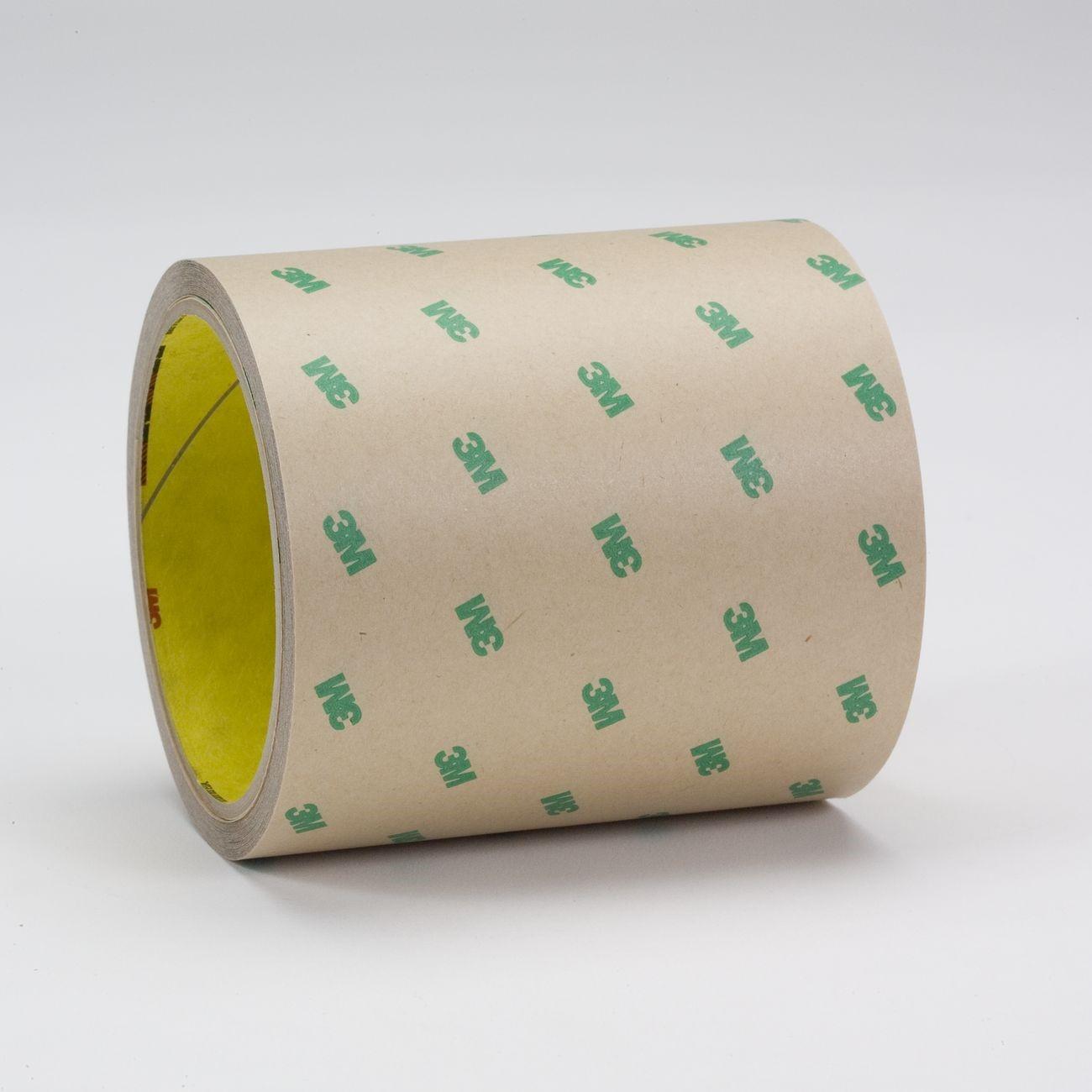

3M 7010300053 Adhesive Transfer Tape 12 Inch 60 Yd

Product Description

The 3M 7010300053 is an adhesive transfer tape designed for general industrial bonding applications. It features 3M Industrial Acrylic Adhesive 220, a 2.3 mil adhesive layer applied to a 4.2 mil polycoated kraft paper liner. The liner protects the adhesive surface until the tape is ready for application, then peels away cleanly for fast, efficient handling. This roll measures 12 inches wide and 60 yards long, making it well suited for production environments where consistent, repeatable bonding is required. The acrylic adhesive delivers reliable shear strength and good peel adhesion to high surface energy materials.

This transfer tape is intended for general bonding across a range of light industrial and manufacturing applications. It performs well on high surface energy substrates such as metals, glass, and rigid plastics. Typical use cases include laminating, mounting, and assembly operations where a clean, film-free adhesive bond is preferred. The roll format is compatible with standard dispensing equipment used in production and fabrication settings.

Key Features

• 2 mil nominal acrylic adhesive layer provides good shear strength for general bonding
• Good peel adhesion to high surface energy materials including metals, glass, and rigid plastics
• 4.2 mil polycoated kraft liner protects the adhesive and releases quickly for easy handling
• 12-inch width and 60-yard length support high-volume production use
• Transparent adhesive leaves no visible film after liner removal

Compatibility

Designed for bonding to high surface energy substrates in general industrial and light manufacturing applications.

Installation Notes

Application should be performed by personnel familiar with pressure-sensitive adhesive tape systems. Ensure the substrate surface is clean, dry, and free of oils or contaminants before applying the tape. Apply firm, even pressure across the bonded area to achieve full adhesive contact. Follow applicable facility safety and material handling guidelines when using adhesive products in production environments.

Technical Specifications

• Adhesive Type: Industrial Acrylic Adhesive 220
• Adhesive Thickness: 2.3 mil
• Liner Type: Polycoated Kraft Paper
• Liner Thickness: 4.2 mil
• Roll Width: 12 inches
• Roll Length: 60 yards
• Color: Transparent
• Unit of Measure: Roll
• Weight: 7.13 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010300053
