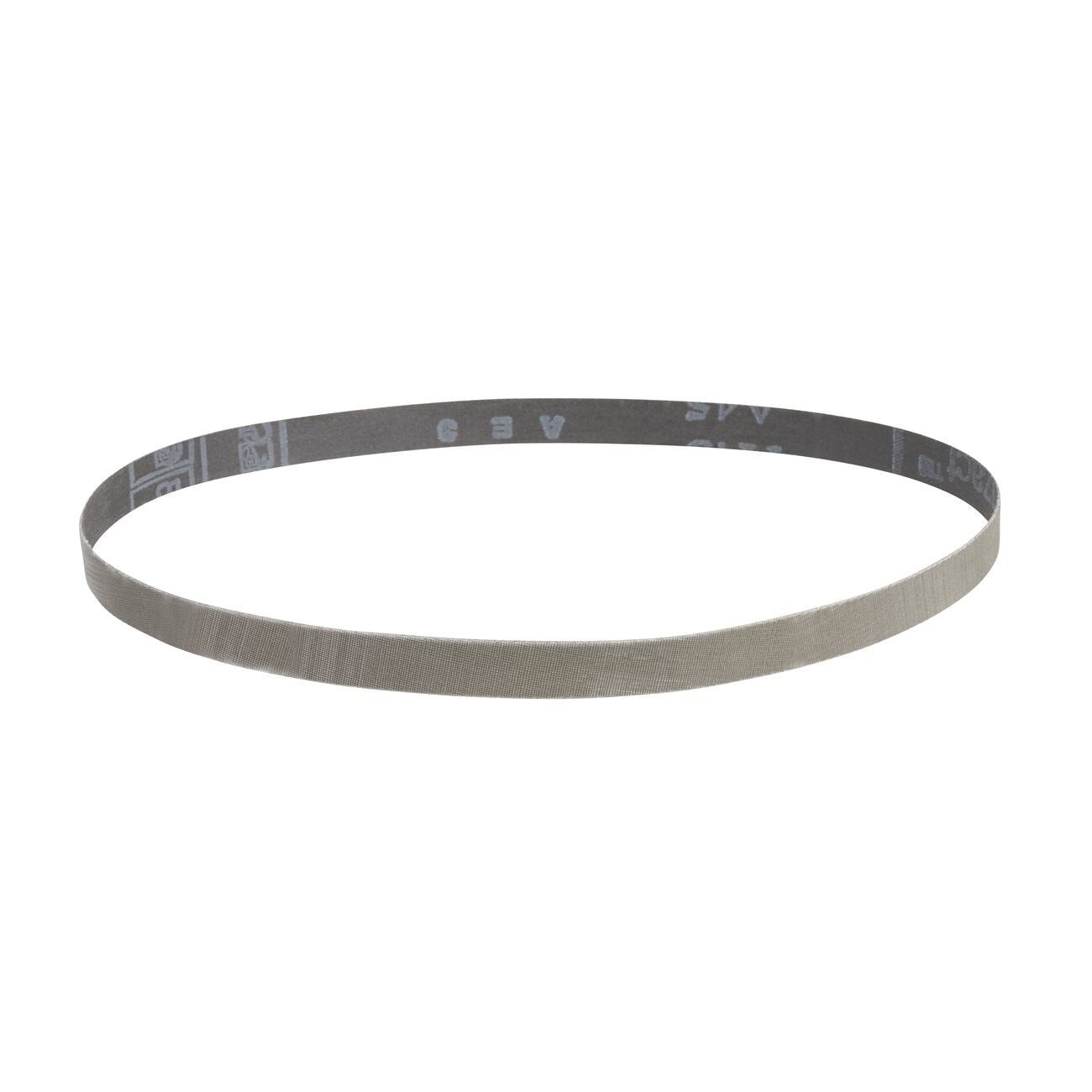

3M 7010299953 Trizact 237AA Abrasive Belt 72x0.5 in Ao

Product Description

The 3M 7010299953 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It measures 72 inches long by 1/2 inch wide and uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and predictable finish quality throughout the life of the belt. Licensed trades and industrial finishing technicians rely on this belt for work prior to plating or buffing operations.

This belt is suited for intermediate finishing and fine polishing on metal components in both manual and robotic grinding applications. The flexible cloth backing conforms to contoured surfaces, making it effective on complex part geometries. Its three-dimensional abrasive structure supports highly repeatable surface finishes in automated production environments where consistent results across large part runs are required.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut and finish
• Self-sharpening design runs cooler than conventional abrasives, reducing heat buildup at the workpiece
• Flexible X-weight cloth backing conforms to contoured and complex part profiles
• Three-dimensional abrasive structure delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Designed for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt grinding and finishing machines that accept 72-inch by 1/2-inch abrasive belts; suitable for metal finishing applications including pre-plate and pre-buff surface preparation on ferrous and non-ferrous workpieces.

Installation Notes

Installation should be performed by qualified grinding or finishing equipment operators following the machine manufacturer's belt tracking and tensioning procedures. Ensure the machine is fully de-energized and locked out before changing belts. Verify belt direction-of-travel arrows align with machine rotation before starting. Wear appropriate PPE including eye protection and gloves during belt changes and operation.

Technical Specifications

• Belt Length: 72 inches
• Belt Width: 0.5 inches
• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: X-weight Cloth
• Abrasive Technology: Trizact Microreplication
• Color: Gray
• Weight: 0.06 pounds
• Unit of Measure: Each
• UPC: 00051125223522

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010299953
