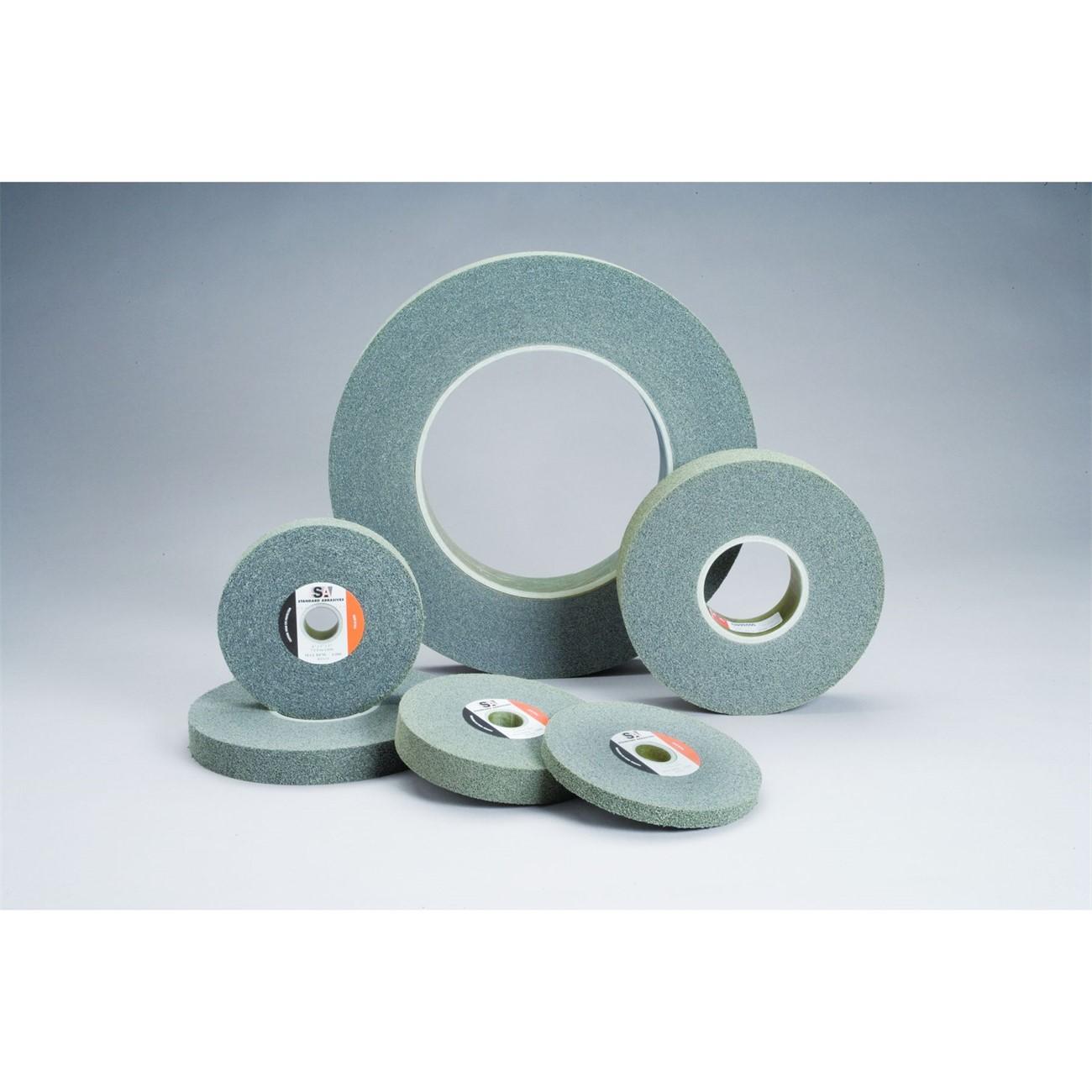

3M 7010299512 Convolute Light Deburring Wheel 16 in

Product Description

The 3M 7010299512 is a convolute light deburring wheel designed for finishing and deburring parts that require critical tolerances. The wheel measures 16.38 inches in diameter with a 5.75 inch face width and weighs 7.125 pounds. Its soft density construction allows the abrasive material to conform to the workpiece surface, reducing the risk of undercutting or gouging. This wheel is suited for use on automated equipment, stationary straight-shaft tools, portable tools, and feed-through machines, making it a practical choice for machine shops, metal fabrication facilities, and production floor environments.

This deburring wheel is well suited for light deburring tasks, blending machine marks and belt marks, and finishing small parts across a range of metalworking applications. The non-metallic construction prevents contamination of the workpiece, which is important when working with alloys or parts that require a clean, smear-resistant surface finish. It is appropriate for both bench-mounted and inline production setups where consistent, repeatable finishing results are needed.

Key Features

• Soft density allows abrasive to conform to workpiece surface, preventing undercutting and gouging
• Non-metallic construction eliminates the risk of workpiece contamination
• Maintains a smear-resistant finish on finished parts
• Fast finish rate reduces operator effort compared to conventional deburring wheels
• Compatible with automated equipment, stationary tools, portable tools, and feed-through machines

Compatibility

Designed for use on automated equipment, straight-shaft stationary and portable tools, and feed-through machines requiring a convolute light deburring wheel with a 10 inch arbor and 16 inch diameter.

Installation Notes

Installation should be performed by qualified personnel familiar with abrasive wheel safety and applicable ANSI B11 or OSHA 29 CFR 1910.215 standards for abrasive wheel machinery. Verify that the machine spindle speed does not exceed the rated maximum RPM of the wheel before mounting. Inspect the wheel for damage before each use and ensure the arbor size matches the wheel bore exactly. Power down and lockout the machine fully before mounting or removing the wheel.

Technical Specifications

• Wheel Diameter: 16.38 inches
• Face Width: 5.75 inches
• Arbor Size: 10 inches
• Wheel Type: Convolute
• Wheel Grade: Light Deburring
• Weight: 7.125 pounds
• Unit of Measure: Each
• UPC: 051115430973

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010299512
