3M 7010299209 Roloc Disc Pad Ts Tsm 3 in 1/4-20

Product Description

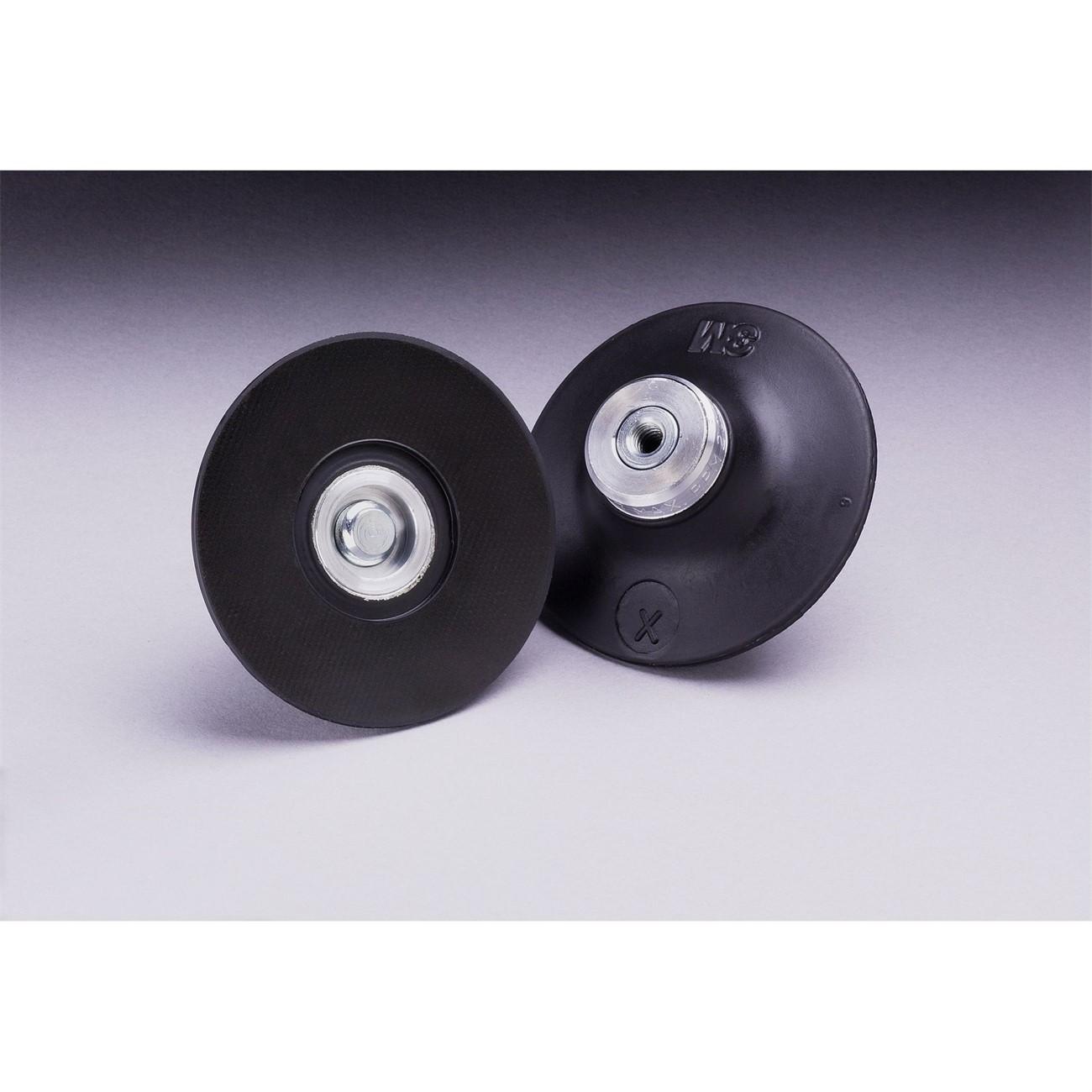

The 3M 7010299209 is an extra-hard backup pad designed to support Roloc TS and TSM abrasive discs in 3-inch diameter format. It functions as the mounting interface between a rotary tool and a Roloc-style abrasive disc, holding the disc flat and stable during grinding, blending, or finishing operations. The pad features a 1/4-20 internal thread, allowing direct mounting to tools with a 1/4-20 external threaded shaft. It can also be used with a Roloc shank adapter to fit collet chuck tools. Tradespeople in metal fabrication, automotive, HVAC sheet metal work, and general mechanical service rely on this type of backup pad for consistent disc performance.

This backup pad is suited for use with 3-inch Roloc TS and TSM series abrasive discs in applications that require an extra-hard backing surface. An extra-hard pad provides minimal flex, which is appropriate for flat surface work where uniform disc contact and aggressive material removal are priorities. It is commonly used in industrial and trade settings including metal prep, weld blending, and surface conditioning tasks on ferrous and non-ferrous materials. The 1/4-20 internal thread makes it compatible with a wide range of angle grinders, die grinders, and drill-type tools equipped with the matching shaft thread.

Key Features

• Supports 3-inch diameter Roloc TS and TSM abrasive discs
• Extra-hard pad density for flat, rigid disc support during aggressive surface work
• 1/4-20 internal thread mounts directly to tools with 1/4-20 external threaded shafts
• Compatible with Roloc shank adapters for use with collet chuck tools
• Lightweight construction at 0.2 pounds for reduced operator fatigue during extended use

Compatibility

Designed for use with 3M Roloc TS and TSM series 3-inch abrasive discs. Mounts to tools with 1/4-20 external threaded shafts or fits collet chuck tools when used with a Roloc shank adapter.

Installation Notes

Installation is performed by threading the pad onto a 1/4-20 externally threaded tool shaft by hand until secure. Ensure the tool is powered off and disconnected from any power source before attaching or removing the pad. Do not overtighten or use impact methods to seat the pad, as this can damage the internal thread. Verify the abrasive disc is fully engaged with the Roloc locking mechanism before starting the tool.

Technical Specifications

• Disc Compatibility: 3M Roloc TS and TSM series, 3 inches diameter
• Thread Size: 1/4-20 internal
• Pad Hardness: Extra Hard
• Weight: 0.2 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5
• UPC: 00051144777372

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010299209
