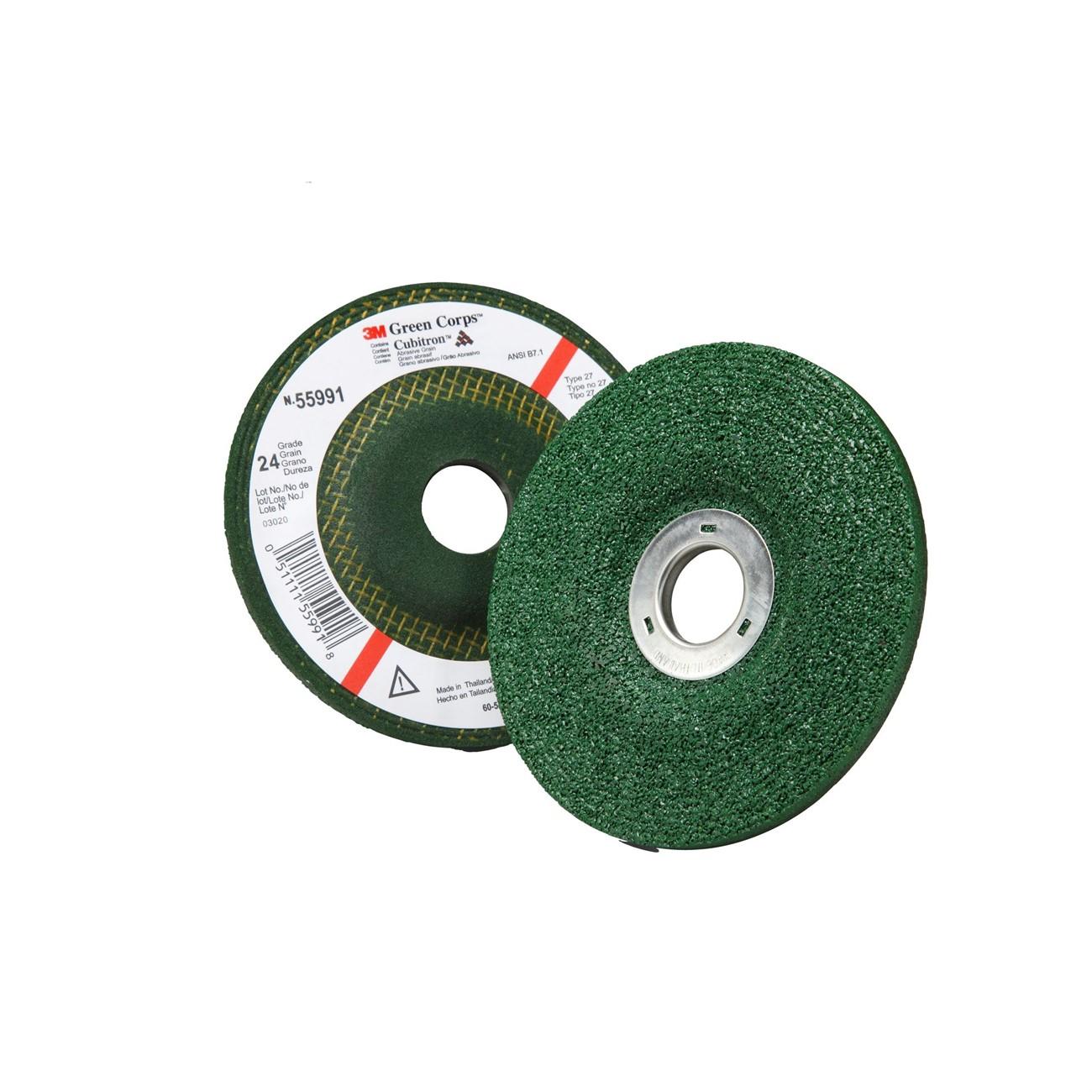

3M 7010299200 Depressed Center Grinding Wheel 24 Grit

Product Description

The 3M 7010299200 is a depressed center grinding wheel designed for aggressive material removal on metal surfaces. Built with a ceramic abrasive grain, it delivers high cut rates while maintaining wheel life across a wide range of ferrous and non-ferrous metals. The wheel measures 4 inches in diameter, 1/4 inches thick, and carries a 3/8 inch arbor hole. At 24 grit, it is suited for heavy stock removal, weld grinding, and surface preparation tasks where fast cutting action is the priority. Metal fabricators, welders, and pipefitters are the primary users of this product.

This depressed center wheel is used in metal fabrication shops, structural steel work, pipeline work, and general industrial grinding applications. The 1/4 inch bond thickness positions it for heavy-duty grinding rather than cutting or notching. It is compatible with standard angle grinders fitted with a 3/8 inch arbor. Typical applications include weld bead removal, deburring, and preparing base metal before welding or coating.

Key Features

• 24 grit ceramic abrasive grain for high cut rates on metal
• Depressed center profile allows flush grinding near obstructions
• 4 inches x 1/4 inches x 3/8 inches wheel dimensions for standard angle grinders
• 1/4 inch bond thickness rated for heavy stock removal and weld grinding
• Sold individually; minimum order quantity of 10 units per order

Compatibility

Designed as a replacement-style depressed center grinding wheel for standard angle grinders with a 3/8 inch arbor, suitable for use on a wide variety of metals in fabrication and industrial settings.

Installation Notes

Installation and use of grinding wheels should be performed by qualified personnel following ANSI B7.1 safety standards. Verify the grinder spindle speed does not exceed the maximum rated RPM marked on the wheel before mounting. Power down and disconnect the grinder from its power source before changing wheels. Always use the correct flange and arbor hardware and inspect the wheel for cracks or damage before each use.

Technical Specifications

• Diameter: 4 inches
• Thickness: 1/4 inches
• Arbor Size: 3/8 inches
• Grit: 24
• Abrasive Type: Ceramic Grain
• Weight: 0.34 pounds
• Unit of Measure: Each
• UPC: 00051111610107

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010299200
