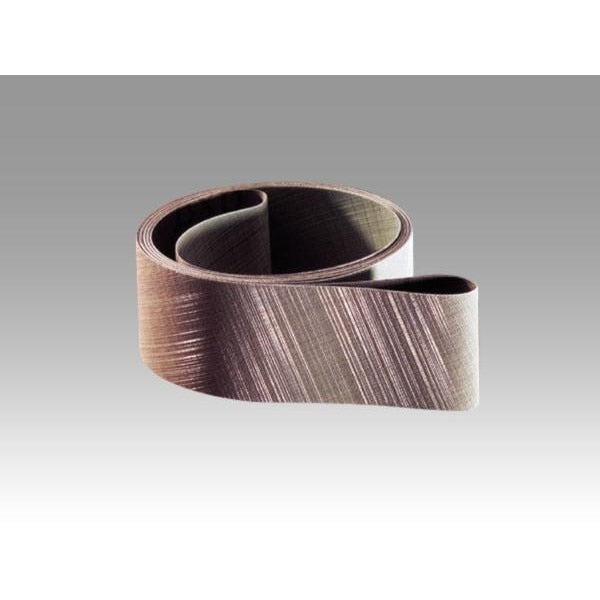

3M 7010299178 Trizact 307EA Abrasive Belt 60x1.5 in Ao

Product Description

The 3M 7010299178 is a Trizact 307EA abrasive belt designed for intermediate finishing and fine polishing applications in industrial and manufacturing environments. It uses 3M proprietary microreplication technology in which micron-graded aluminum oxide particles are formed into precise three-dimensional pyramids and bonded to a flexible rayon cloth backing. As the abrasive pyramids wear during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to finish. This belt is well suited for robotic and automated finishing lines as well as skilled hand-finishing operations.

The 307EA belt is intended for industrial metalworking applications including intermediate stock removal, fine surface finishing, and pre-plate or pre-buff polishing. Its flexible rayon backing conforms to contoured and irregular surfaces, making it appropriate for parts with complex geometry. The three-dimensional pyramid structure supports consistent finish quality throughout the full life of the belt, which is especially valuable in automated and robotic finishing cells where repeatability is critical.

Key Features

• Microreplication technology forms aluminum oxide particles into self-sharpening abrasive pyramids for consistent cut and finish
• Self-sharpening pyramid structure runs cooler than conventional abrasives, reducing heat buildup on workpieces
• Flexible rayon cloth backing conforms to contoured surfaces for uniform contact
• Three-dimensional abrasive design delivers repeatable finishes throughout belt life, ideal for robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt finishing machines and robotic finishing systems that accept 60-inch by 1.5-inch abrasive belts; confirm drive roll and contact wheel dimensions match belt size before installation.

Installation Notes

Installation should be performed by qualified finishing technicians familiar with belt sander and abrasive finishing equipment. Power down and lock out the machine before changing belts. Verify belt tracking and tension according to the equipment manufacturer specifications before resuming operation. Inspect the belt for tears or edge damage before each use and replace immediately if damage is found.

Technical Specifications

• Belt Length: 60 inches
• Belt Width: 1.5 inches
• Abrasive Mineral: Aluminum Oxide (Microreplication Technology)
• Backing Material: Rayon Cloth
• Product Series: Trizact 307EA
• Unit of Measure: Each
• Weight: 0.14 pounds
• UPC: 00051115195150

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010299178
