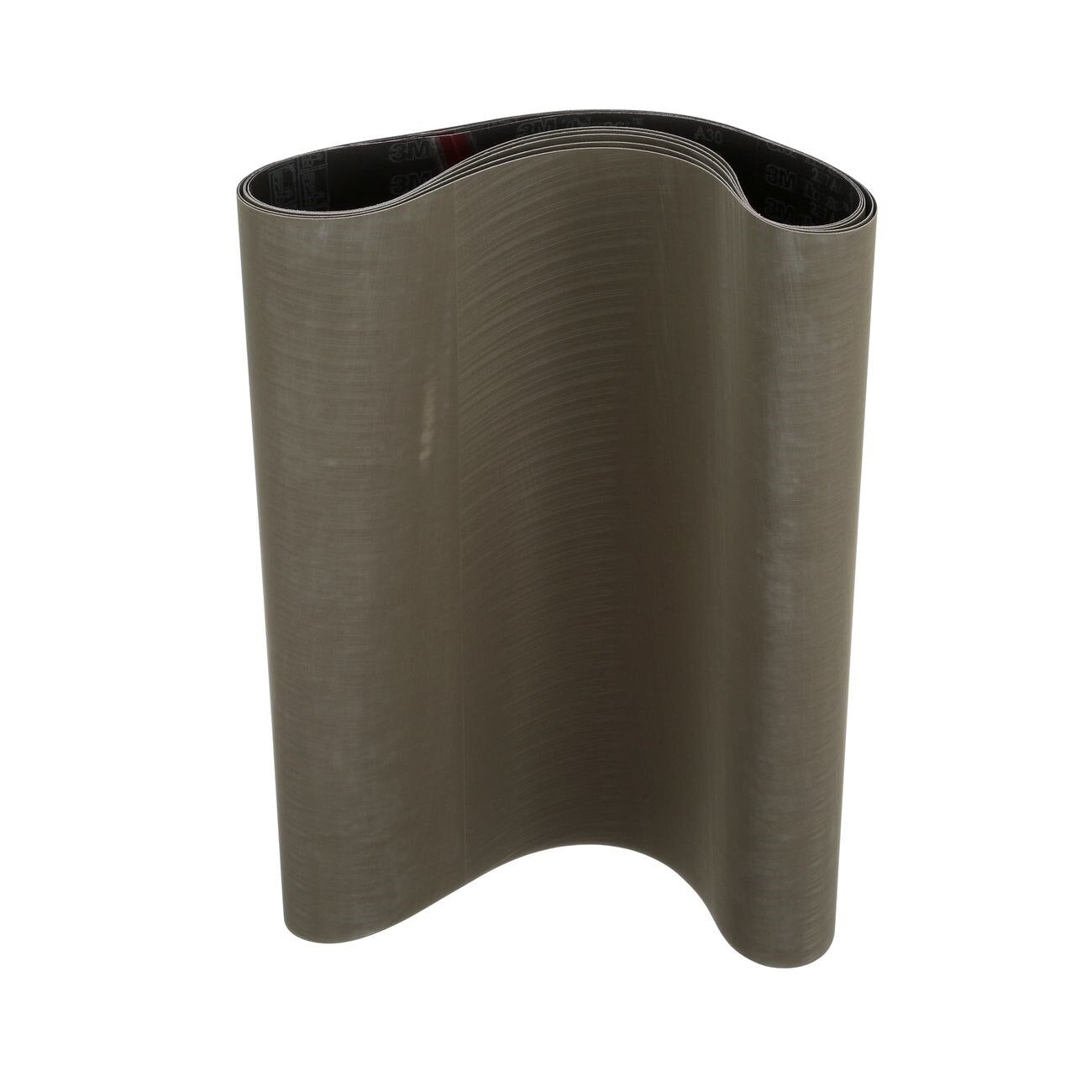

3M 7010299163 Abrasive Belt 98x12 Inch Aluminum Oxide

Product Description

The 3M 7010299163 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing on metal surfaces. It uses 3M microreplication technology in which micron-graded aluminum oxide mineral is formed into precise three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish across the full life of the belt. The belt measures 98 inches in length and 12 inches in width and weighs 1.51 pounds. It is installed and used by metalworking professionals and finishing technicians in production and fabrication environments.

This belt is suited for intermediate finishing and fine polishing operations prior to plating or buffing on metal components. The flexible cloth backing conforms to contoured workpiece surfaces, making it effective on curved or complex geometries. The three-dimensional abrasive structure produces highly repeatable surface finishes, making this belt particularly well-suited for robotic and automated grinding and finishing applications where consistency across a production run is critical.

Key Features

• Microreplication technology forms aluminum oxide mineral into uniform pyramids for consistent cut and finish
• Self-sharpening pyramid structure exposes fresh mineral as the abrasive wears, extending usable life
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion
• Flexible X-weight cloth backing conforms to contoured surfaces for even material removal
• Three-dimensional abrasive design delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt grinding and finishing machines that accept 98-inch by 12-inch abrasive belts. Suitable for ferrous and non-ferrous metal finishing applications prior to plating or buffing operations.

Installation Notes

Install on compatible belt grinders or finishing machines rated for this belt size. Power down and lock out the machine before mounting or removing the belt. Verify belt tracking and tension according to the equipment manufacturer guidelines before resuming operation. Inspect the belt for tears or edge damage before each use.

Technical Specifications

• Belt Length: 98 inches
• Belt Width: 12 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight cloth
• Abrasive Structure: Microreplication (3D pyramid)
• Color: Gray
• Weight: 1.51 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10
• UPC: 00051111687437

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010299163
