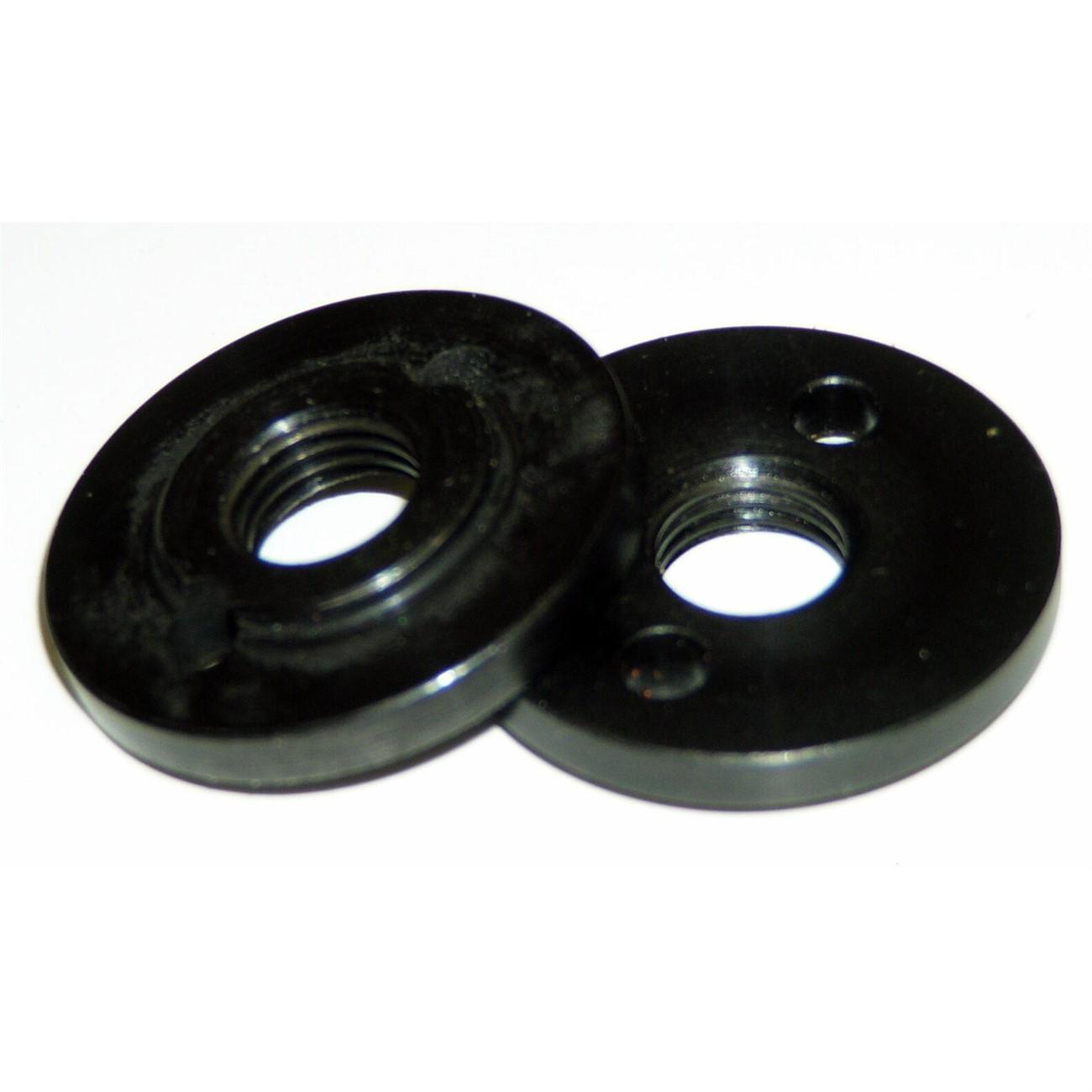

3M 7010298962 Flange Nut 3/8-24 Internal Thread

Product Description

The 3M 7010298962 is a flange nut designed to secure 4 inch x 1/4 inch x 5/8 inch CH 3M Unitized Wheels and DCGW grinding wheels to compatible angle grinders. The nut features a 3/8-24 internal thread and includes a 5/8 inch diameter x 0.062 inch high centering boss that keeps the wheel properly indexed during operation. The 1 inch diameter, 1/8 inch thick flange distributes clamping force evenly and allows wheel use in confined or close-quarter workspaces. This hardware is installed by tradespeople and fabricators working with abrasive wheel systems in metalworking, welding prep, and surface conditioning applications.

This flange nut is intended for use with 4 inch Type 27 (T27) angle grinders, specifically compatible with grinder part numbers 28403 and 28413. It is sold as a set with a minimum order quantity of 5 units, making it suitable for shops and field crews that maintain multiple grinders or rotate wheel inventory regularly. Applicable in industrial, commercial, and trade environments wherever 3M Unitized Wheels or DCGW wheels are run on T27 grinders.

Key Features

• 3/8-24 internal thread matches T27 grinder spindle specifications for grinder PNs 28403 and 28413
• 5/8 inch diameter x 0.062 inch high centering boss for precise wheel indexing and reduced runout
• 1 inch diameter x 1/8 inch thick flange enables wheel operation in close-quarter spaces
• Compatible with 4 inch x 1/4 inch x 5/8 inch CH 3M Unitized Wheels and DCGW wheels
• Sold in sets of 5 to support multi-grinder shops and field service crews

Compatibility

Designed for use with 4 inch x 1/4 inch x 5/8 inch CH 3M Unitized Wheels and DCGW wheels on 4 inch T27 angle grinders, including grinder part numbers 28403 and 28413.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel mounting requirements. Always disconnect or de-energize the grinder before mounting or removing any wheel hardware. Ensure the centering boss seats fully and that the flange makes flush contact with the wheel before applying torque. Follow applicable ANSI B7.1 and tool manufacturer guidelines for abrasive wheel mounting and guard requirements.

Technical Specifications

• Internal Thread: 3/8-24
• Flange Diameter: 1 inch
• Flange Thickness: 1/8 inch
• Centering Boss Diameter: 5/8 inch
• Centering Boss Height: 0.062 inches
• Compatible Wheel Size: 4 inches x 1/4 inches x 5/8 inches
• Weight: 0.15 pounds
• Unit of Measure: Set
• Minimum Order Quantity: 5
• UPC: 00051141287393

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010298962
