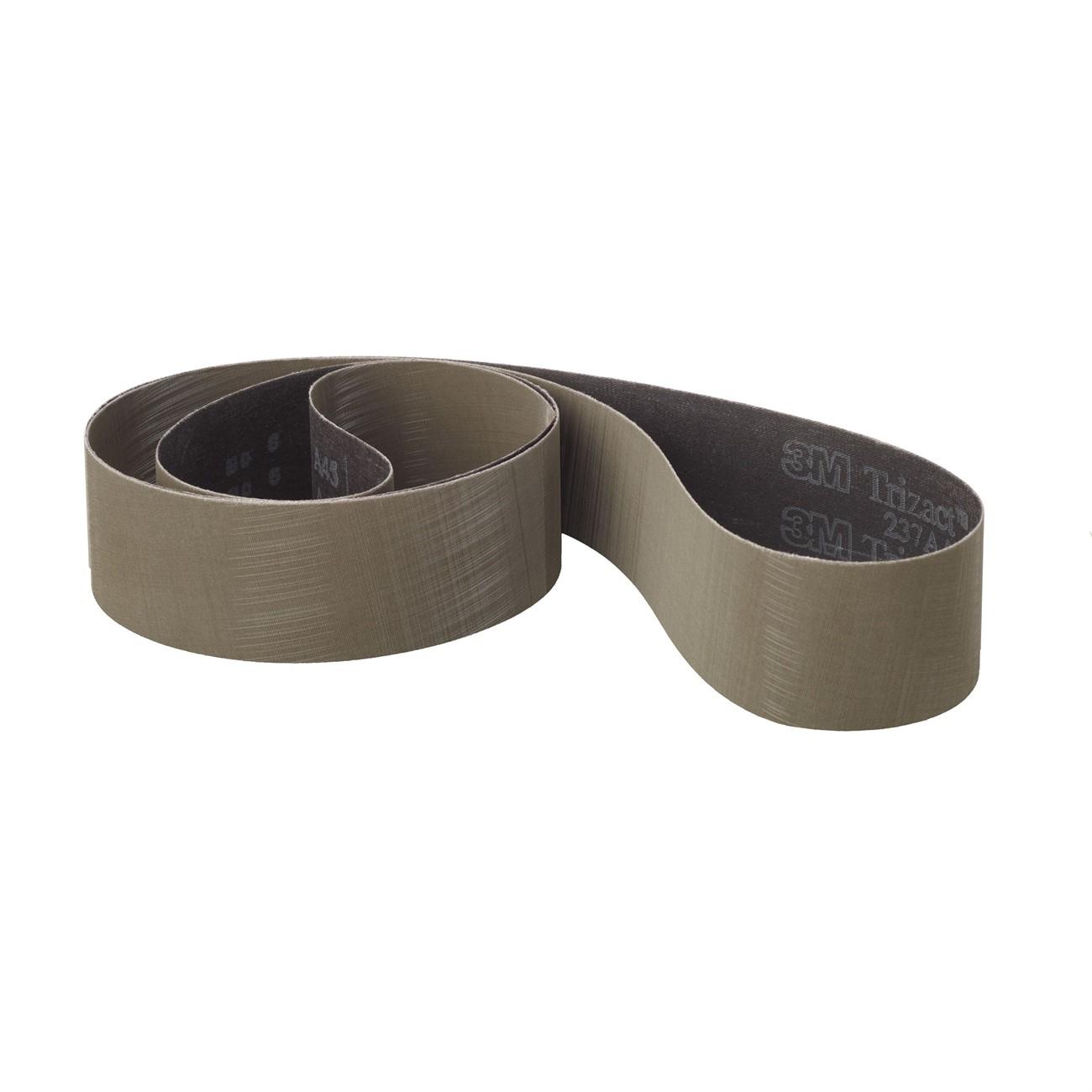

3M 7010298885 Trizact 237AA Abrasive Belt 48x4 Inch

Product Description

The 3M 7010298885 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The flexible cloth backing conforms to contoured workpiece surfaces. This belt measures 48 inches in length and 4 inches in width and weighs approximately 0.33 pounds.

This belt is suited for industrial and shop environments where consistent surface finish is critical before downstream processes such as electroplating or buffing. The three-dimensional abrasive structure makes it particularly well-suited for robotic and automated finishing lines, where repeatable results across large production runs are required. Metal fabricators, tool-and-die shops, and finishing operations handling stainless steel, aluminum, and other metals are the primary users of this product type.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut throughout belt life
• Fresh mineral continuously exposed as pyramids wear, maintaining predictable finish quality
• Runs cooler than conventional coated abrasives, reducing heat buildup on workpiece
• Flexible X-weight cloth backing conforms to contoured surfaces
• Produces finer surface finishes than conventional electrostatically coated abrasives
• Three-dimensional design supports repeatable results in robotic finishing applications

Compatibility

Designed for use on belt grinders, finishing machines, and automated finishing systems that accept 48-inch by 4-inch abrasive belts. Verify machine belt-tensioning and tracking specifications before installation.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Power down and lock out the machine before mounting or removing the belt. Confirm belt tracking direction, as most coated abrasive belts are directional. Inspect the contact wheel and platen for wear or debris before installing a new belt to avoid premature failure.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide (microreplication grade)
• Backing Material: X-weight cloth
• Abrasive Color: Gray
• Weight: 0.33 pounds
• Unit of Measure: Each
• UPC: 00051119682793

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010298885
