3M 7010298877 Abrasive Belt 148 Inch Ao Cloth Gray

Product Description

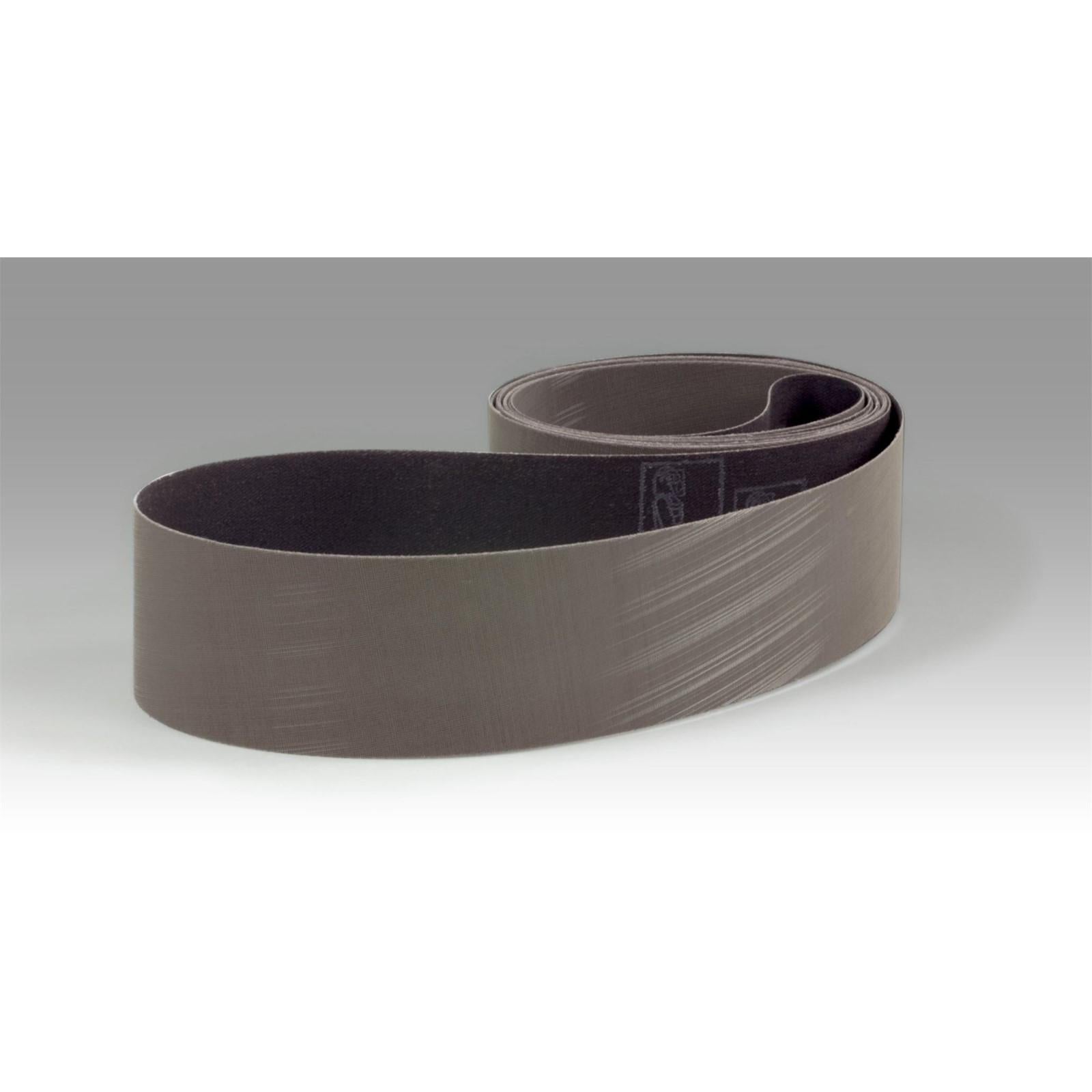

The 3M 7010298877 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing on metal surfaces prior to plating or buffing operations. It uses 3M microreplication technology in which micron-graded aluminum oxide abrasive particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramid tips wear during use, fresh, sharp mineral is continuously exposed. This self-sharpening action produces a consistent cut rate and a predictable, fine surface finish throughout the life of the belt. The belt measures 148 inches in length and 5 inches in width and weighs 0.79 pounds.

This belt is suited for robotic and automated grinding applications where finish consistency across high part volumes is required. It is also used in manual and semi-automated metal fabrication environments for intermediate stock removal and pre-plate or pre-buff surface preparation. The flexible X-weight cloth backing conforms to contoured workpiece profiles, making it effective on both flat and irregular geometries. Typical end-use industries include aerospace, automotive, and general metal fabrication shops where tight surface finish tolerances must be held.

Key Features

• Microreplication technology forms aluminum oxide into pyramid structures that self-sharpen as they wear
• Consistent cut and finish throughout belt life, well-suited for robotic and automated applications
• X-weight cloth backing provides flexibility for finishing over contoured surfaces
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Designed for intermediate finishing and fine polishing prior to plating or buffing
• Runs cooler than conventional abrasives, reducing heat-related workpiece distortion

Compatibility

Designed for use on contact-wheel and platen belt grinding machines that accept a 148-inch by 5-inch abrasive belt. Verify drive wheel and machine speed ratings before installation.

Installation Notes

Installation should be performed by a qualified grinding or fabrication technician following the machine manufacturer's belt-change procedures. Power down and lock out the grinder before removing the worn belt or installing a new one. Confirm belt tracking and tension per the machine manufacturer's specifications before resuming operation. Inspect the belt for tears or edge damage before each use and remove it from service if damage is found.

Technical Specifications

• Belt Length: 148 inches
• Belt Width: 5 inches
• Abrasive Mineral: Aluminum Oxide (AO)
• Backing Material: X-weight Cloth
• Color: Gray
• Weight: 0.79 pounds
• UOM: Each
• UPC: 00051115279065

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010298877
