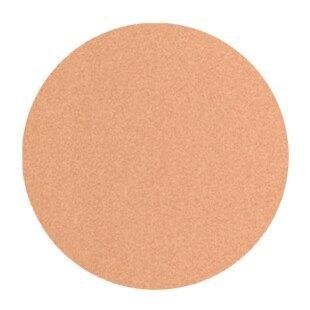

3M 7010298836 Diamond Lapping Film Disc 12 Inch

Product Description

The 3M 7010298836 is a 12-inch diameter diamond lapping film disc engineered for precision surface finishing on extremely hard materials. Precisely graded diamond particles are coated onto a durable polyester film backing, delivering a consistent and repeatable finish with each use. The disc is available in several grades ranging from 0.10 to 30.0 micron, allowing technicians and fabricators to select the appropriate cut for their specific application. It is used in professional settings where surface geometry, flatness, and edge definition are critical to part performance.

This lapping disc is suited for applications involving extremely hard substrates such as ceramics, carbides, optical components, and precision-machined metal surfaces. The polyester film construction provides dimensional stability during use, supporting flatter surface results and sharper edge retention. The 12-inch diameter format fits standard lapping machines used in industrial and precision manufacturing environments. Minimum order quantity is 10 discs per order.

Key Features

• Precisely graded diamond abrasive particles for a uniform, repeatable finish
• Polyester film backing provides dimensional stability and surface flatness
• Available in grades from 0.10 to 30.0 micron for fine to moderate material removal
• Fast cut rate supports increased throughput on hard materials
• Produces flatter surfaces and sharper edges compared to conventional abrasives
• Available in disc, sheet, and roll formats

Compatibility

Designed for use on extremely hard materials including ceramics, carbides, and precision metal components; fits standard 12-inch diameter lapping equipment used in industrial and precision finishing applications.

Installation Notes

This disc is installed by trained technicians or machinists on compatible lapping machines. Ensure the lapping machine platen is clean and free of debris before mounting the disc to maintain proper adhesion and surface contact. Follow equipment manufacturer guidelines for disc mounting and applied load. Inspect the disc before use and replace if the abrasive surface shows signs of loading or uneven wear.

Technical Specifications

• Diameter: 12 inches
• Abrasive Type: Diamond
• Backing Material: Polyester Film
• Grade Range: 0.10 to 30.0 micron
• Unit of Measure: Each
• Minimum Order Quantity: 10
• Weight: 0.06 pounds
• UPC: 00051111561614

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010298836
