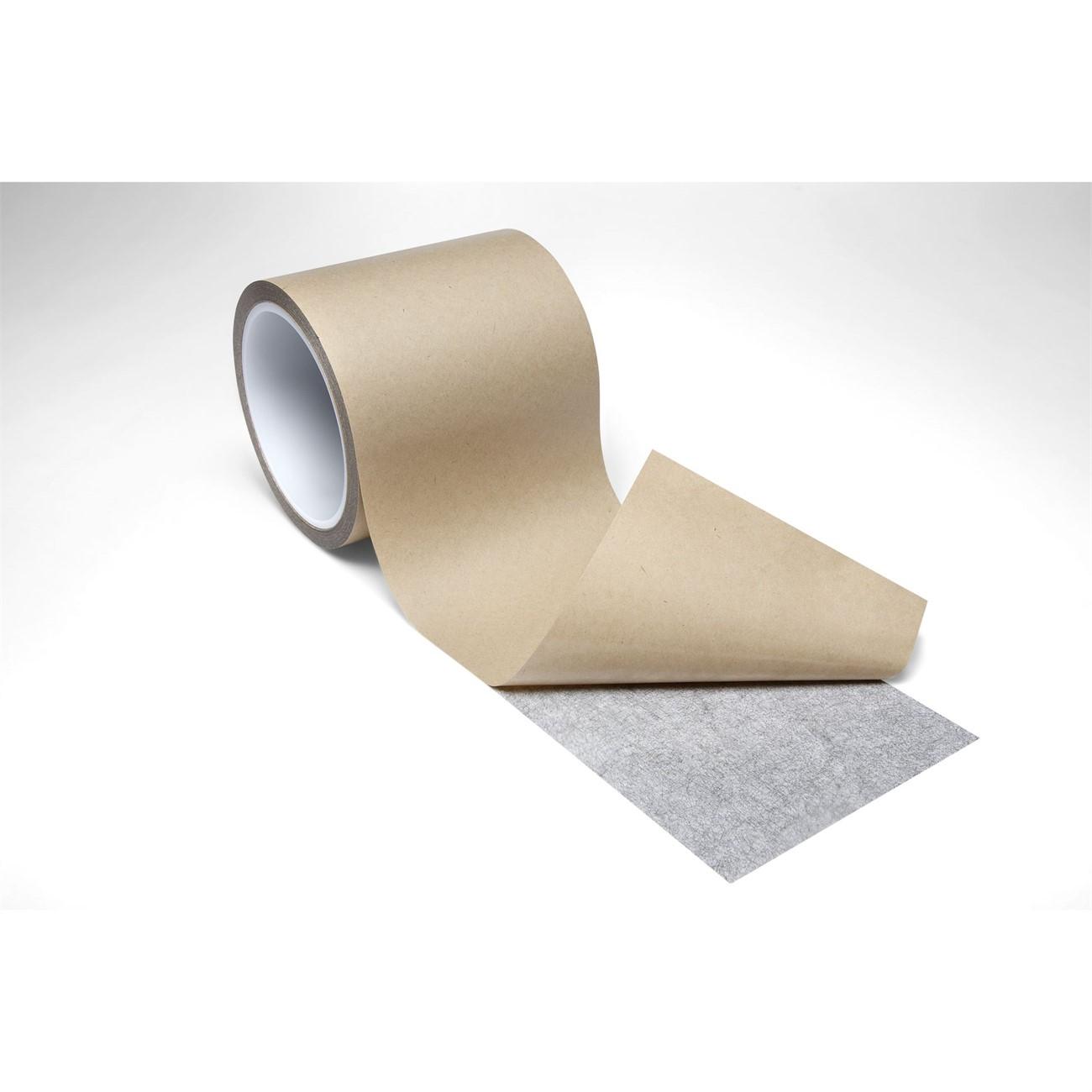

3M 7010295401 Electrically Conductive Tape 4in X 36yd

Product Description

The 3M 7010295401 is an XYZ-axis electrically conductive pressure-sensitive tape designed for EMI and RFI shielding in demanding electronic applications. It uses a pressure-sensitive acrylic adhesive that bonds through the X, Y, and Z axes, enabling consistent electrical conductivity across the full contact surface. The tape measures 4 inches wide by 36 yards long and carries a total thickness of 3.0 mil, backed by a 4.0 mil polycoated kraft paper liner. It offers medium temperature resistance and high solvent resistance, making it suitable for environments where chemical exposure is a concern. Electronics technicians and assembly professionals install this tape where reliable electromagnetic shielding and grounding continuity are required.

This tape is intended for use in electronics manufacturing, PCB shielding, device assembly, and enclosure grounding applications. It performs on both high surface energy (HSE) and low surface energy (LSE) substrates, broadening its range of compatible surfaces. It is sold by the roll with a minimum order quantity of 2 rolls, making it appropriate for production environments where multiple runs are needed. Applications include grounding straps, shielding gaskets, and conductive bonding between components in professional electronic assemblies.

Key Features

• XYZ-axis conductivity provides electrical continuity in all three dimensions through the adhesive layer
• Pressure-sensitive acrylic adhesive bonds to both high and low surface energy substrates
• 3.0 mil tape thickness with 4.0 mil polycoated kraft paper liner for controlled application
• Medium temperature and high solvent resistance for use in chemically active environments
• Designed for EMI and RFI shielding in professional electronic assemblies
• Available by the roll in minimum quantities of 2

Compatibility

Designed for use as an electrically conductive shielding and grounding tape in professional electronics assembly and enclosure shielding applications where XYZ-axis conductivity is required.

Installation Notes

Installation is typically performed by electronics technicians or assembly professionals. Clean and dry all bonding surfaces thoroughly before applying the tape to ensure full adhesive contact and reliable conductivity. Peel the polycoated kraft liner cleanly and apply with firm, even pressure across the full tape width. No soldering or tooling is required, but surface prep is critical to achieving rated electrical performance.

Technical Specifications

• Tape Width: 4 inches
• Tape Length: 36 yards
• Tape Thickness: 3.0 mil
• Liner Thickness: 4.0 mil
• Liner Material: Polycoated kraft paper
• Adhesive Type: Pressure-sensitive acrylic
• Conductivity Axes: XYZ
• Temperature Resistance: Medium
• Solvent Resistance: High
• Weight: 2.5 pounds
• Unit of Measure: Roll
• Minimum Order Quantity: 2
• UPC: 00021200962226

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010295401
