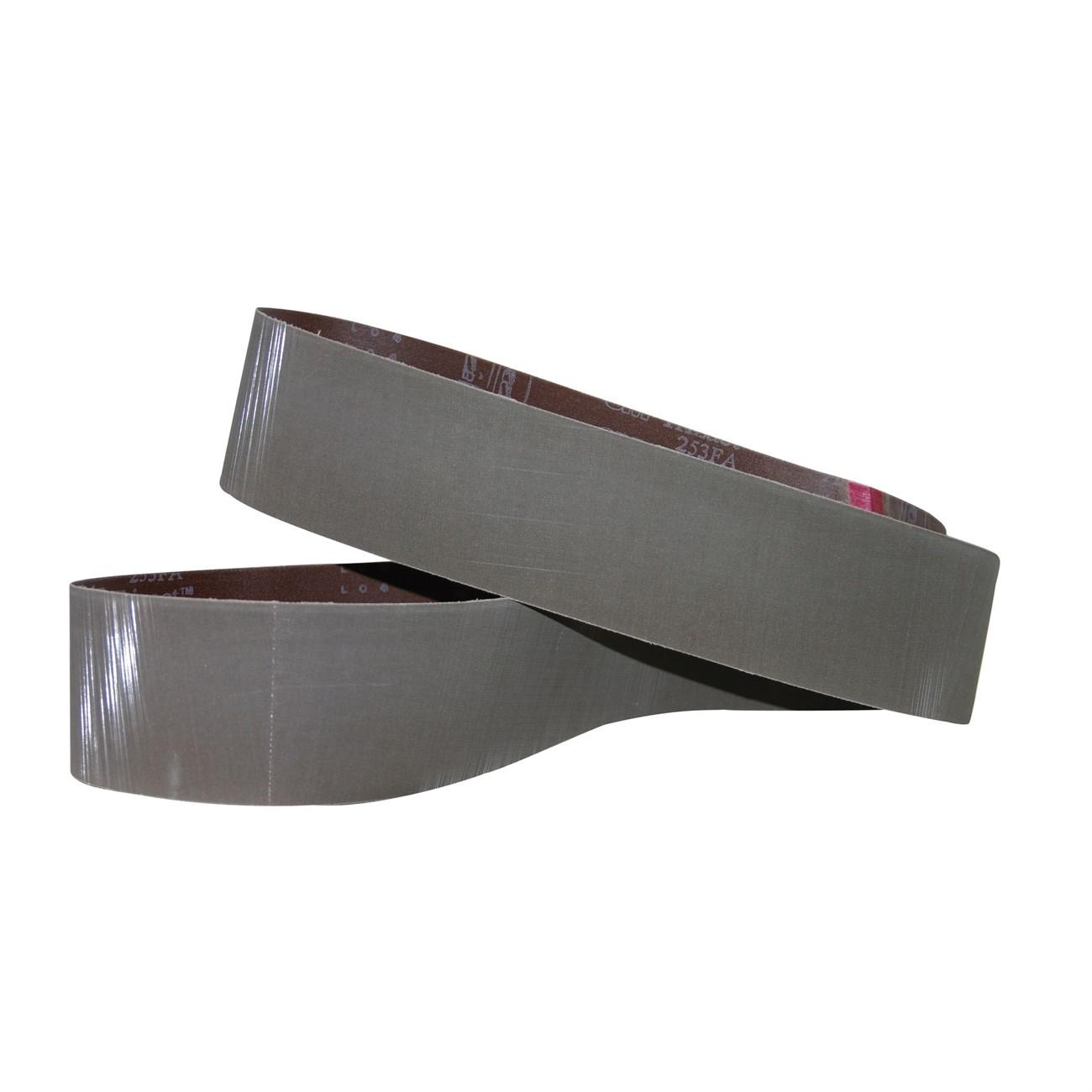

3M 7010295225 Abrasive Belt 132x6 Inch Aluminum Oxide

Product Description

The 3M 7010295225 is a Trizact 253FA abrasive belt designed for flat finishing and centerless grinding applications across a wide range of metals. It uses microreplicated aluminum oxide mineral bonded with resin onto an XF-weight polyester cloth backing that is waterproof and built to handle demanding wet or dry use. The belt measures 132 inches in length and 6 inches in width. It is intended for intermediate and fine finishing work where consistent surface finish and reduced risk of uneven material removal are priorities. Metalworking professionals and fabricators are the primary installers and users of this belt.

This belt is suited for wet intermediate and fine finishing on metals including stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass. It performs in both flat finishing and centerless applications, making it a practical choice for production grinding environments and fabrication shops. The XF-weight backing provides enough rigidity for flat stock work while still conforming to irregular or contoured profiles when needed.

Key Features

• Microreplicated aluminum oxide mineral for consistent cut rate and reduced risk of uneven finishes
• XF-weight polyester cloth backing is waterproof and supports rugged wet or dry use
• Suited for intermediate and fine finishing stages in metalworking workflows
• Compatible with flat finishing and centerless grinding machine configurations
• Works across a broad range of metals including stainless steel, aluminum, copper, and nickel alloys

Compatibility

Designed for use on metals including stainless steel, carbon steel, aluminum, nickel alloys, cobalt steel, copper, and brass in flat finishing and centerless grinding applications.

Installation Notes

Belt installation should be performed by a qualified operator with the grinding machine powered down and locked out before mounting. Verify belt tracking and tension according to the machine manufacturer's specifications before resuming operation. Inspect the belt splice and backing for damage before each use. Follow applicable shop safety standards for abrasive wheel and belt equipment.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 6 inches
• Abrasive Mineral: Aluminum Oxide (Microreplicated)
• Backing Material: XF-Weight Polyester Cloth
• Bond Type: Resin
• Backing Feature: Waterproof
• Application: Wet Intermediate and Fine Finishing, Centerless Grinding
• Weight: 1 pound
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010295225
