3M 7010295221 Trizact 237AA Abrasive Belt 132x3 Inch

Product Description

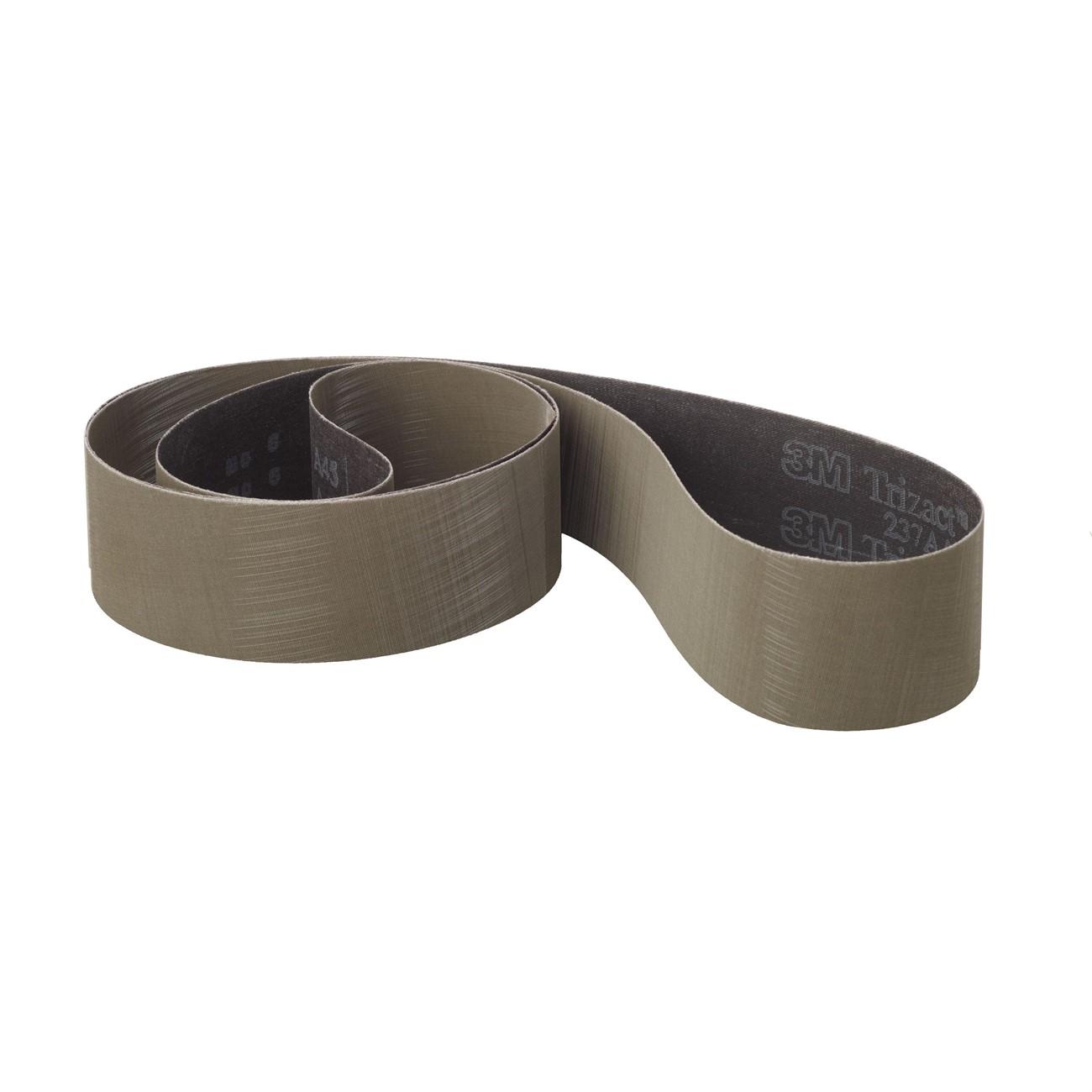

The 3M 7010295221 is a Trizact 237AA coated abrasive belt engineered for intermediate finishing and fine polishing applications in metalworking and fabrication environments. It measures 132 inches long by 3 inches wide and uses 3M microreplication technology to form micron-graded aluminum oxide particles into three-dimensional pyramidal structures bonded to an X-weight cloth backing. As the pyramids wear during use, fresh cutting mineral is continuously exposed, delivering a consistent cut rate and predictable surface finish throughout the life of the belt. Licensed metalworking technicians, fabricators, and finishing specialists are the primary installers and users of this belt.

This belt is suited for robotic and automated finishing lines as well as manual grinding and polishing operations on metal workpieces. The flexible cloth backing conforms to contoured surfaces, making it effective on curved or complex geometries. Typical applications include intermediate stock removal and fine polishing on parts destined for plating or buffing. The three-dimensional abrasive structure produces finer, more uniform finishes than conventional electrostatically coated abrasive belts, making it a reliable choice where surface consistency is critical before downstream finishing processes.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut and finish
• Fresh mineral is continuously exposed as pyramids wear, extending usable belt life
• X-weight cloth backing provides flexibility for finishing over contoured and complex surfaces
• Produces finer finishes than conventional electrostatically coated abrasives
• Three-dimensional abrasive design delivers uniform surface finish results in robotic finishing applications
• Suited for intermediate finishing and fine polishing prior to plating or buffing operations

Compatibility

Designed for use on belt grinders and automated finishing machines that accept a 132-inch by 3-inch abrasive belt configuration for metalworking and surface finishing applications.

Installation Notes

Belt installation should be performed by qualified metalworking or finishing technicians following equipment manufacturer guidelines. Power down and lock out the belt grinder or finishing machine before mounting or removing the belt. Verify belt tracking and tension per the machine manufacturer specifications before resuming operation. Inspect the belt for tears or edge damage before each use and replace if integrity is compromised.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 3 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Type: Trizact Microreplication
• Color: Gray
• Weight: 0.61 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010295221
