3M 7010295219 Trizact 217EA Abrasive Belt 132x2 Inch Ao

Product Description

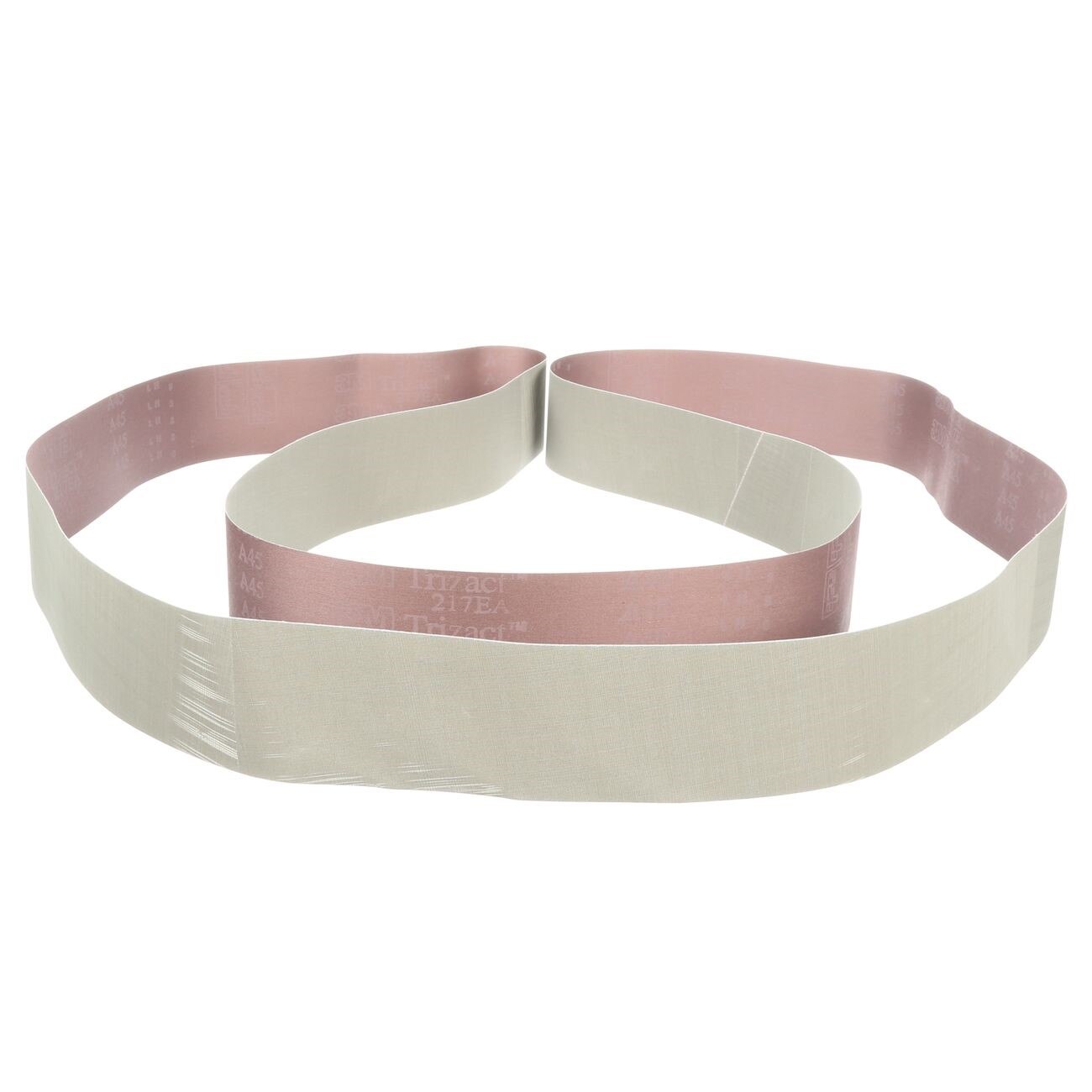

The 3M 7010295219 is a Trizact 217EA abrasive belt designed for intermediate finishing and fine polishing applications. It uses proprietary microreplication technology in which micron-graded aluminum oxide particles are formed into precisely shaped pyramids and bonded to a JE-weight rayon cloth backing. As the pyramidal structures wear during use, fresh, sharp mineral is continuously exposed, producing a consistent cut rate and predictable finish quality from start to finish. This belt is commonly installed on stationary and robotic belt grinding machines used in metal finishing shops and fabrication environments.

This belt is suited for finishing metals prior to plating, buffing, or final surface treatment. The flexible JE-weight rayon backing conforms to contoured and curved workpiece surfaces, making it effective for both flat-stock and profile finishing. Its consistency and extended abrasive life make it a reliable choice for automated and robotic grinding setups where repeatable results are required across high-volume production runs.

Key Features

• Microreplicated aluminum oxide pyramids continuously expose fresh mineral as they wear, maintaining consistent cut throughout belt life
• JE-weight rayon cloth backing flexes over contoured surfaces for uniform finishing on complex geometries
• Produces finer surface finishes than conventional coated abrasives of comparable grit
• Grinding aid built into the construction helps reduce heat buildup, minimizing risk of heat-related warping or discoloration
• Designed for light-pressure applications where controlled abrasive breakdown is essential to finish quality
• Well-suited for robotic and automated belt grinding applications due to long, predictable abrasive life

Compatibility

Designed as a replacement-style abrasive belt for stationary belt grinders and automated finishing machines that accept 132-inch by 2-inch belts.

Installation Notes

Installation should be performed by qualified machine operators or maintenance personnel familiar with belt grinder equipment. Power down and lock out the machine before changing belts. Verify belt tracking and tension according to the equipment manufacturers guidelines before resuming operation. Ensure the belt is seated correctly on the contact wheel and platen before powering on.

Technical Specifications

• Belt Length: 132 inches
• Belt Width: 2 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: JE-weight Rayon Cloth
• Abrasive Technology: Trizact Microreplication
• Color: Tan
• Weight: 0.33 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010295219
