3M 7010295210 Trizact 307EA Abrasive Belt 118x4 Inch Ao

Product Description

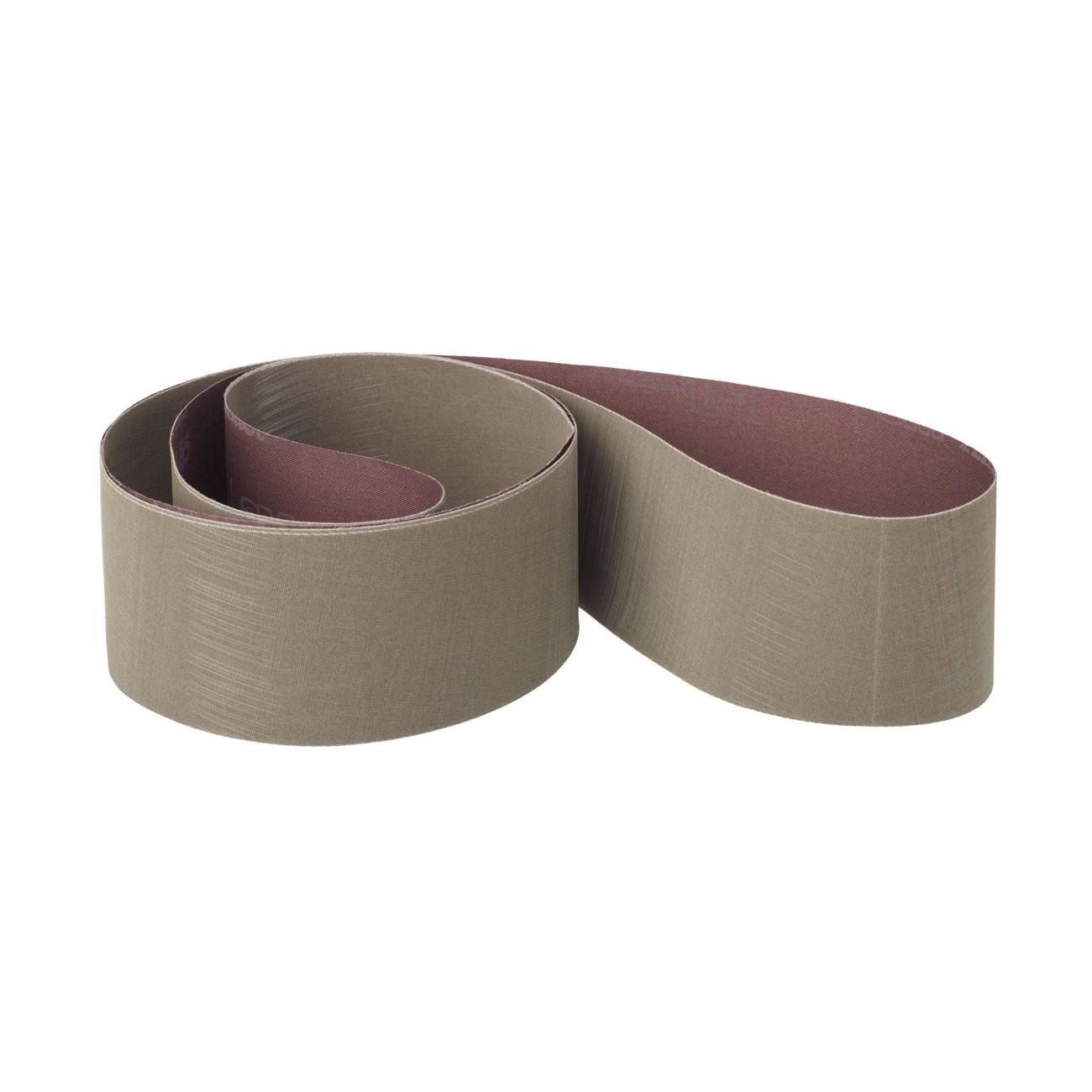

The 3M 7010295210 is a Trizact 307EA cloth abrasive belt designed for intermediate finishing and fine polishing applications. It uses microreplication technology in which micron-graded aluminum oxide particles are formed into uniform pyramidal structures and bonded to a flexible rayon cloth backing. As the pyramids wear during use, fresh sharp mineral is continuously exposed, delivering a consistent cut rate and a predictable fine finish from start to end of belt life. At 118 inches long and 4 inches wide, this belt fits wide belt sanders and automated finishing equipment used in metalworking and fabrication environments.

This belt is suited for metal finishing operations ahead of plating, buffing, or final surface preparation. The flexible rayon backing conforms to contoured surfaces, making it effective on curved or complex workpiece geometries. The three-dimensional abrasive structure supports consistent, repeatable results in robotic and automated sanding systems where finish uniformity across a production run is critical. Fabrication shops, metalworking facilities, and industrial finishing operations are the primary environments for this belt.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures for consistent cut throughout belt life
• Fresh mineral exposed as pyramids wear, reducing glazing and heat buildup compared to conventional coated abrasives
• Flexible rayon cloth backing conforms to contoured and curved surfaces
• Produces finer finishes than conventional electrostatically coated abrasive belts
• Three-dimensional abrasive design supports repeatable results in robotic and automated finishing applications
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on wide belt sanders and automated or robotic finishing equipment that accept 118-inch by 4-inch abrasive belts in metalworking and industrial surface finishing applications.

Installation Notes

Belt installation and tensioning should be performed by qualified machine operators following the equipment manufacturer's guidelines. Power down and de-energize the sanding machine completely before mounting or removing the belt. Verify belt tracking alignment before resuming operation to prevent edge wear or belt damage. Inspect the platen and contact drum for wear or debris before installing a new belt.

Technical Specifications

• Belt Length: 118 inches
• Belt Width: 4 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: Rayon Cloth
• Abrasive Type: Trizact 307EA Microreplication
• Color: Gray
• Weight: 0.48 pounds
• Unit of Measure: Each
• UPC: 00051111671078

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010295210
