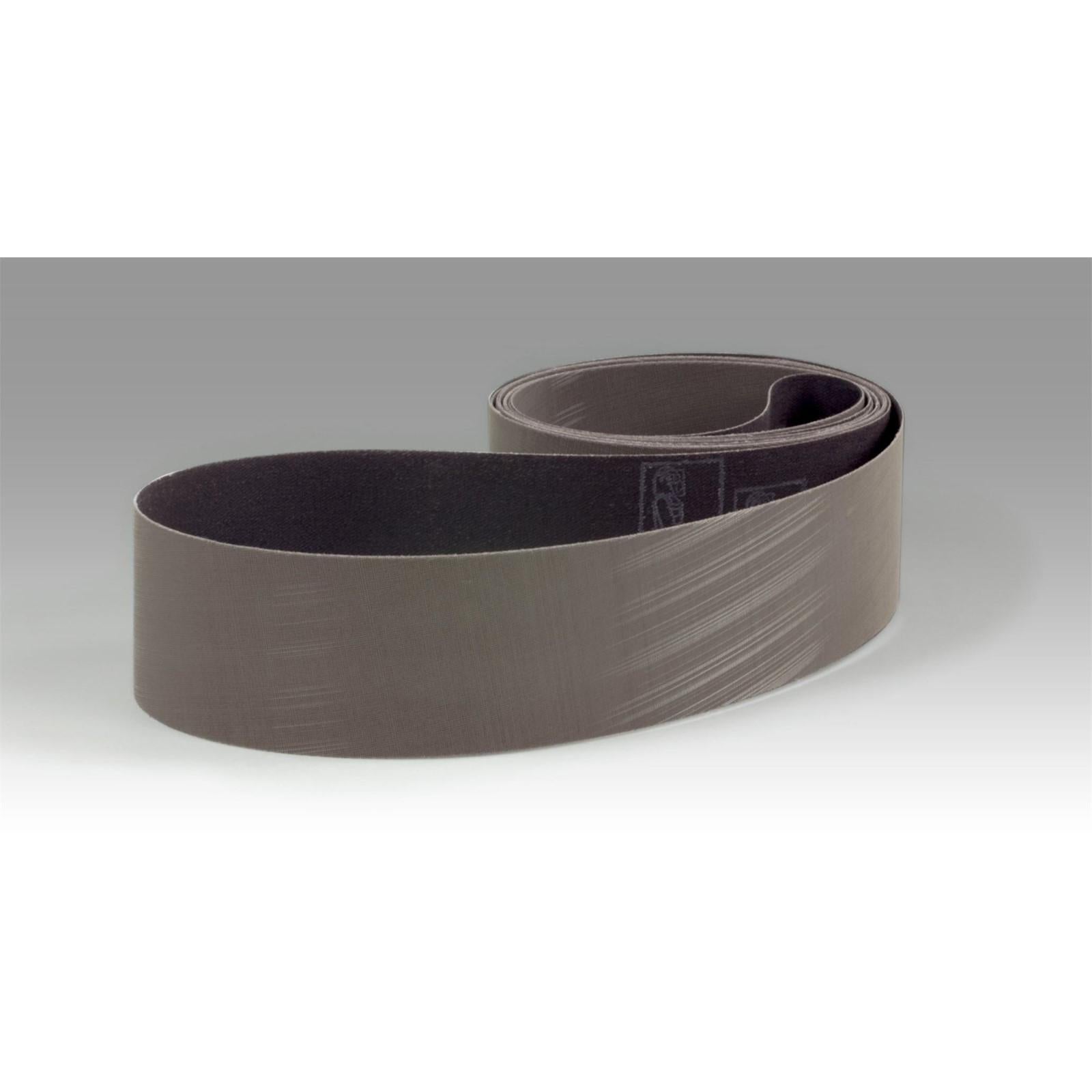

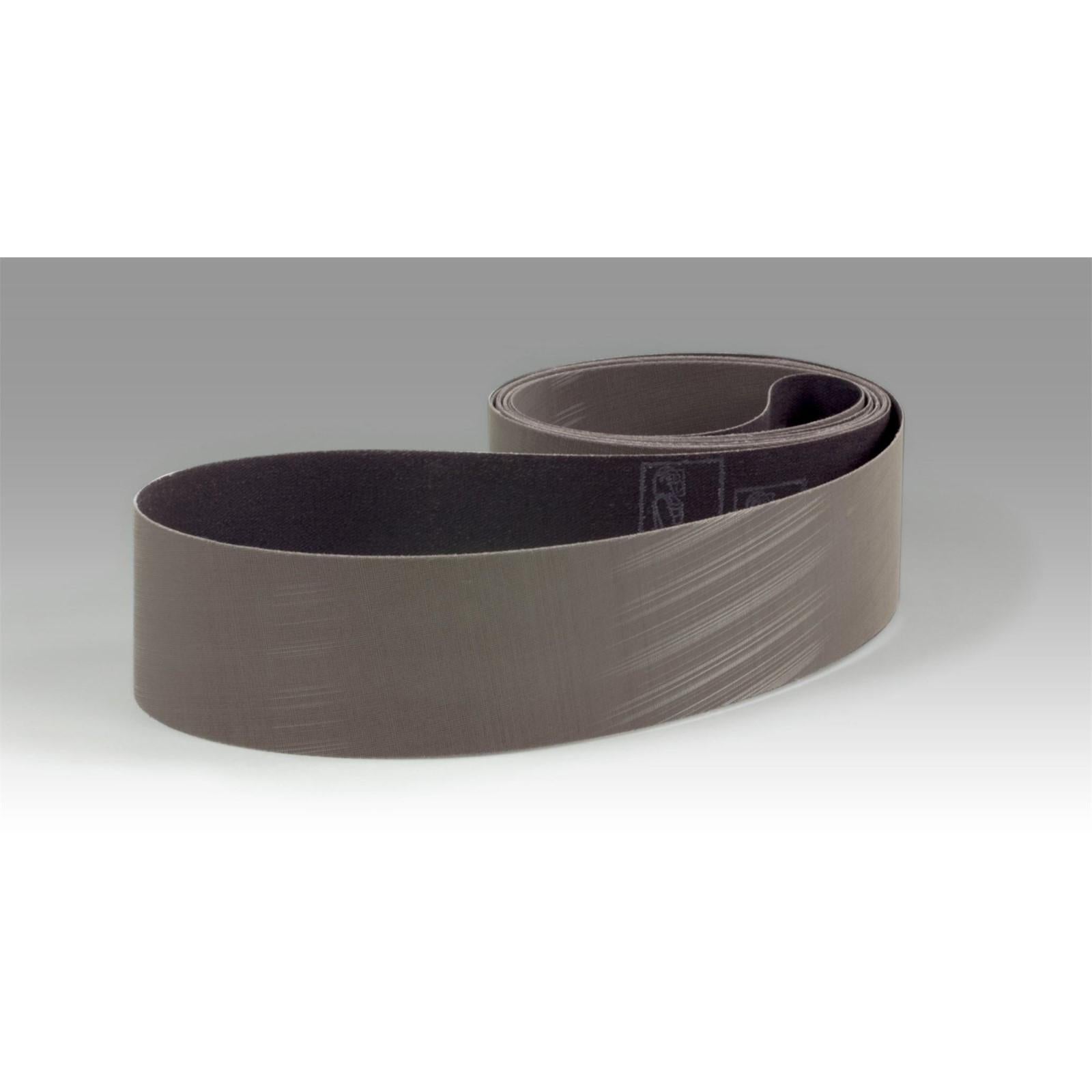

3M 7010295209 Abrasive Belt 132 Inch L 4 Inch W Ao Cloth

Product Description

The 3M 7010295209 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing in industrial and manufacturing environments. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X weight cloth backing. As the pyramids wear during use, fresh, sharp mineral is continuously exposed at the cutting surface. This self-renewing action produces a consistent cut rate and a predictable, fine finish throughout the life of the belt. Measuring 132 inches in length and 4 inches in width, this belt is sized for wide belt and stroke sanders used in production finishing operations.

This belt is suited for intermediate finishing and fine polishing steps prior to plating or buffing operations. The flexible cloth backing conforms to contoured workpiece surfaces, making it effective for both flat stock and profiled parts. Its three-dimensional abrasive structure delivers consistent finish results in automated and robotic grinding applications where repeatable surface quality is required across high production volumes. Common applications include metal fabrication, aerospace component finishing, and precision part preparation.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening abrasive pyramids for consistent cut and finish
• Self-renewing mineral exposure keeps the belt running cooler than conventional coated abrasives
• X weight cloth backing provides flexibility for finishing over contours and complex profiles
• Produces finer surface finishes than conventionally electrostatically coated abrasive belts
• Three-dimensional abrasive design supports repeatable, predictable finishes in robotic and automated applications
• Designed for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on wide belt sanders, stroke sanders, and automated grinding systems that accept belts measuring 132 inches in length and 4 inches in width. Suitable for ferrous and non-ferrous metals in intermediate finishing applications.

Installation Notes

Belt installation should be performed by a trained machine operator or maintenance technician following the equipment manufacturer's belt-change procedures. Always power down and lock out the sanding machine before replacing the belt. Verify belt tracking alignment and tension before resuming operation. Inspect the platen and contact drum for wear or debris before mounting a new belt.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide
• Grade Series: 237AA
• Backing Material: X Weight Cloth
• Belt Length: 132 inches
• Belt Width: 4 inches
• Color: Gray
• Weight: 0.64 pounds
• UPC: 00051111669419

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010295209
