3M 7010294522 Flap Wheel 747D 2 in 60 Grit Ceramic

Product Description

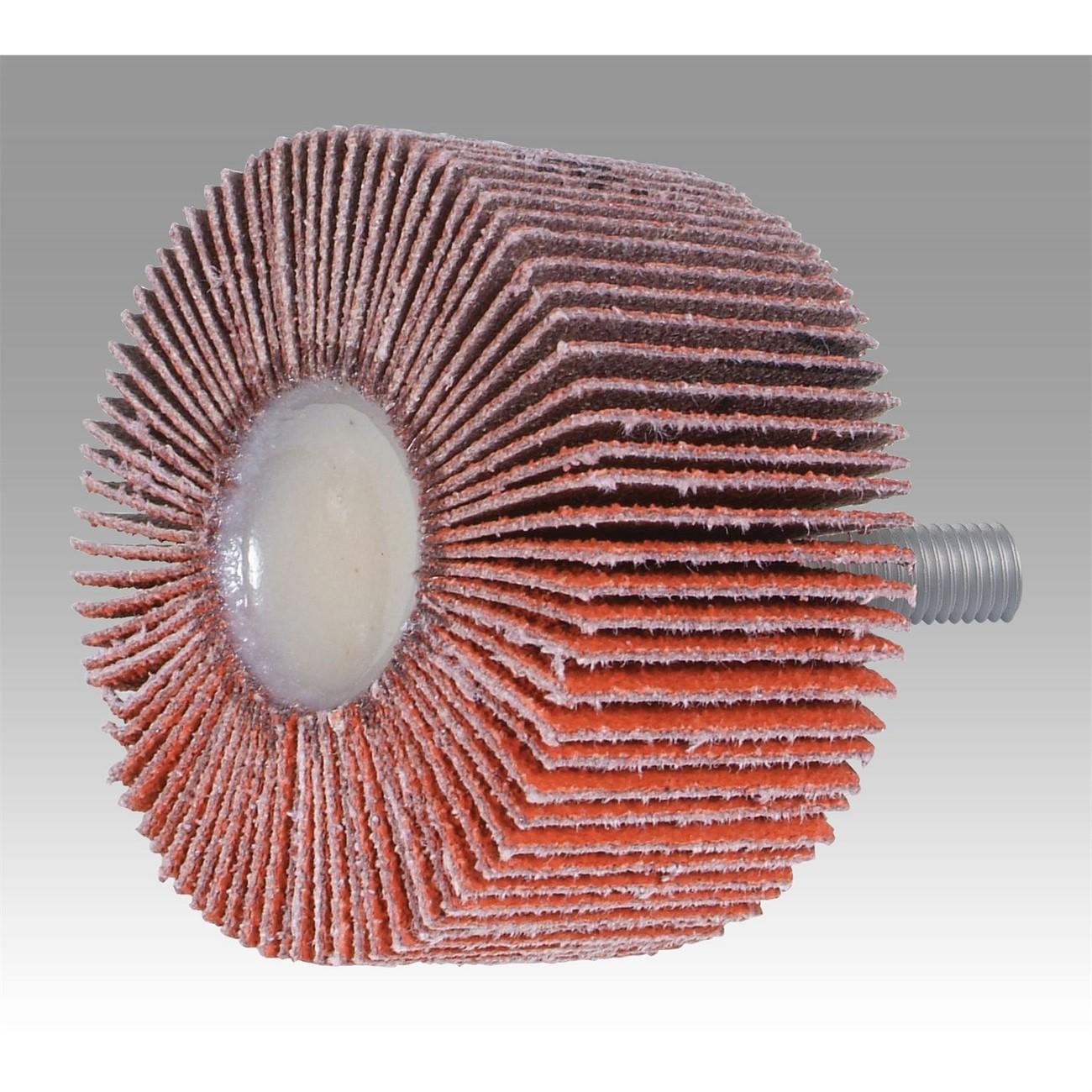

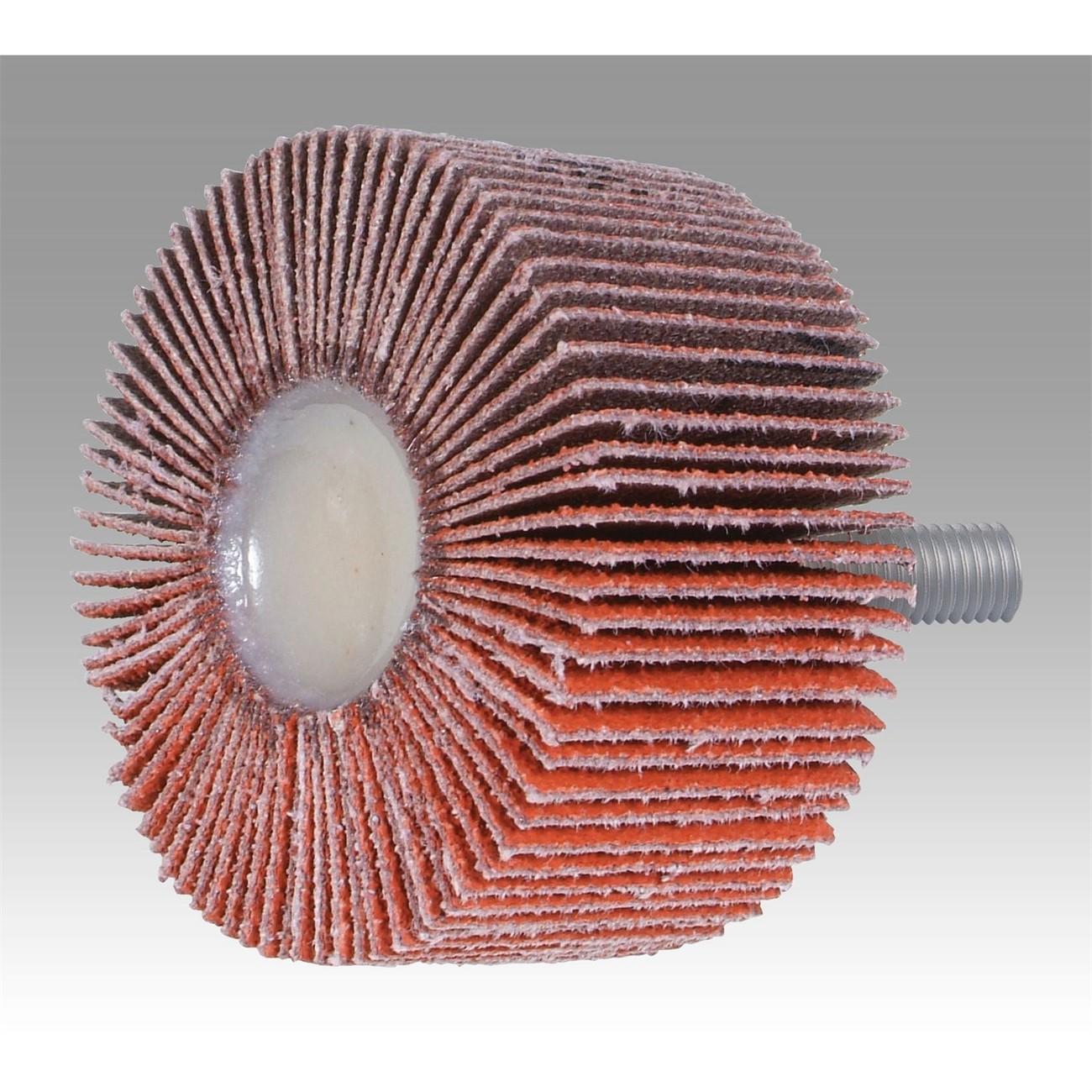

The 3M 7010294522 is a 2-inch diameter ceramic flap wheel in the 747D series, designed for light grinding, blending, deburring, and polishing on metal surfaces. It features ceramic aluminum oxide abrasive flaps bonded to an X-weight cotton cloth backing. The flap construction allows the wheel to conform to rounded or irregular workpiece profiles, producing a smooth, consistent finish. A built-in grind-aid helps reduce heat buildup during use on stainless steel and other metals. The 60-grit rating makes it suitable for moderate material removal and surface preparation tasks common in fabrication and finishing work.

This flap wheel is used in metal fabrication, welding shops, and general industrial finishing environments. It is well suited for applications on pipes, tubes, curved surfaces, and irregular profiles where a rigid abrasive would lose contact with the workpiece. Typical users include metal fabricators, welders, maintenance technicians, and machinists working on ferrous and non-ferrous metals. The wheel is sold individually and is intended for use with compatible rotary power tools and mandrel setups.

Key Features

• Ceramic aluminum oxide blend provides strong cut rate and extended abrasive life
• X-weight cotton backing handles aggressive sanding and grinding without breakdown
• Resin bond resists thermal and chemical deterioration for longer wheel service life
• Flap design conforms to rounded and irregular surfaces for smooth, even finishing
• Grind-aid additive reduces heat on stainless steel and other metals during operation
• 60-grit coated cloth construction suited for blending, deburring, and light grinding

Compatibility

Designed as a standard flap wheel replacement for rotary tool and mandrel setups used in metal grinding, blending, and finishing applications.

Installation Notes

Installation is performed by trade professionals and experienced fabricators using appropriate rotary power tools fitted with a compatible mandrel. Verify that the tool RPM rating does not exceed the maximum rated speed of the wheel before mounting. Ensure the workpiece is secured and personal protective equipment including eye protection and gloves is worn during operation. Disconnect power to the tool before mounting or removing the wheel.

Technical Specifications

• Diameter: 2 inches
• Grit: 60
• Abrasive Material: Ceramic Aluminum Oxide
• Backing Material: X-Weight Cotton Cloth
• Bond Type: Resin
• Coating: Coated
• Weight: 0.07 pounds
• Package Length: 5.5 inches
• Package Width: 4.5 inches
• Package Height: 5 inches
• UPC: 00051144832729

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010294522
