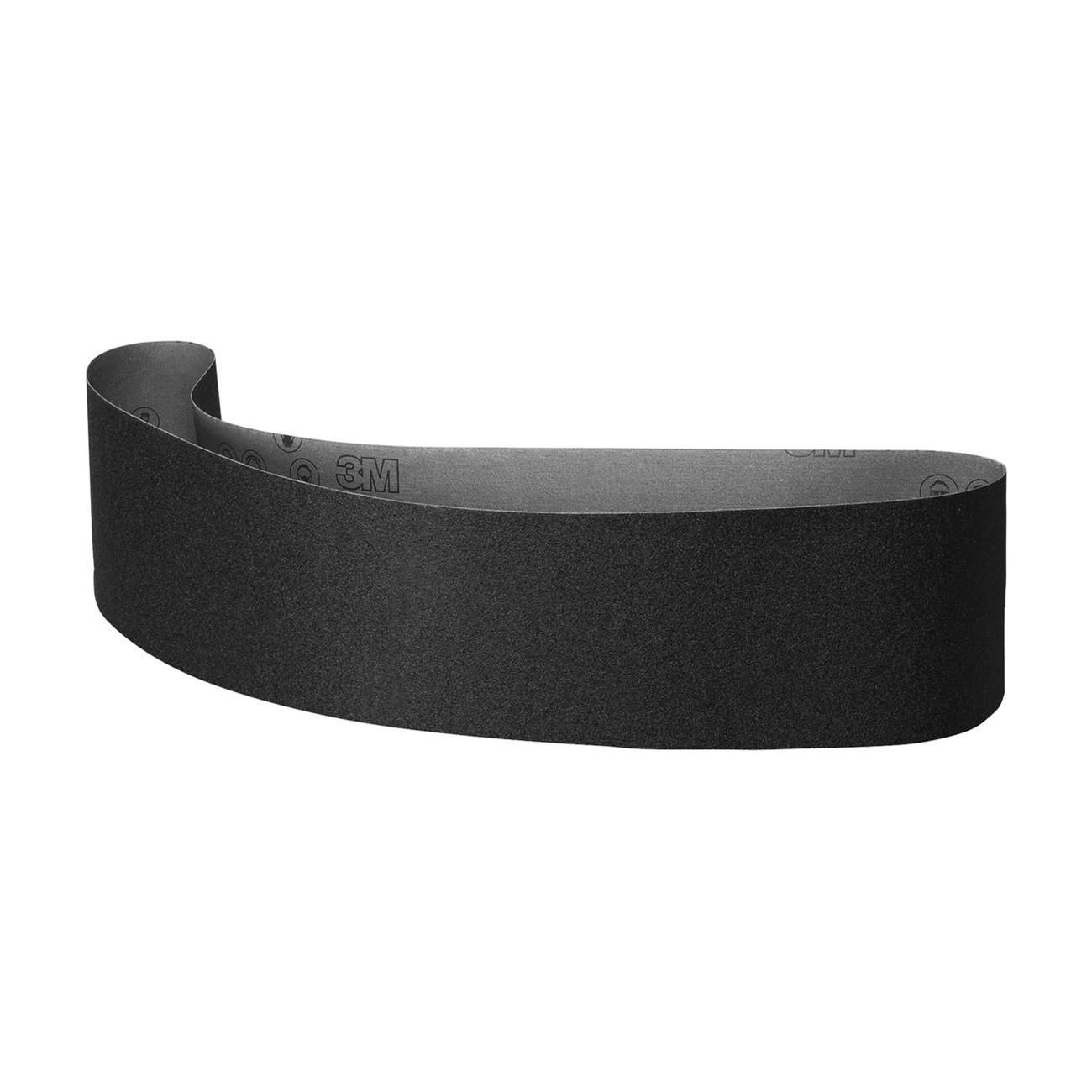

3M 7010294502 Abrasive Sanding Belt 150 Grit 72x4 Inch

Product Description

The 3M 7010294502 is a coated abrasive sanding belt built for demanding metal surface finishing work. It uses silicon carbide mineral combined with cork particles on a heavy YF-weight polyester cloth backing with closed coat construction. This combination delivers aggressive material removal while producing a fine, consistent surface finish. The resin bond system resists heat-related breakdown, extending usable belt life in high-friction applications. At 72 inches long and 4 inches wide with a 150 grit rating, this belt is sized for wide-contact stationary and portable belt sanders used in metal fabrication and finishing shops.

This belt is designed for metal surface sanding and final cosmetic polishing, including achieving the required blue finish on stainless steel. The flexible polyester cloth backing conforms to contoured workpieces, making it suitable for both flat stock and shaped parts. Closed coat grain density ensures consistent scratch patterns on hard surfaces. The waterproof backing allows wet sanding applications and simplifies debris removal. Typical users include metal fabricators, maintenance technicians, and industrial finishing professionals working on ferrous and stainless steel components.

Key Features

• Silicon carbide mineral and cork particles for aggressive cut and fine finish
• Heavy YF-weight polyester cloth backing for durability under load
• Closed coat construction increases grain density for finer finish on hard surfaces
• Resin bond system resists heat deterioration to extend belt service life
• Flexible backing conforms to contoured and shaped metal parts
• Waterproof material supports wet sanding and easy debris removal

Compatibility

Designed for use on stationary and portable belt sanders accepting 72 inch by 4 inch belts; suitable for sanding and finishing ferrous metals, stainless steel, and other hard metal surfaces.

Installation Notes

Belt installation should be performed by qualified personnel following the sander manufacturer's belt-tension and tracking specifications. Confirm the sander is powered off and fully de-energized before changing belts. Verify belt direction arrows align with the machine's drive direction prior to operation. Wear appropriate PPE including eye protection and respiratory protection when sanding metal.

Technical Specifications

• Grit: 150
• Belt Length: 72 inches
• Belt Width: 4 inches
• Abrasive Mineral: Silicon Carbide with Cork Particles
• Backing Material: YF-Weight Polyester Cloth
• Coat Type: Closed Coat
• Bond Type: Resin
• Weight: 0.7 pounds
• Unit of Measure: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010294502
