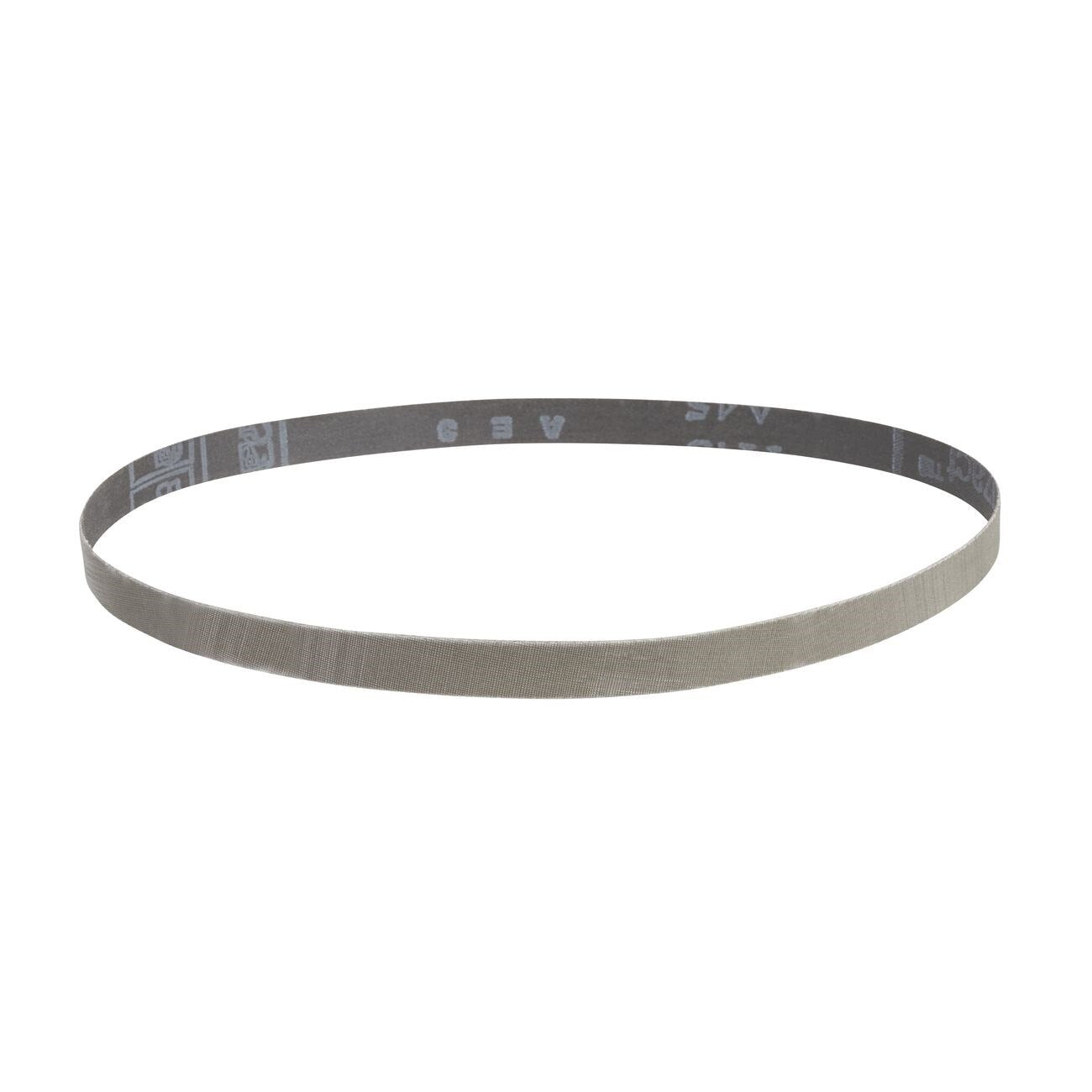

3M 7010294494 Trizact 237AA Abrasive Belt 24x1/4 Inch Ao

Product Description

The 3M 7010294494 is a Trizact 237AA coated abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide mineral is formed into three-dimensional pyramids and bonded onto an X-weight cloth backing. As each pyramid wears, fresh cutting edges are continuously exposed, delivering a consistent cut rate and predictable surface finish over the full life of the belt. At 24 inches long and 1/4 inch wide, this belt is suited for narrow-contact finishing on small-diameter workpieces, contoured parts, and precision components ahead of plating or buffing operations.

This belt is used in metalworking environments where surface finish consistency is critical. Typical applications include intermediate grinding and fine polishing of ferrous and non-ferrous metals before electroplating, anodizing, or buffing. The flexible X-weight cloth backing conforms to curved and contoured surfaces, making it effective for finishing complex geometry. The three-dimensional abrasive structure also performs reliably in automated and robotic finishing cells, where consistent stock removal and finish repeatability are required across high part volumes.

Key Features

• Microreplication technology forms aluminum oxide mineral into self-sharpening pyramids for consistent cut throughout belt life
• Runs cooler than conventional abrasives, reducing heat buildup on sensitive workpieces
• X-weight cloth backing provides flexibility for finishing contoured and complex surfaces
• Three-dimensional abrasive design delivers repeatable finishes in robotic and automated applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on belt finishing machines and file belt sanders that accept a 24-inch by 1/4-inch abrasive belt. Suitable for ferrous metals, non-ferrous metals, and other materials requiring controlled fine finishing ahead of secondary surface treatment.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Power down and lock out the machine before changing belts. Verify belt tension and tracking adjustment per the equipment manufacturer guidelines before resuming operation. Inspect the contact wheel or platen for wear that could affect finish consistency.

Technical Specifications

• Abrasive Mineral: Aluminum Oxide (AO)
• Abrasive Structure: Microreplication (Trizact)
• Backing Material: X-weight Cloth
• Belt Color: Gray
• Belt Length: 24 inches
• Belt Width: 1/4 inch
• Weight: 0.02 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010294494
