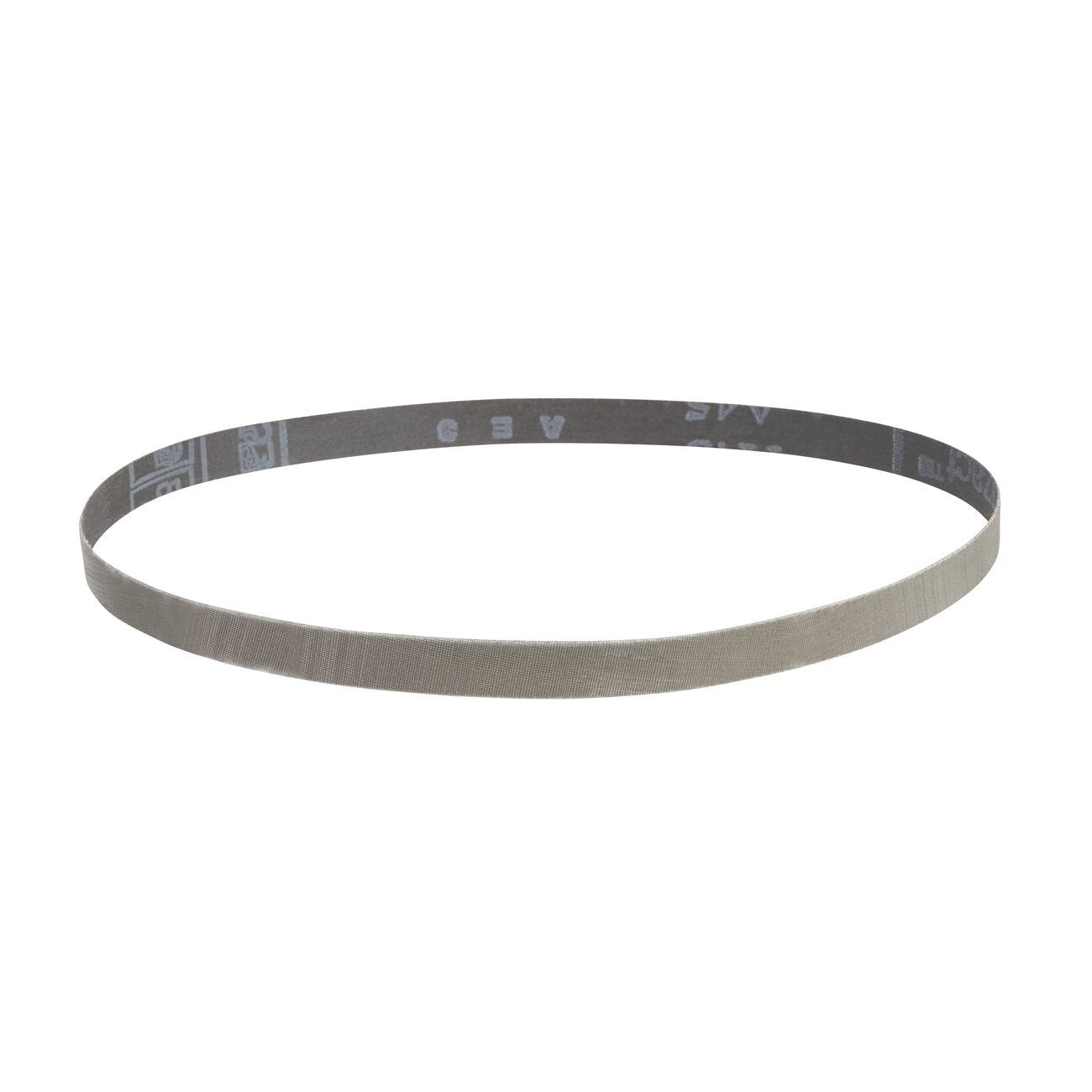

3M 7010294490 Trizact 237AA Abrasive Belt 11 Inch

Product Description

The 3M 7010294490 is a Trizact 237AA abrasive belt designed for intermediate finishing and fine polishing applications. It uses 3M microreplication technology, where micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to an X-weight cloth backing. As the pyramids wear down during use, fresh abrasive mineral is continuously exposed. This self-renewing action produces a consistent cut rate and a predictable, repeatable surface finish. The belt measures 11 inches in length and 1 inch in width. It is gray in color and sold individually. Metalworkers, fabricators, and automated finishing system operators rely on this belt for pre-plate and pre-buff surface preparation.

This belt is suited for intermediate and fine finishing passes on metal workpieces ahead of plating or buffing operations. The flexible X-weight cloth backing conforms to contoured surfaces, making it effective on irregular geometries. Its three-dimensional abrasive structure is particularly consistent in robotic and automated belt-finishing applications where repeatable surface finish is critical. It produces finer results than conventional electrostatically coated abrasive belts of comparable grit designation.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramidal structures
• Fresh abrasive mineral is continuously exposed as pyramids wear, extending usable belt life
• Runs cooler than conventional abrasives, reducing heat buildup on workpiece surfaces
• Flexible X-weight cloth backing conforms to contours for consistent surface contact
• Three-dimensional abrasive design delivers highly repeatable finishes in robotic applications
• Produces finer surface finishes than conventional electrostatically coated abrasive belts

Compatibility

Designed for use on belt finishing machines and robotic grinding systems that accept 1-inch wide by 11-inch length abrasive belts. Suited for metal substrates requiring intermediate finishing or fine polishing prior to plating or buffing.

Installation Notes

Install the belt with the arrow or grain direction matching the intended direction of travel on the machine. Confirm the drive and idler wheels are clean and properly tensioned before mounting. Power down and lock out the machine before changing belts. Inspect the backing plate or platen for wear before each belt change to avoid premature belt failure.

Technical Specifications

• Belt Length: 11 inches
• Belt Width: 1 inch
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-Weight Cloth
• Abrasive Series: Trizact 237AA
• Color: Gray
• Weight: 0.02 pounds
• UOM: Each
• UPC: 00051119826241

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010294490
