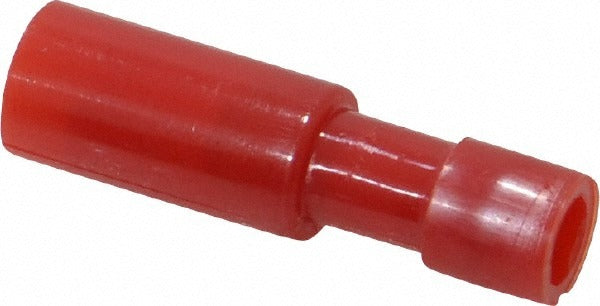

3M 7010293657 Bullet Connector 22-18 Awg Red Nylon 100pk

Product Description

The 3M 7010293657 is a nylon-insulated bullet connector designed for splicing or terminating 22 to 18 AWG wire in low-voltage electrical and control wiring applications. The connector features a 0.18-inch bullet diameter and red nylon insulation, which serves as a quick visual indicator for the 22-18 AWG wire range. Each package contains 100 connectors, making it practical for service vehicles, panel shops, and field technicians who work through connectors in volume. The red nylon shell provides insulation protection at the termination point and resists abrasion in routed wire bundles.

This connector is suited for residential and light commercial electrical, HVAC control wiring, appliance repair, and automotive or equipment harness work where bullet-style disconnects are required. Electricians, HVAC technicians, and equipment service techs use this type of connector when a clean, insulated inline or pigtail termination is needed on 22 to 18 AWG conductors. The 100-count package is practical for contractors stocking service trucks or shop bench work.

Key Features

• Fits 22 to 18 AWG wire for versatile use across small-gauge control and power circuits
• 0.18-inch bullet diameter for standard bullet-style receptacle compatibility
• Red nylon insulation provides quick wire-gauge identification and termination protection
• 100 connectors per package minimizes reorder frequency for high-volume users
• Nylon insulation material resists abrasion and provides electrical isolation at the crimp point

Compatibility

Designed for use with 22 to 18 AWG copper conductors in applications requiring a 0.18-inch bullet-style insulated connector. Consult the mating receptacle specification to confirm bullet diameter before installation.

Installation Notes

Installation requires a ratcheting or compression crimp tool rated for insulated connectors in the 22 to 18 AWG range. De-energize all circuits before making or breaking connections. Strip wire to the depth specified by the connector barrel to ensure full crimp engagement. Avoid over-stripping, which can expose bare conductor beyond the insulation sleeve after crimping.
