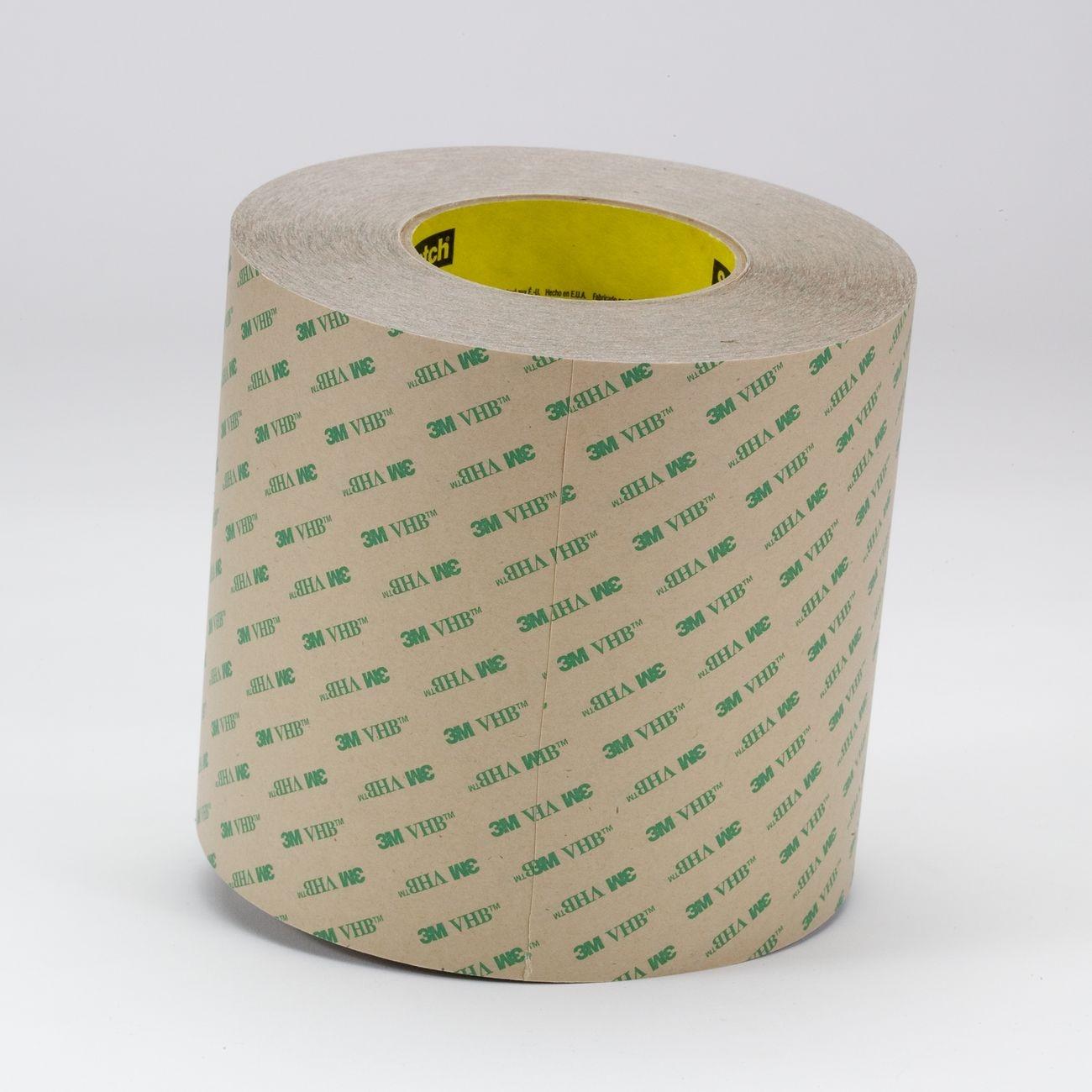

3M 7010292973 Vhb F9460PC Adhesive Transfer Tape 2 Mil

Product Description

The 3M 7010292973 is a VHB F9460PC adhesive transfer tape designed for bonding applications that demand a thin profile without sacrificing holding strength. At 2.0 mil thick, this double-sided transfer tape uses 3M High Performance Acrylic Adhesive 100MP to deliver exceptional long-lasting adhesion across a wide range of surfaces. The tape is transparent and comes on a 58 polycoated kraft paper liner. Licensed HVAC, plumbing, electrical, and general trade professionals use this tape for secure, fast bonding on both indoor and outdoor assemblies where a low-profile bond line is required.

This tape is suited for indoor and outdoor applications where conformability and durability are priorities. The acrylic adhesive resists UV exposure, common chemicals, and solvents, making it appropriate for use in mechanical rooms, panel assemblies, and exterior enclosures. It ships in roll form and is available in a 6-inch width, making it practical for larger surface bonding tasks. The short-term temperature tolerance of up to 500 degrees F and an operating temperature tolerance of up to 300 degrees F allow use in environments with elevated heat exposure.

Key Features

• 2.0 mil double-sided VHB transfer tape with transparent profile for low-visibility bonds
• High Performance Acrylic Adhesive 100MP provides strong, long-lasting adhesion
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to UV, solvents, and common chemicals
• Conforms to varied indoor and outdoor surfaces and applications
• 58 polycoated kraft paper liner for controlled, clean release during application

Compatibility

Designed for use across a wide variety of indoor and outdoor bonding applications where a thin, high-strength acrylic transfer tape is required.

Installation Notes

Surface preparation is critical before applying any adhesive transfer tape — clean the substrate thoroughly to remove oils, dust, and moisture for maximum bond strength. Apply firm, even pressure across the tape after positioning to ensure full adhesive contact. Remove the liner carefully to avoid stretching or misaligning the tape. Once bonded, the acrylic adhesive develops full strength over time, so avoid loading the bond immediately after application.

Technical Specifications

• Thickness: 2.0 mil
• Width: 6 inches
• Color: Transparent
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Liner: 58 polycoated kraft paper
• Unit of Measure: Roll
• Weight: 3.38 pounds
• Package Length: 13.8 inches
• Package Width: 13.8 inches
• Package Height: 14 inches
• UPC: 00021200429170

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010292973
