3M 7010292493 Abrasive Belt 75x36 Inch P220 Grit Ao Paper

Product Description

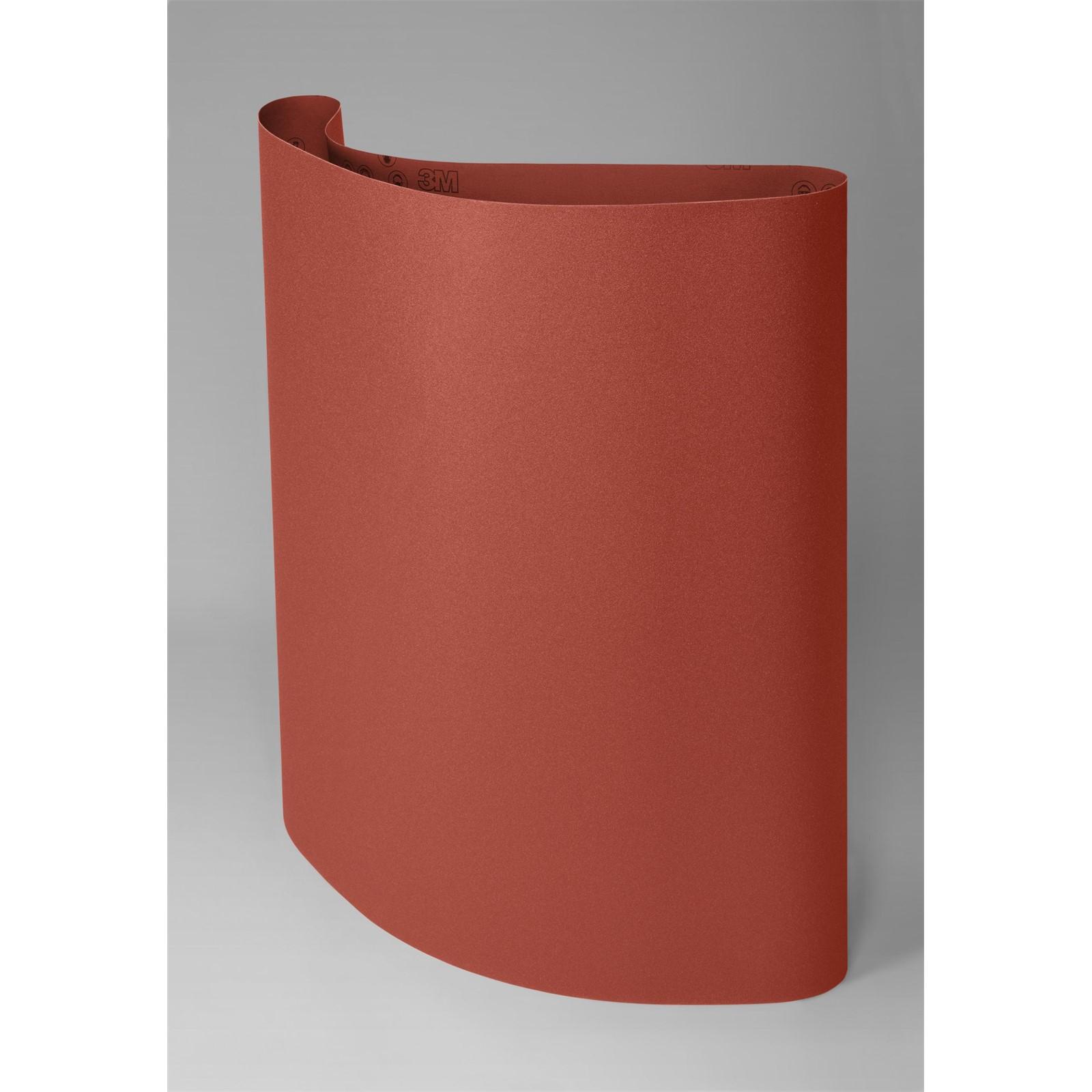

The 3M 7010292493 is a coated abrasive belt designed for sanding and finishing flat surfaces in woodworking applications. Built on a heavy F-weight paper backing, it carries a closed coat layer of aluminum oxide mineral that delivers aggressive stock removal and a fine, consistent finish. The anti-static treatment reduces dust accumulation and resists loading, keeping the belt cutting efficiently across the full run. At 75 inches long and 36 inches wide, this belt is sized for wide-belt sanders common in cabinet shops and millwork operations.

This belt is intended for use on wide-belt drum sanding machines in both production woodworking and finish sanding environments. The P220 grit rating positions it for final material passes and surface preparation before finishing coats. The closed coat construction makes it especially effective on hardwoods, where grain density and surface quality matter. A film media splice supports smooth belt tracking and allows operation in either feed direction without joint disruption.

Key Features

• Closed coat aluminum oxide mineral delivers higher grain density and finer finish than open coat on hardwoods
• Heavy F-weight paper backing provides rigidity and durability under production sanding loads
• Anti-static treatment reduces dust buildup and resists loading for extended belt life
• Film media splice creates a strong joint and supports smooth, bidirectional belt operation
• P220 grit suited for final sanding passes and pre-finish surface preparation

Compatibility

Designed as a replacement abrasive belt for wide-belt drum sanders accepting a 75 inch by 36 inch belt size. Confirm machine drum width, contact roller clearance, and belt tracking specifications before installation.

Installation Notes

Installation should be performed by a qualified machine operator or maintenance technician familiar with wide-belt sanding equipment. Power down and lock out the sander before changing belts. Verify belt tension, tracking alignment, and splice orientation per the equipment manufacturer guidelines before resuming operation. Inspect the platen and contact roller for wear that could cause uneven pressure or premature belt failure.

Technical Specifications

• Belt Length: 75 inches
• Belt Width: 36 inches
• Grit: P220
• Abrasive Mineral: Aluminum Oxide (AO)
• Coat Type: Closed Coat
• Backing Material: Heavy F-Weight Paper
• Anti-Static: Yes
• Package Weight: 2.6 pounds
• Package Length: 40.38 inches
• Package Width: 11.88 inches
• Package Height: 8.38 inches
• Sold As: Each
• Minimum Order Quantity: 5
• UPC: 00051115286759

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010292493
