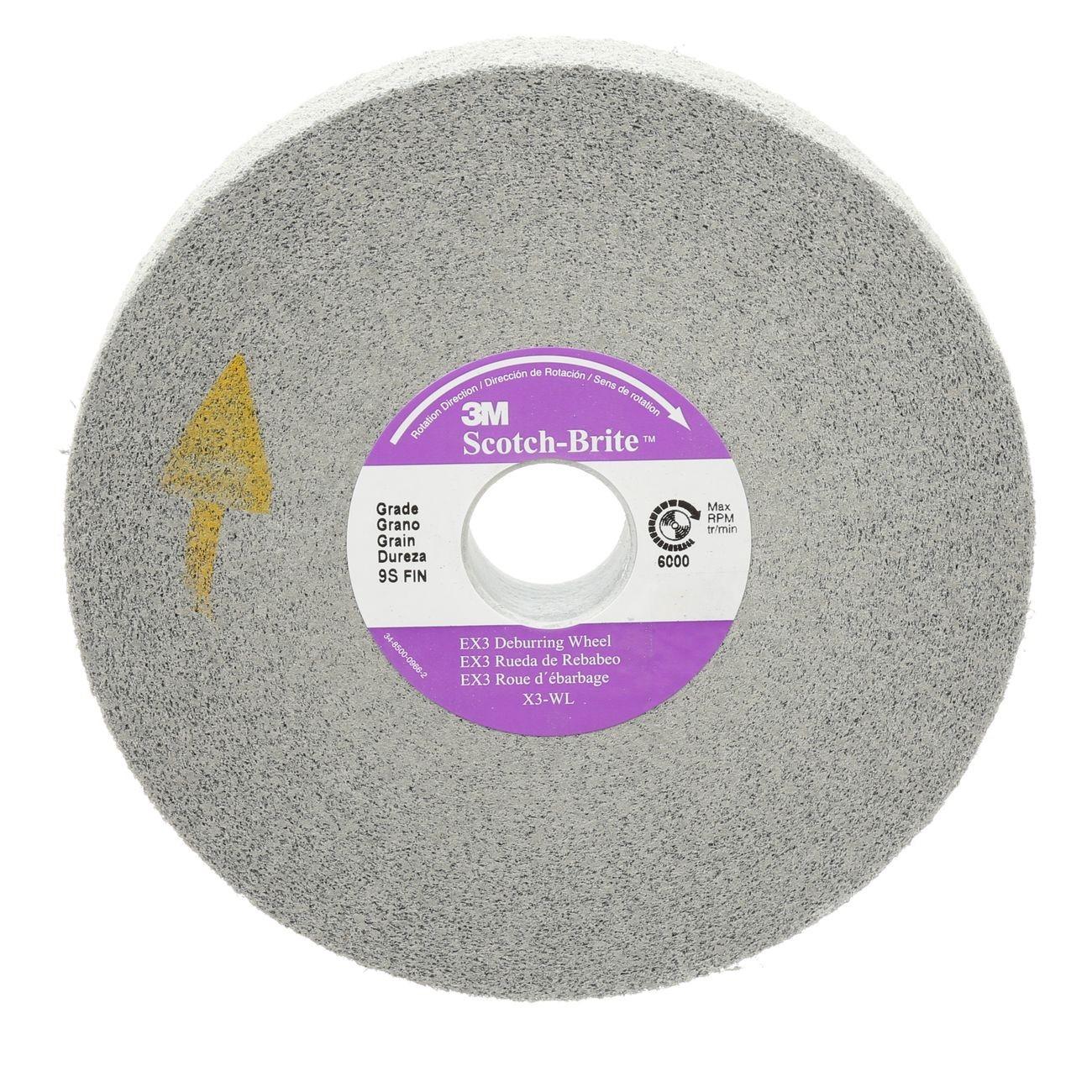

3M 7010291331 Convolute Deburring Wheel 12 in 5 in Arbor

Product Description

The 3M 7010291331 is a convolute-constructed deburring wheel designed for aggressive edge deburring and burr removal on metal workpieces. Part of the Scotch-Brite EX3 Deburring Wheel line, it features a hard, durable non-woven web construction that runs cool and reduces heat buildup during operation. A specially engineered resin system resists smearing, which cuts down on cleaning and prep time between operations. At 12 inches in diameter with a 5-inch arbor bore, this wheel fits standard industrial grinding and finishing equipment. It is suited for applications where consistent edge retention and long wheel life are required.

This wheel is used in metalworking and fabrication environments where sharp edges and metal burrs must be removed efficiently. The convolute construction maintains a balanced, smooth-running profile throughout the entire service life of the wheel. It performs best when consistently presented with sharp edges or fresh metal burrs, making it well-suited for production deburring lines, job shops, and maintenance operations handling ferrous and non-ferrous metals. The non-woven web is appropriate for heat-sensitive base materials where conventional abrasive wheels may cause thermal damage.

Key Features

• Convolute construction delivers a balanced, smooth-running wheel from first use to end of life
• Highest edge retention and durability in the Scotch-Brite Deburring Wheel product line
• Non-woven web runs cool, reducing heat impact on heat-sensitive metals
• Unique resin system resists smearing and minimizes post-operation clean-up
• Engineered specifically for conditioning sharp edges and removing metal burrs
• 12-inch diameter and 5-inch arbor bore fits standard industrial finishing equipment

Compatibility

Designed for use on standard industrial bench grinders and finishing machines accepting a 5-inch arbor bore and accommodating a 12-inch diameter convolute deburring wheel.

Installation Notes

Installation should be performed by a qualified operator following the equipment manufacturer's mounting instructions for convolute wheels. Power down and lock out the machine before mounting or removing the wheel. Inspect the wheel for damage before each use and confirm the machine's rated RPM does not exceed the wheel's maximum operating speed. Eye protection and appropriate PPE are required during operation.

Technical Specifications

• Wheel Diameter: 12 inches
• Arbor Bore: 5 inches
• Construction Type: Convolute
• Wheel Face Width: 2.6 inches
• Package Dimensions: 12.4 x 12.4 x 2.6 inches
• Weight: 3.5 pounds
• Unit of Measure: Each
• UPC: 048011646904

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010291331
