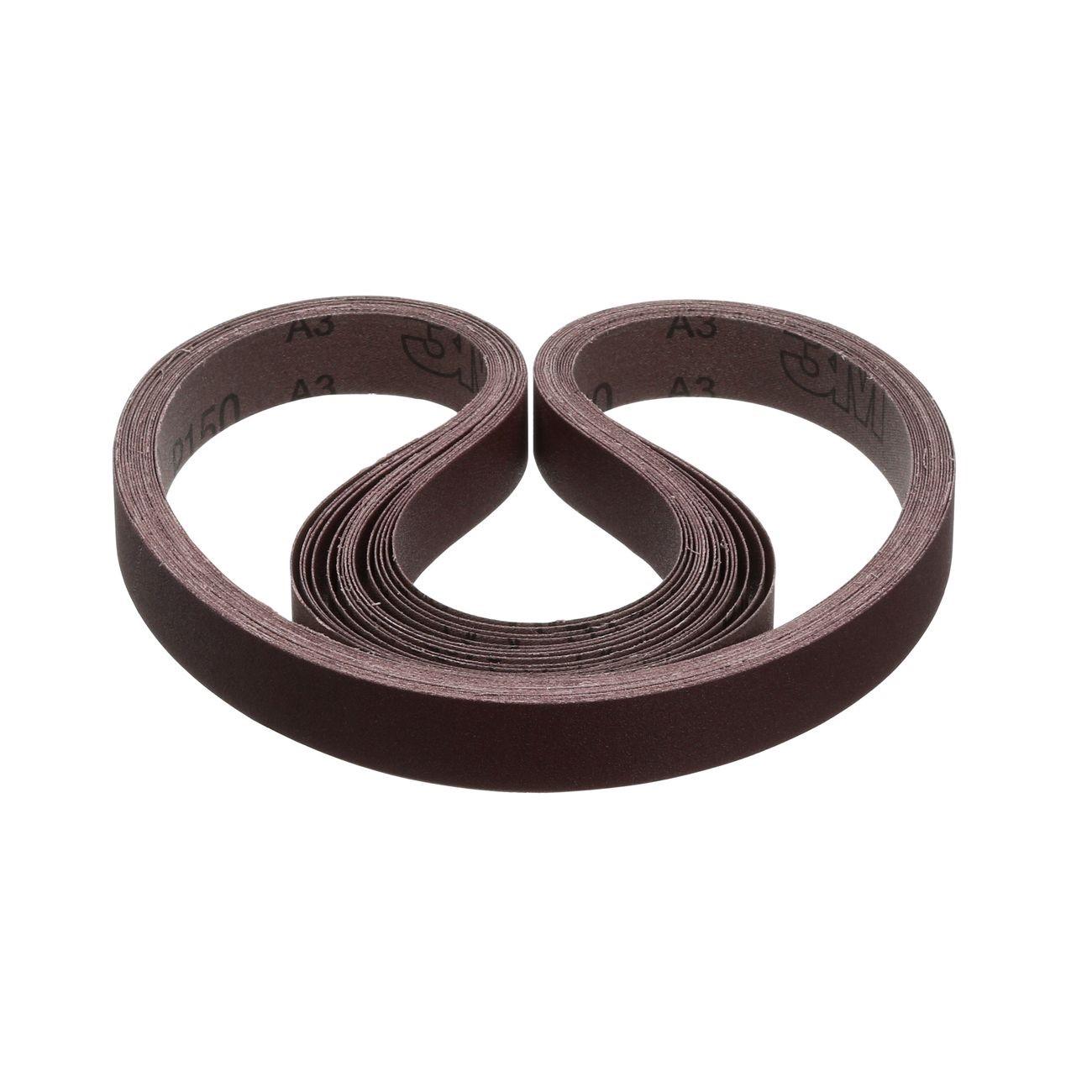

3M 7010290609 Abrasive Cloth Belt P320 48x0.5 Inch Ao

Product Description

The 3M 7010290609 is an aluminum oxide coated abrasive cloth belt designed for metal deburring, general metalworking, and select woodworking tasks. This belt measures 48 inches in length and 1/2 inch in width, with a P320 grit rating suited for fine stock removal and surface finishing. The X-weight cloth backing handles heavy sanding and grinding pressure without tearing. The resin bond system resists high heat and pressure generated during aggressive material removal. Licensed tradespeople and shop fabricators use this belt on die grinders, rotary drills, and portable belt sanders when working metal or wood substrates.

This belt is intended for wide belt, edge, and portable belt sanding applications. Its tube-shaped profile fits inner and outer contours, making it effective for removing parting lines, casting imperfections, and burrs from machined or fabricated metal parts. It is also compatible with rubber expander wheel attachments used on die grinders and rotary drills. Woodworking finish sanding is a secondary application where the aluminum oxide mineral provides consistent cut on hardwood and softwood surfaces.

Key Features

• P320 aluminum oxide grit delivers fast cutting action on metal and wood substrates
• X-weight cloth backing withstands heavy sanding and grinding loads
• Resin bond resists heat and pressure buildup during extended use
• Tube-shaped band conforms to inner and outer contours for deburring and parting line removal
• Compatible with rubber expander wheel attachments on die grinders and rotary drills
• Suitable for wide belt, edge, and portable belt sanding configurations

Compatibility

Designed for use with rubber expander wheel attachments on die grinders and rotary drills, and suitable for wide belt, edge, and portable belt sanding machines that accept a 48 inch by 1/2 inch belt.

Installation Notes

Installation should be performed by a qualified technician familiar with abrasive belt equipment. Power down and disconnect the tool or machine before mounting or replacing the belt. Verify belt tracking and tensioning before resuming operation. Follow the tool manufacturer guidelines and applicable shop safety standards when operating abrasive belt equipment.

Technical Specifications

• Belt Length: 48 inches
• Belt Width: 0.5 inches
• Grit: P320
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Bond Type: Resin
• Abrasive Type: Coated
• Weight: 0.04 pounds
• UOM: Each

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010290609
