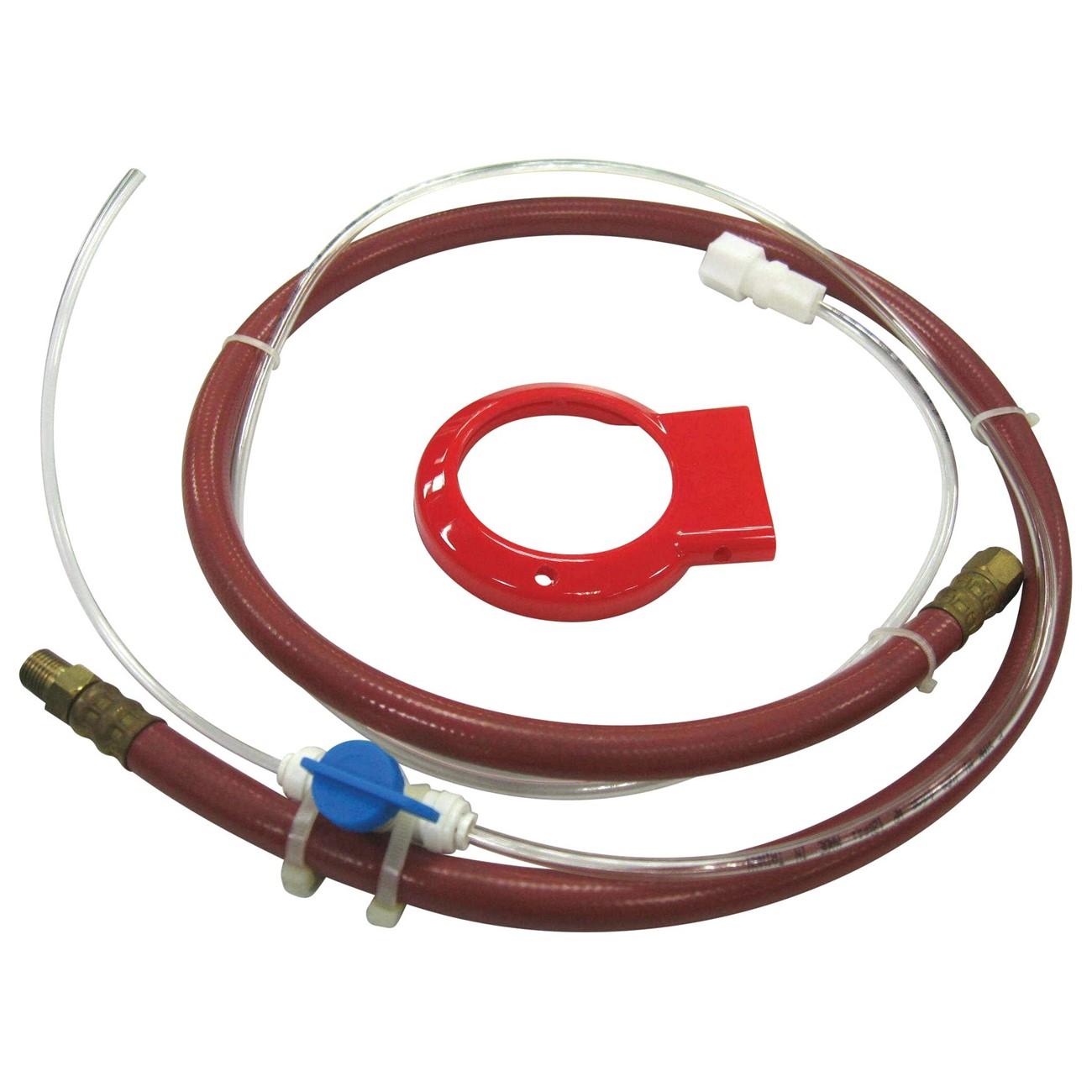

3M 7010290231 Wet Sanding Shroud Kit 5 in Orbital Sander

Product Description

The 3M 7010290231 is a wet sanding shroud kit designed to convert the 3M Elite Central Vacuum Random Orbital Sander into a wet sanding configuration. The kit redirects water directly onto the backup pad through a modified dust shroud, enabling wet abrasive passes without requiring a separate water delivery tool. It ships as a complete kit and is installed by technicians working in automotive body, paint prep, or surface finishing environments where wet sanding is required for final finish work.

This kit is suited for professional surface preparation applications where wet sanding improves finish quality and reduces heat buildup during orbital sanding. It is designed for use with the 3M Elite Central Vacuum Random Orbital Sander on 5-inch backup pads with holes. The included air line extension features a 6 mm water line and an integrated shutoff valve for controlled water flow at the pad surface.

Key Features

• Converts the 3M Elite Central Vacuum Random Orbital Sander to wet sanding operation
• Modified dust shroud directs water flow to the backup pad surface
• Includes PN20209 air line extension with 6 mm water line
• Integrated shutoff valve provides on-demand water flow control
• Compatible with 5-inch backup pads with holes
• Sold as a complete conversion kit requiring no additional hardware

Compatibility

Designed for use with the 3M Elite Central Vacuum Random Orbital Sander. Fits 5-inch backup pads with holes as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic sanding equipment. Disconnect the air supply before attaching or removing the shroud kit or air line extension. Ensure the water supply line is properly connected to the 6 mm inlet and that the shutoff valve is in the closed position before restoring air pressure. Follow all applicable workplace safety guidelines for wet sanding operations.

Technical Specifications

• Weight: 1.19 pounds
• Pad Size: 5 inches
• Water Line Diameter: 6 mm
• UPC: 00051141286532
• Unit of Measure: Kit
• Minimum Order Quantity: 1

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010290231
