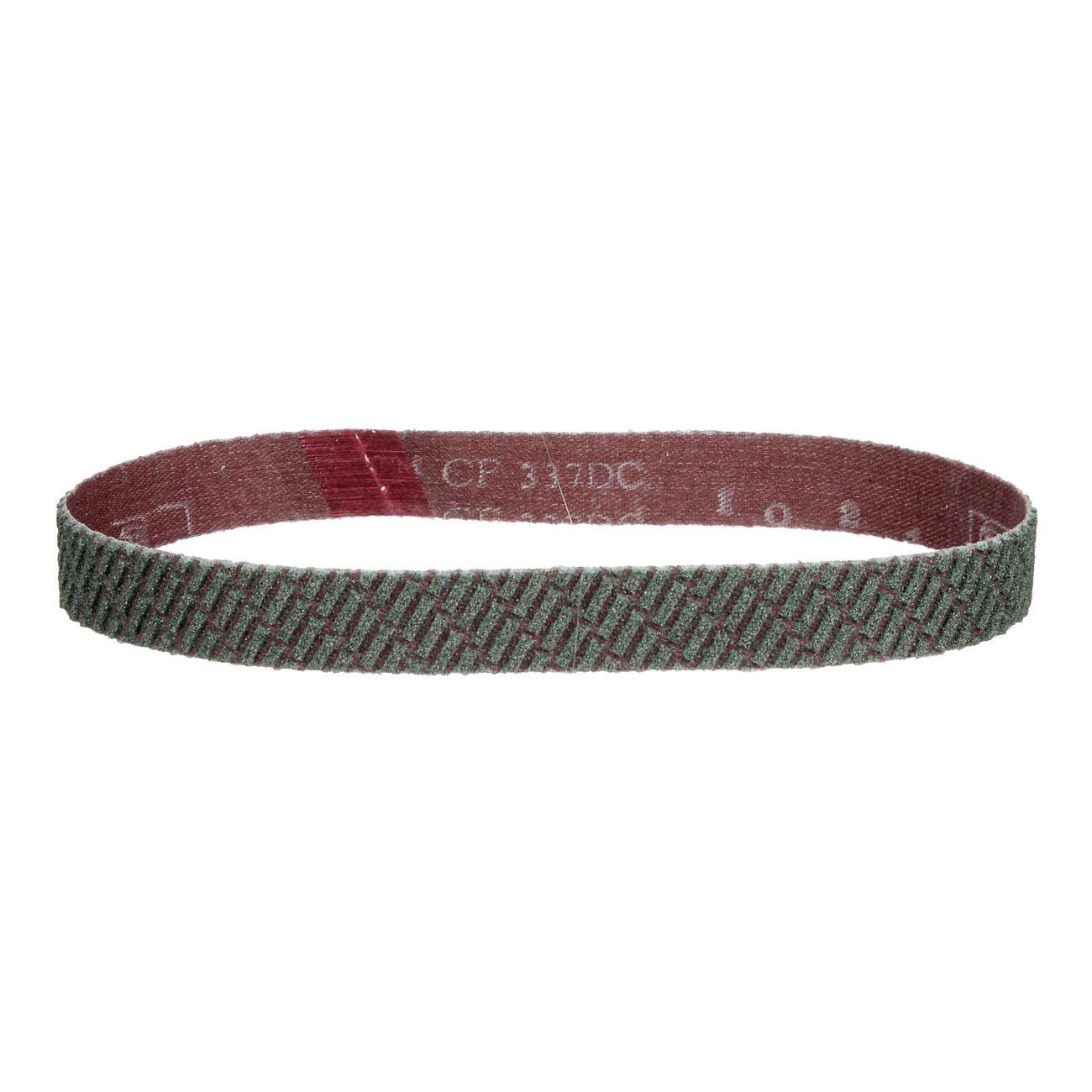

3M 7010290180 Abrasive Belt 24x0.5 in Aluminum Oxide

Product Description

The 3M 7010290180 is a Trizact 337DC abrasive belt designed for intermediate to final finish work in medium-pressure grinding and finishing applications. Built on a durable X-weight cloth backing with aluminum oxide abrasive and a grinding aid, this belt is suited for dry grinding tasks where heat control and consistent surface finish quality matter. The macroreplicated structure organizes abrasive mineral into layered bricks with channels that clear swarf from the work surface during use. Installers and fabricators working metals, composites, or similar materials will find this belt capable of grinding and finishing in a single operation, reducing steps and abrasive changeovers.

This belt fits applications where intermediate stock removal transitions into final surface finishing without a separate finishing belt. It is well-suited for metalworking environments including fabrication shops, maintenance and repair operations, and industrial production lines requiring repeatable surface finish results. The 24-inch length and 1/2-inch width target narrow-contact-roll and small platen belt grinder setups. Grade range spans A300 to A30, covering fine to coarser finishing needs within the Trizact product family.

Key Features

• Macroreplicated abrasive bricks contain multiple layers of aluminum oxide mineral for controlled, consistent cut
• Channeled structure clears swarf and keeps work surfaces cleaner during grinding
• Grinding aid reduces friction and limits heat buildup in dry grinding applications
• X-weight cloth backing provides durability for medium-pressure contact
• Capable of combined grinding and finishing in a single belt operation
• Extended belt life lowers abrasive cost per part compared to conventional coated abrasives

Compatibility

Designed for use on narrow-contact-roll and small platen belt grinders accepting a 24-inch length by 1/2-inch width abrasive belt. Available grades range from A300 to A30 within the 337DC product line.

Installation Notes

Belt installation and tensioning should be performed by qualified personnel following the belt grinder manufacturer's guidelines. Disconnect and lock out all power to the grinder before changing belts. Verify belt tracking alignment before resuming operation to prevent belt damage or operator injury. Always confirm the machine's rated belt speed is compatible with the abrasive belt speed rating before use.

Technical Specifications

• Belt Length: 24 inches
• Belt Width: 0.5 inches
• Abrasive Mineral: Aluminum Oxide
• Backing Material: X-weight Cloth
• Construction Type: Macroreplicated (Trizact)
• Application Type: Dry Grinding and Finishing
• Grade Range: A300 to A30
• Weight: 0.04 pounds
• UPC: 00048011331409

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010290180
