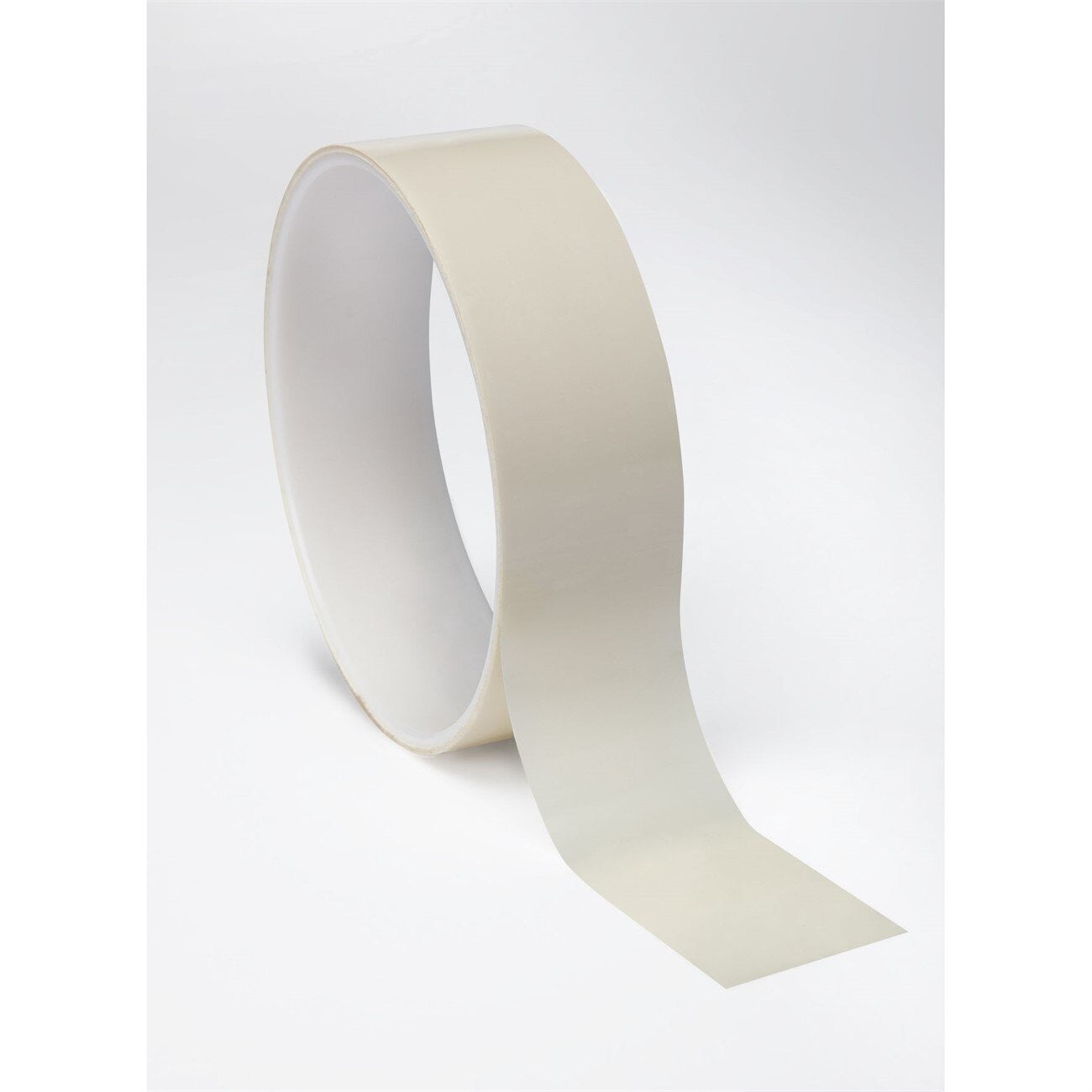

3M 7010045167 Polyester Film Tape 854 White 4in X 72yd

Product Description

The 3M 7010045167 is a white polyester film tape in the 3M 854 series, measuring 4 inches wide by 72 yards long with a 2.7 mil total thickness. It uses a rubber-based adhesive bonded to a polyester film backing, which gives the tape strong dimensional stability and resistance to tearing. This combination makes it suitable for demanding industrial processes where chemical exposure is a concern. It is typically applied by maintenance technicians, process engineers, or line operators in production environments.

This tape is used in photographic processing, electroplating, chemical milling, and splicing applications where resistance to solvents and process chemicals is required. The polyester film construction holds up in environments where standard paper or film tapes would break down. It is suited for both light industrial and precision manufacturing settings where clean, consistent masking or splicing is needed.

Key Features

• 2.7 mil polyester film backing for dimensional stability and tear resistance
• Rubber-based adhesive provides reliable bond in chemically active environments
• Resists many solvents common in electroplating, chemical milling, and photographic processes
• White finish supports visibility during masking and splicing operations
• 4 inches x 72 yards per roll format reduces changeover frequency on longer runs

Compatibility

Designed for use in solvent-resistant masking, splicing, and process-tape applications including photographic, electroplating, and chemical milling workflows where a polyester film tape with rubber adhesive is required.

Installation Notes

Application should be performed on clean, dry, and debris-free surfaces to ensure proper adhesion. Press the tape firmly from one end to the other to eliminate air pockets and ensure full contact with the substrate. In chemical milling or electroplating environments, verify that the tape edges are fully sealed before exposing the workpiece to process chemicals. Remove the tape carefully after processing to avoid substrate damage, following any facility or process safety protocols in place.

Technical Specifications

• Tape Series: 854
• Color: White
• Width: 4 inches
• Length: 72 yards
• Thickness: 2.7 mil
• Backing Material: Polyester Film
• Adhesive Type: Rubber
• Unit of Measure: Roll
• Weight: 1.88 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010045167
