3M 7000149349 Aluminum Connector 35 Kv 3/0 Awg

Product Description

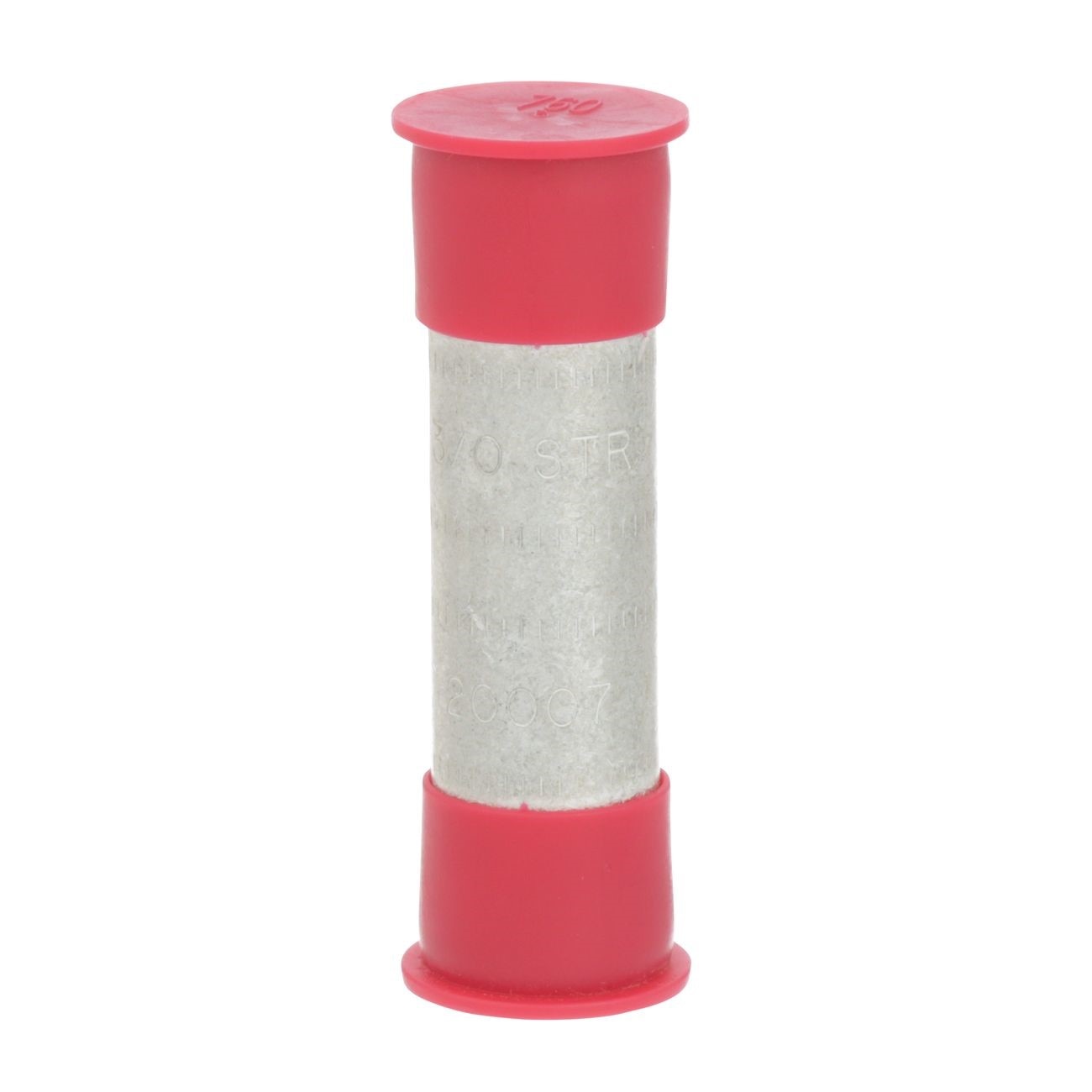

The 3M 7000149349 is an aluminum connector rated for use up to 35 kV, designed for splicing copper or aluminum conductors in medium-voltage electrical applications. This connector fits 3/0 AWG conductors and measures 2.620 inches in length with a 0.484-inch inner diameter and a 0.760-inch outer diameter. A contact aid is pre-loaded in the connector barrel and is compatible with poly and EPR insulations, reducing preparation steps on the job. The ruby color-coded end cap allows for fast visual identification during installation and inspection.

This aluminum connector is suited for medium-voltage cable splicing in residential, commercial, and industrial electrical systems. It is intended for use where copper or aluminum conductors must be reliably joined at voltages up to 35 kV. The pre-applied contact aid in the barrel is formulated for compatibility with poly and EPR insulation systems, making it appropriate for a range of underground and above-grade cable splice applications handled by licensed electricians and utility technicians.

Key Features

• Rated for use up to 35 kV medium-voltage applications
• Accepts 3/0 AWG copper or aluminum conductors
• Length of 2.620 inches with 0.484-inch inner diameter and 0.760-inch outer diameter
• Ruby color-coded end cap for quick visual identification
• Contact aid pre-loaded in barrel is compatible with poly and EPR insulations
• Aluminum construction for reliable conductivity and corrosion performance

Compatibility

Compatible with 3/0 AWG copper or aluminum conductors rated for use in systems up to 35 kV. Contact aid in the connector barrel is compatible with poly and EPR insulation types.

Installation Notes

Installation should be performed by a licensed electrician qualified for medium-voltage work. De-energize and verify the absence of voltage on all conductors before beginning the splice. Follow applicable NEC requirements and local codes for medium-voltage connector installations. Do not exceed the connector voltage rating or use with conductor sizes outside the specified AWG range.

Technical Specifications

• Voltage Rating: Up to 35 kV
• Conductor Size: 3/0 AWG
• Compatible Conductor Material: Copper or Aluminum
• Length: 2.620 inches
• Inner Diameter: 0.484 inches
• Outer Diameter: 0.760 inches
• Insulation Compatibility: Poly, EPR
• Color Code: Ruby
• Connector Material: Aluminum
• Weight: 0.1 pounds
• UPC: 00054007132936

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000149349
