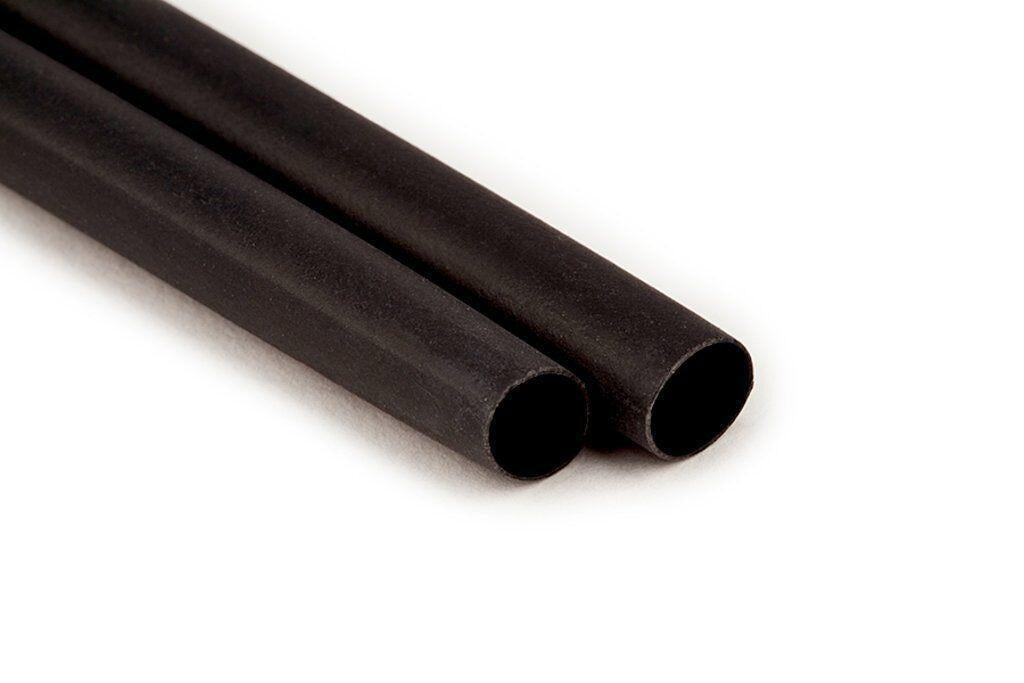

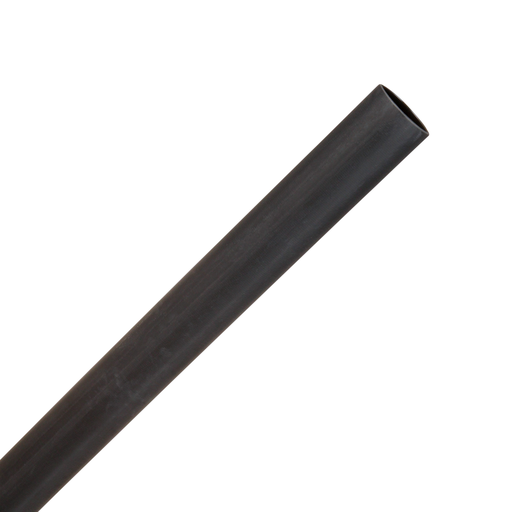

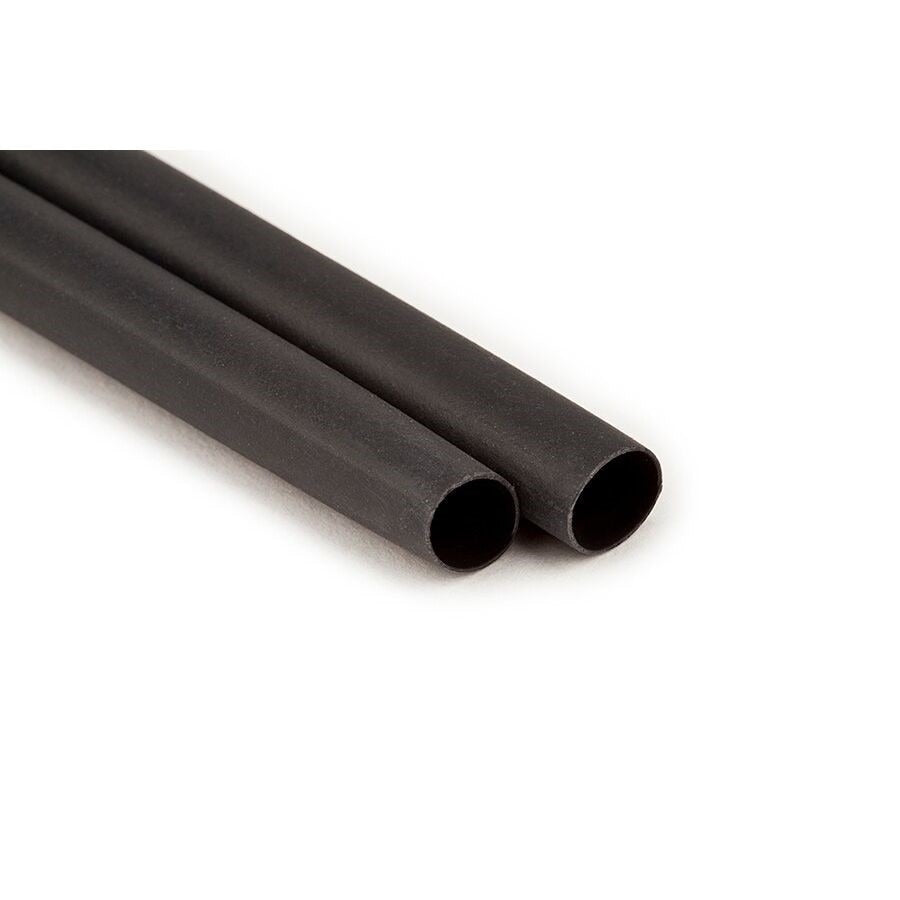

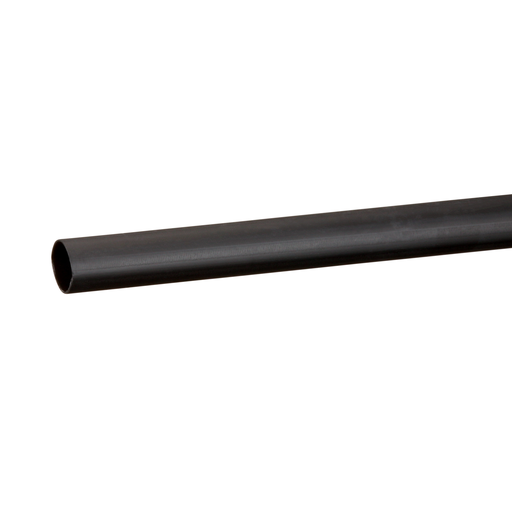

3M 7000149318 MMM54007-40067 Heat shrink heavy-wall cable sleeve 1 kV (6 in / 25 per box)

Product Description

3M 7000149318 is a heat-shrink heavy-wall cable sleeve (ITCSN series) designed for 1 kV electrical insulation and protection. The cross-linked polyolefin sleeve has a 3:1 shrink ratio, expanded inner diameter of 0.80 in and recovered inner diameter of 0.20 in, and a length of 6 in. It fits conductor sizes AWG 8 to 1/0 and is supplied boxed with 25 pieces per box for medium and high-voltage splice and repair applications.

• Heavy-wall cross-linked polyolefin construction with factory-applied adhesive to provide moisture seal and mechanical protection
• Dimensions: expanded I.D. 0.80 in, recovered I.D. 0.20 in, length 6 in; fits AWG 8 to 1/0 conductors
• Electrical and material properties: 3:1 shrink ratio, dielectric strength 500 V/mil, tensile strength 2400 lb/in; rated for 1 kV applications

Product Highlights

Heavy-wall 3:1 heat-shrink sleeve, 0.80/0.20 in expanded/recovered I.D., 6 in length, fits AWG 8 to 1/0, 25 per box

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000149318
• Country of Origin: USA
