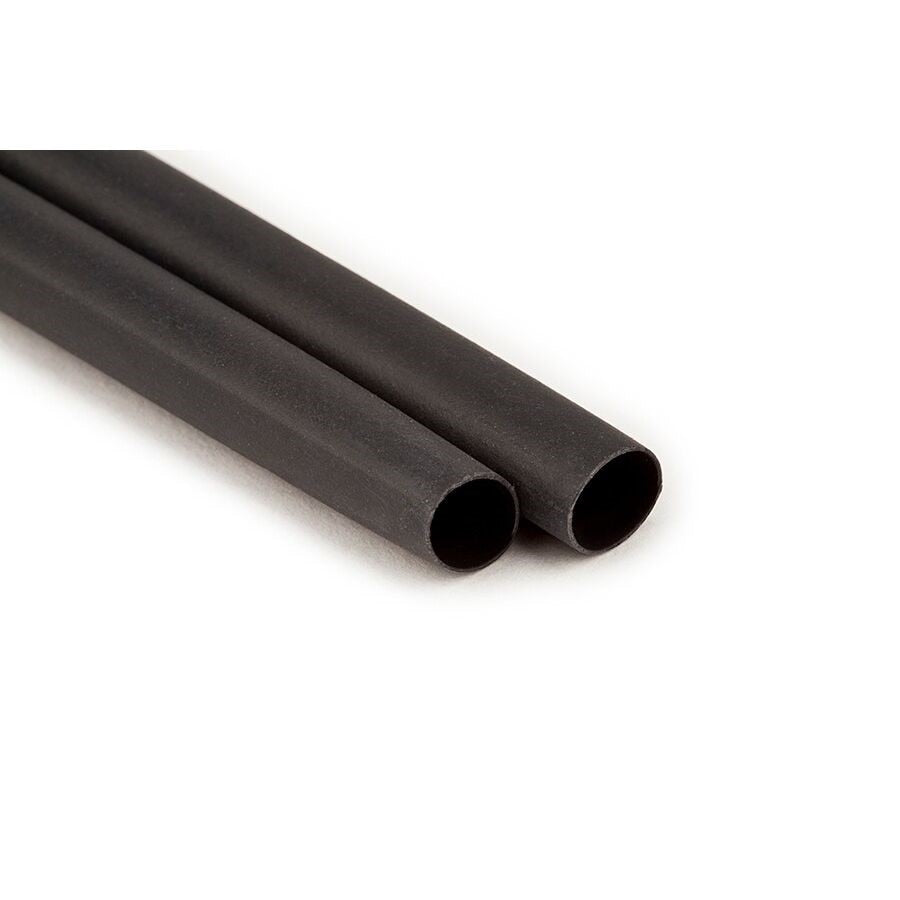

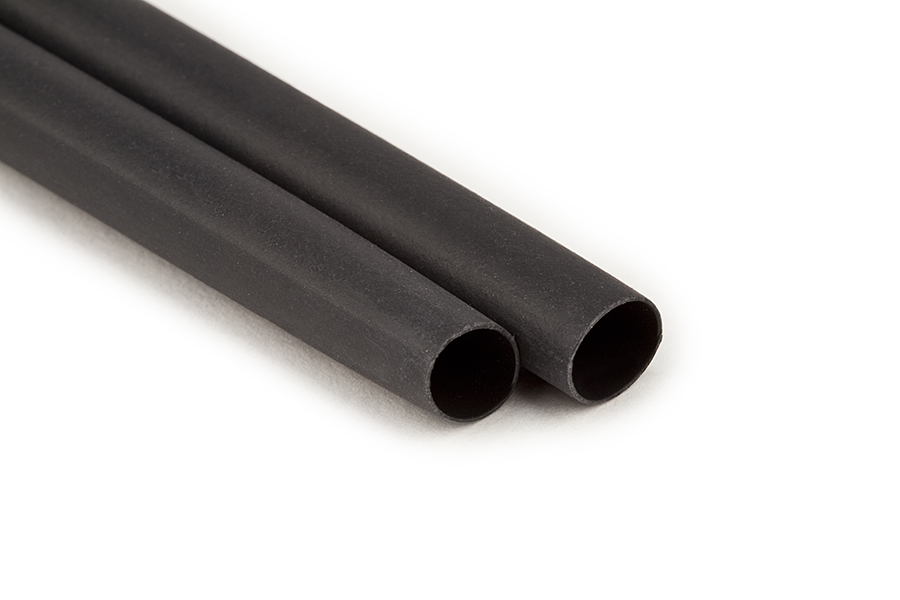

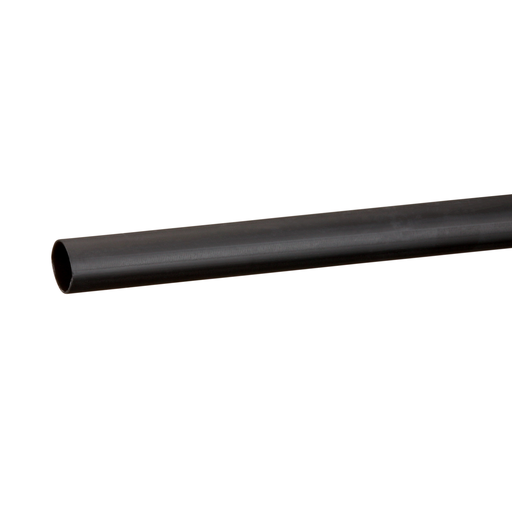

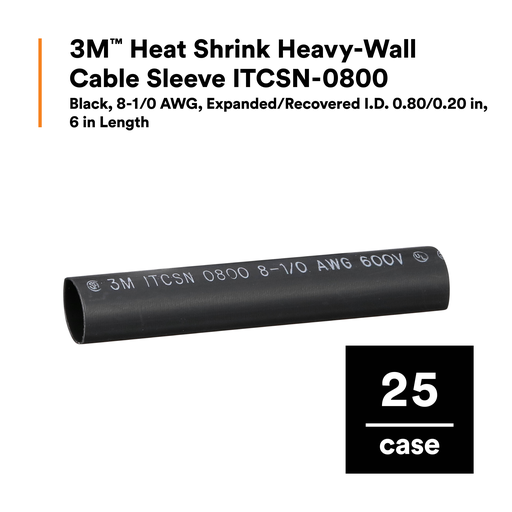

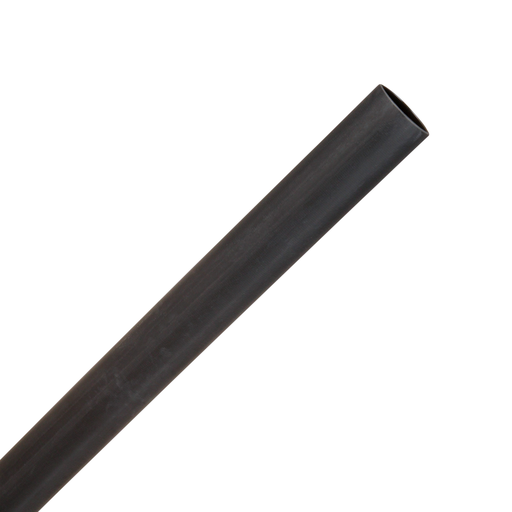

3M 7000149318 Heat Shrink Heavy-Wall Cable Sleeve 1 kV (6 Inch) Replacement MPN

Product Description

The 3M Heat Shrink Heavy-Wall Cable Sleeve 7000149318 is designed for electrical insulation in 1 kV rated applications. It offers strong protection against abrasion, corrosion, and chemicals, which is essential for reliable performance in harsh environments.

• Designed for 1 kV rated applications
• Expanded/recovered inner diameter: 0.80/0.20 inches
• Length: Six inches, packaged 25 sleeves per box

Product Highlights

Suitable for various applications including insulating secondary splices, direct-buried, and physical protection of high voltage connectors.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000149318

Technical Specifications

• Material: Polyolefin
• Color: Black
• Type: Heavy Wall
• Shrink Ratio: 3 to 1
• Voltage: 1 kV
• Dielectric Strength: 500 V/mil
• Operating Temperature: -55 degrees C
• Max Operating Temperature: 100.0 degrees C
• Tensile Strength: 2400 lb/in
• Flame Retardant: No
• Overall Length: 6.0 inches
• Country of Origin: USA
