3M 7000149318 Heat Shrink Heavy-Wall Cable Sleeve 1 kV (6 in / 25 per box) ITCSN-0800-6-Box

Product Description

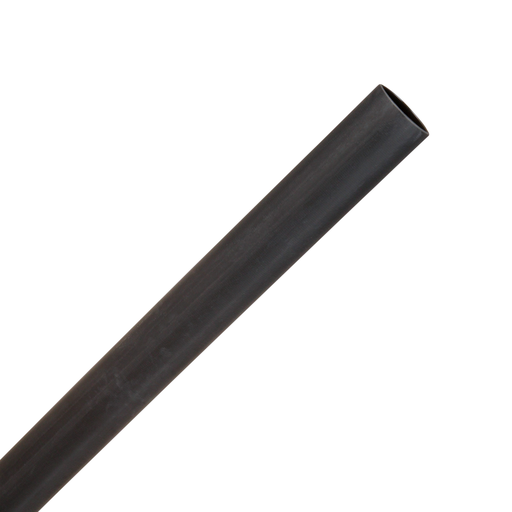

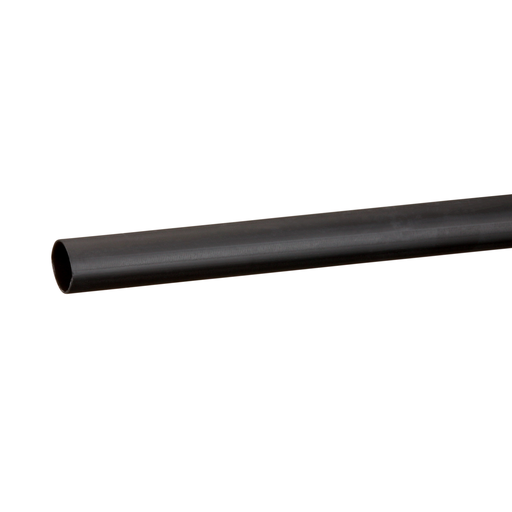

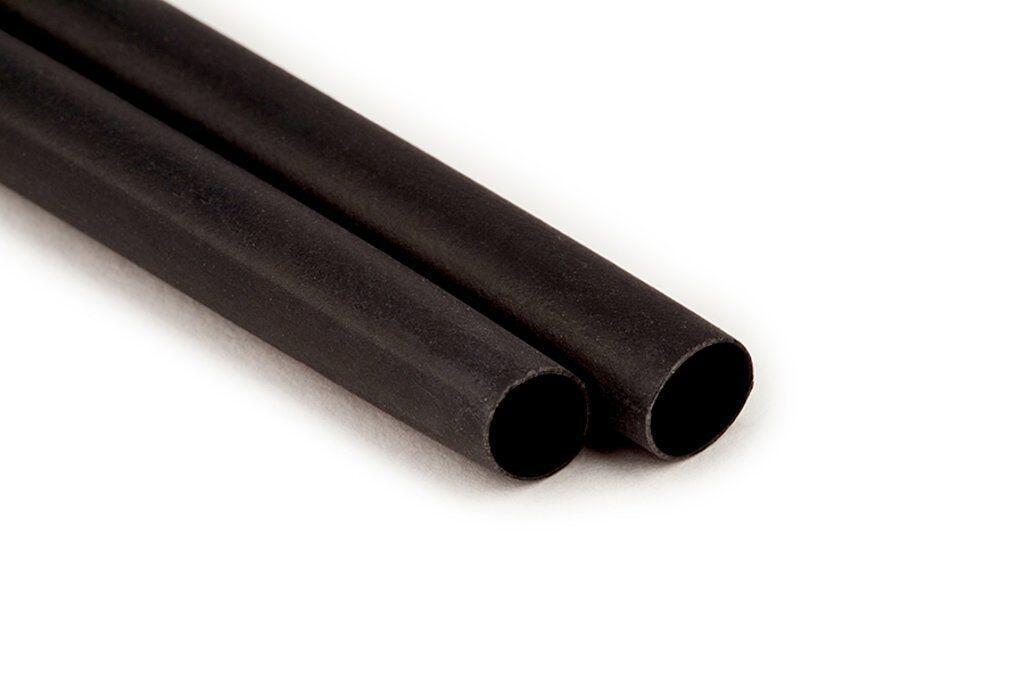

3M 7000149318 is a heavy-wall heat shrink cable sleeve (ITCSN series) designed for 1 kV electrical applications. The sleeve fits AWG 8 to 1/0 conductors with an expanded inner diameter of 0.80 in and a recovered inner diameter of 0.20 in and is 6 inches long. Constructed from adhesive-lined cross-linked polyolefin, it provides abrasion, corrosion and chemical resistance, moisture sealing and a 3:1 shrink ratio.

• Rated for 1 kV applications; fits AWG 8 to 1/0; expanded ID 0.80 in / recovered ID 0.20 in; length 6 in
• Adhesive-lined cross-linked polyolefin heavy-wall construction with moisture seal and 3:1 shrink ratio
• Dielectric strength 500 V/mil; operating temperature range -55 to 100 degrees C; certified UL, CSA, RoHS

Product Highlights

Heavy-wall adhesive-lined polyolefin sleeve for 1 kV splices and terminations; 0.80 in expanded ID to 0.20 in recovered ID; 6 in length; 25 pieces per boxed package.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000149318
• Country of Origin: US

Technical Specifications

• Brand: 3M
• MPN: 7000149318
• Model: ITCSN-0800-6-Box
• Series: ITCSN
• Product Type: Heat shrink cable sleeve
• Material: Cross-linked polyolefin
• Wall Type: Heavy wall
• Adhesive-Lined: Yes (factory-applied hot-melt adhesive/sealant)
• Shrink Ratio: 3:1
• Expanded Inner Diameter: 0.80 inches
• Recovered Inner Diameter: 0.20 inches
• Length: 6 inches
• AWG Range: 8 to 1/0
• Voltage Rating: 1 kV
• Dielectric Strength: 500 V/mil
• Operating Temperature: -55 to 100 degrees C
• Shrink Temperature: 250 deg F
• Flame Retardant: No
• Certifications: UL Listed; CSA Certified; RoHS compliant
• Country of Origin: USA
• Packaging Quantity: 25 per box
• Packaging Type: Boxed
