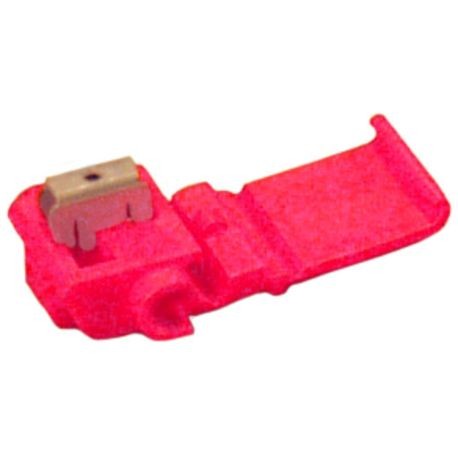

3M 7000148820 Flame-Retardant Moisture-Resistant Self-Stripping Electrical IDC 22 to 16 AWG

Product Description

The 3M™ 7000148820 is a flame-retardant, moisture-resistant self-stripping electrical IDC, suitable for 22 to 16 AWG wire. This connector simplifies wire connections by eliminating the need for stripping. It uses a color-coded system to help you easily identify the correct wire size. The connector maintains a strong connection with solid or stranded wires and features tin-plated brass for enhanced conductivity.

• Suitable for wire sizes from 22 to 16 AWG
• Self-stripping and moisture-resistant design
• UL Listed and CSA Certified for safety

Product Highlights

The 3M 7000148820 connector is designed for quick and reliable connections. It is ideal for use in electrical applications where moisture resistance and flame protection are critical.

Product Information

Standard Information

• Brand: 3M
• MPN: 7000148820

Technical Specifications

• Wire Size: 22 to 16 AWG
• Maximum Insulation Diameter: 0.12 inches
• Temperature Rating: 221 degrees F
• Voltage Rating: 600 VAC
• GTIN: 00054007215028
• UPC: 054007215028
• UNSPSC: 39121409
• Minimum Order Quantity: 1
