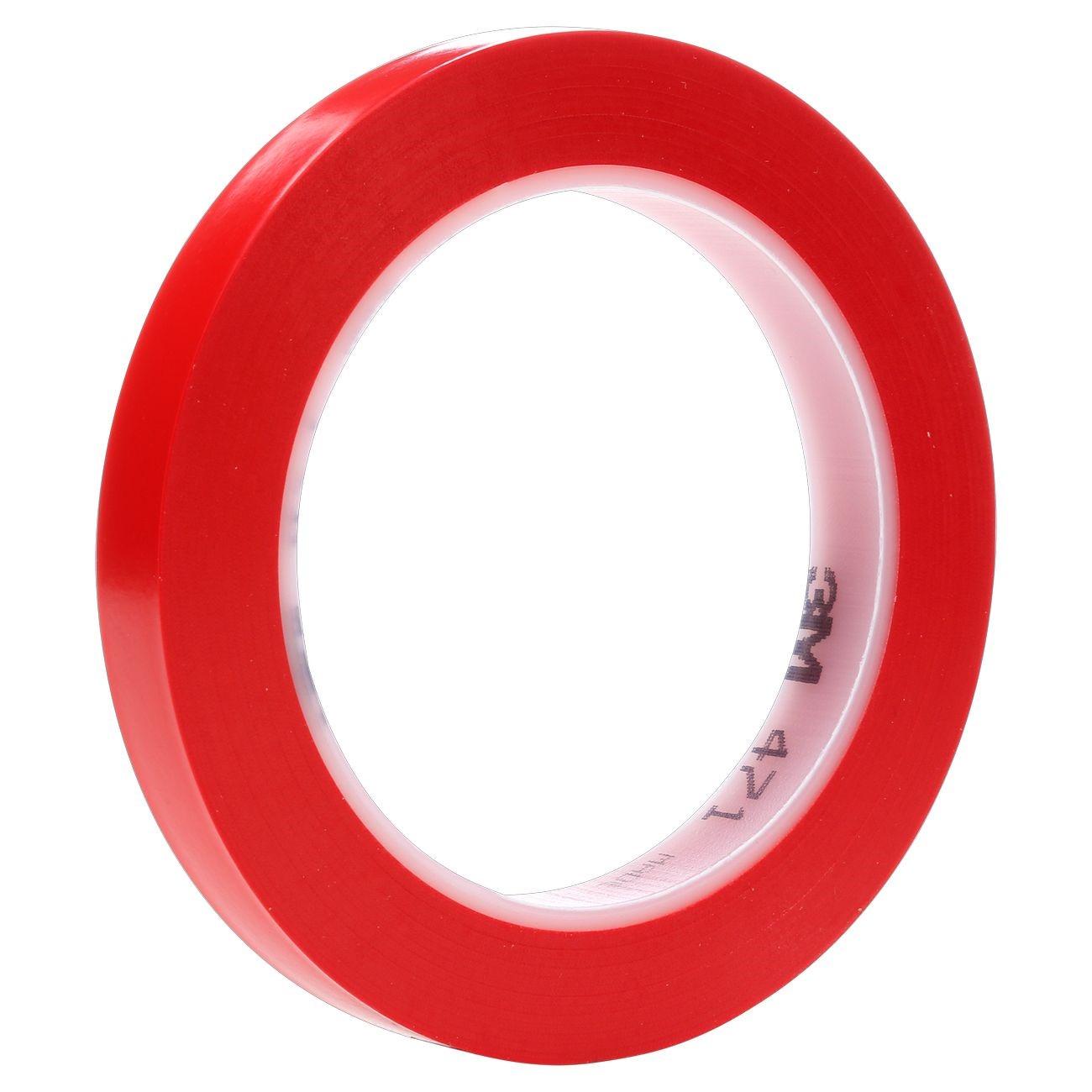

3M 7000148366 Vinyl Tape 471 Red 1/4in X 36yd 5.2 Mil

Product Description

The 3M 7000148366 is a red vinyl tape from the 471 series, featuring a 5.2 mil thick vinyl backing bonded to a rubber adhesive. It measures 1/4 inch wide and comes on a 36-yard roll. The vinyl construction provides conformable, dead-stretch properties that help produce straight, clean edges on curved or irregular surfaces. Color retention holds up under heavy abrasion, and the tape removes cleanly without leaving adhesive residue. Good solvent resistance makes it suitable for use in industrial and commercial environments where chemical exposure is common.

This tape is used across a wide range of trade and facility applications. Common uses include lane marking, safety marking, color coding, abrasion protection, and splicing. The narrow 1/4-inch width suits detail masking, pipe marking, and tight layout work. It conforms well to curved surfaces, making it practical for wrapping or sealing irregular shapes. Electricians, maintenance technicians, and facility service professionals regularly use 471-series tape for both temporary and semi-permanent marking tasks.

Key Features

• 5.2 mil vinyl backing with rubber adhesive for firm, conformable hold
• Dead-stretch properties help maintain straight lines on curves
• Color stays consistent under heavy abrasion conditions
• Removes cleanly without adhesive transfer or surface damage
• Good solvent resistance for industrial and maintenance environments
• 1/4-inch width suited for detail marking, coding, and masking work

Compatibility

Designed for general-purpose vinyl tape applications including lane and safety marking, color coding, masking, wrapping, sealing, abrasion protection, and splicing on curved or irregular surfaces.

Installation Notes

Surface should be clean, dry, and free of oils or dust before application for best adhesion. Apply with firm, even pressure along the tape edge to seat the adhesive and minimize air pockets. For lane or safety marking, allow the tape to relax into position before final pressing to take advantage of the dead-stretch properties. Remove at a low angle to preserve clean edges and avoid surface damage.

Technical Specifications

• Tape Thickness: 5.2 mil
• Width: 1/4 inch
• Length: 36 yards
• Backing Material: Vinyl
• Adhesive Type: Rubber
• Color: Red
• Unit of Measure: Roll
• Weight: 0.1 pounds
• UPC: 00021200051081

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7000148366
